LED Light Bars YLED

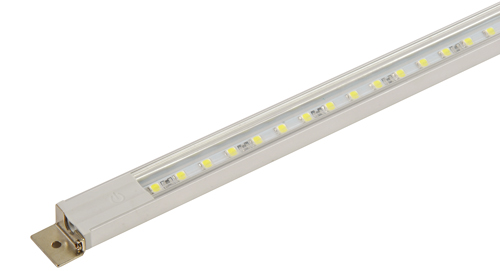

Halcon LED light bars offer endless possibilities for designing functional or decorative lighting. Linkable in continuous runs, LiteBars produce beautiful, even light with superior dimming performance. Ultra-compact and simple to mount, the bars can navigate the tightest corners and illuminate the smallest spaces with ease.

Mode: YLED

Size:12", 24", 36", 48", 60"

Watts:5W, 7W, 10W, 15W, 20W

Lumen:325 lm-1300 lm

CCT:2700K/3000K/3500K/4000K/5000K

Qualifications: ETL/CETL List, RoHS

Overview
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup • 0-10V dimming standard • CRI>80 • Single voltage 120V • -4°F to 122°F (-20°C to 50°C), except fixtures with EM option • Fixture may be surface mounted or pendant/Rod mounted (accessories sold separately)

Controls Features

• Daylight Sensor • Occupancy Sensor • Integral Sensor Receptacle • High-end Trim • Bluetooth

Accessories

SENSOR control, Linkable

Specification


YLED120 YLED240 YLED360 YLED480 YLED600
Size 12" 24" 36" 48" 60"
Nominal Wattage 5W 7W 10W 15W 20W
InputVoltage DC 5V, 24V DC 5V, 24V DC 5V, 24V DC 5V, 24V DC 5V, 24V
Lumen Delivered 325 lm 455 lm 650 lm 975 lm 1300 lm
Nominal Efficacy 65 lm/w 65 lm/w 65 lm/w 65 lm/w 65 lm/w
CCT 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
Dimming Triac Triac Triac Triac Triac
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 3 Years 3 Years 3 Years 3 Years 3 Years
