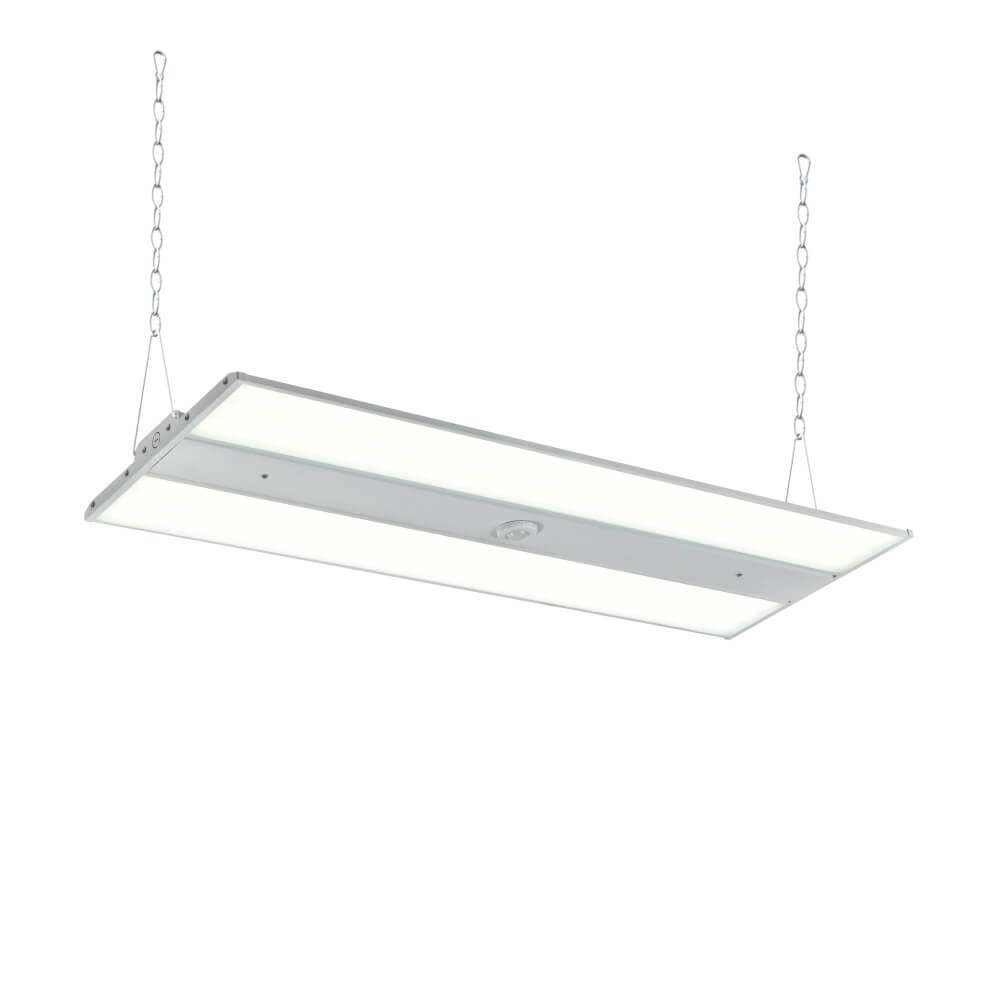

"Halcon slim Highbay Linear LED fixture with CCT and wattage selectable features for warehouses and big box retailers"
Halcon slim Highbay Linear LED light with customizable CCT and wattage for high ceiling industrial applications.
Wire guard for LED lighting fixture protection
LED fixture diagram with wire guard and Bluetooth sensor installation
LED lighting fixture with wire guard and Bluetooth sensor installation guide
halconlighting
"Halcon slim Highbay Linear LED fixture with CCT and wattage selectable features for warehouses and big box retailers"
Halcon slim Highbay Linear LED light with customizable CCT and wattage for high ceiling industrial applications.
Wire guard for LED lighting fixture protection
LED fixture diagram with wire guard and Bluetooth sensor installation
LED lighting fixture with wire guard and Bluetooth sensor installation guide

Linear High bay 80W 140W 165W 225W or 325W (10800 lumen-43875 lumen) Wattages & Color Selectable 4000K-5000K Universal Voltage 120 277V 0-10V dimming Bluetooth sensor emergency back up

l  80W-325W various wattage selectable,
l  135 LPW, comes in two lengths 2ft, 4ft
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l  Garage, workshop, warehouse, factory using



Mode: HG-L225C

Size:2ft, 4ft

Watts:80W, 100W, 140W, 165W, 225W, 325W

Lumen:10400 lm-42250 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Warranty: 5 years

Get A Quote
Overview
Use Cases
Comparison Chart
Video

Description

Halcon new slim High bay Linear can be customized with CCT selectable & wattage selectable, used for high ceiling applications such as warehouses, distribution centers, manufacturing facilities and big box retailers.
This high bay can be installed with Bluetooth sensor and emergency, it is DLC NLC qualified, making it attractive for large utility rebates.

Design and Installation

• Manufacturer：Halcon Lighting
• Fixture Type：LED Linear High bay lighting fixture
• Lead Time: Ships in 1-2 weeks
• Qualifications: DLC Standard/DLC Premium, ETL/CETL List
• Voltage: AC 120-277V, 120-347V
• CCT Adjustable: 3000K/3500K/4000K/5000K
• Dimmable: 0-10V dimming standard
• Size: 2ft, 4ft
• Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models

Controls Features
  • Daylight Sensor
  • Occupancy Sensor
  • Integral Sensor Receptacle
  • High-end Trim
  • Bluetooth

• Model: HG-L225C
• Warranty: 5 years
• Wattage Adjustable: 80 to 125Watts
• CRI(Color rendering index):>80
• Lumen output: 10400 - 21450 lm
• Light efficiency: 130 LP/W
• Mounting: Surface mount, Pendant/Rod mount (accessories sold separately)


Accessories

SENSOR control, Emergency kits, suspension kits.

Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Use Cases

halconlighting factory
halconlighting factory
halconlighting factory
halconlighting factory

Specification


HG-L225C-80W/2ft HG-L225C-100W/2ft HG-L225C-140W/2ft HG-L225C-165W/2ft HG-L225C-220W/2ft HG-L225C-165W/4ft HG-L225C-225W/4ft HG-L325W/4ft
Size 630x320x52.5mm 606x320x52.5mm 606x320x52.5mm 604x440x52.5mm 606x440x52.5mm 1165x320x52.5mm 1165x320x52.5mm 1165x440x52.5mm
Nominal Wattage 80W 100W 140W 165W 220W 165W 225W 325W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 10400 lm 13000 lm 18200 lm 21450 lm 28600 lm 29250 lm 42250 lm 42250 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years

Lighting FAQ

  1. Q: Is it CCT selectable and wattage selectable?
    A: Yes, our product offers both CCT and wattage selectable options for versatile usage.
  2. Q: Is it ETL and DLC listed?
    A: Absolutely, our troffer is both ETL and DLC listed, ensuring compliance with the highest standards.
  3. Q: Can this product be installed with emergency and dimming PIR Bluetooth sensor?
    A: Yes, it can be installed with both emergency backup and dimming PIR Bluetooth sensor.
  4. Q: Do you have stock in the USA?
    A: Yes, we maintain stock in the USA for quick delivery.
  5. Q: What’s the lead time?
    A:With our US stock, we can ensure 7-15 day lead times to meet your project requirements.
