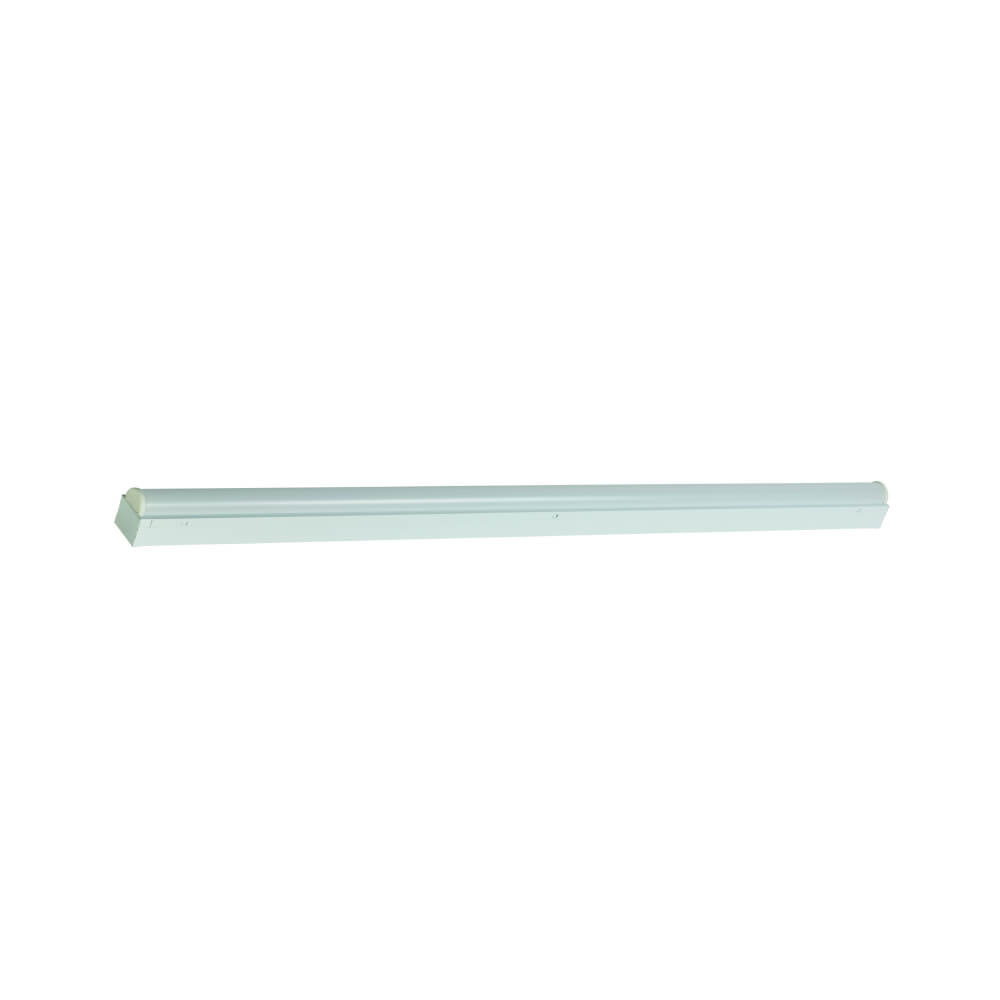

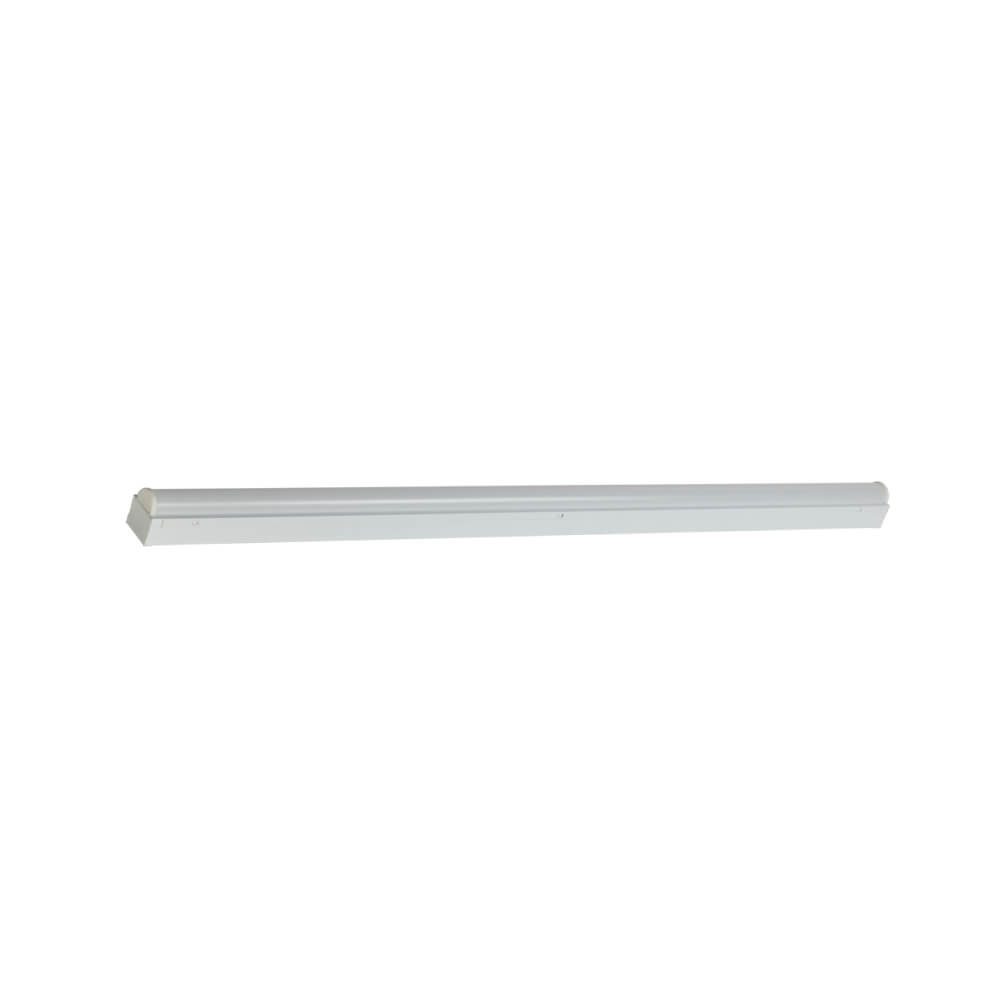

4-foot LED Slim Strip Light HG-L207 with field-selectable color temperatures and wattages suitable for commercial and residential use
4-foot LED Slim Strip Light HG-L207 with selectable wattage and color temperature for commercial lighting
Halcon LED Slim Strip Light HG-L207 with selectable color temperature and wattage for versatile commercial lighting
4-foot LED Slim Strip Light HG-L207 with selectable color temperatures and wattages suitable for commercial and residential lighting applications.
Halcon LED Slim Strip Light HG-L207 with selectable color temperatures and wattages for commercial and residential lighting.
halconlighting
4-foot LED Slim Strip Light HG-L207 with field-selectable color temperatures and wattages suitable for commercial and residential use
4-foot LED Slim Strip Light HG-L207 with selectable wattage and color temperature for commercial lighting
Halcon LED Slim Strip Light HG-L207 with selectable color temperature and wattage for versatile commercial lighting
4-foot LED Slim Strip Light HG-L207 with selectable color temperatures and wattages suitable for commercial and residential lighting applications.
Halcon LED Slim Strip Light HG-L207 with selectable color temperatures and wattages for commercial and residential lighting.

LED linear light strip diffuser 2ft 4ft 8ft LED Linear Strip Light Fixture wattage selectable CCT selectable 4 CCT 3000K-5000K Dimmable ETL & DLC Listed

The new generation of Linear Strips features field-selectable wattages, CCTs and field-installable controls. Offered in three sizes (2', 4' and 8'), with each providing nine combinations of color temperatures and wattages, as well as optional sensor controls. With its versatility and long life, Halcon new led strip can address a variety of commercial, industrial, retail and residential application needs, including storage/utility, workshop, task or general area lighting.

Mode: HG-L207

Size:2ft, 4ft, 5ft, 6ft, 8ft

Watts:15/20/25W, 20/25/40W, 55/60/65W, 50/65/80W

Lumen:2500 lm-10000 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


HG-L207-20W/2ft HG-L207-30W/4ft HG-L207-40W/5ft HG-L207-60W/5ft HG-L207-80W/6ft HG-L207-100W/8ft HG-L207-100W/8ft
Size 620x51.2x67.5mm 1188x51.2x67.5mm 1188x51.2x67.5mm 1488x51.2x67.5mm 1488x51.2x67.5mm 1788x51.2x67.5mm 2488x51.2x67.5mm
Nominal Wattage 20W 30W 40W 40W 60W 80W 100W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2600 lm 3900 lm 5200 lm 5200 lm 7800 lm 10400 lm 13000 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
