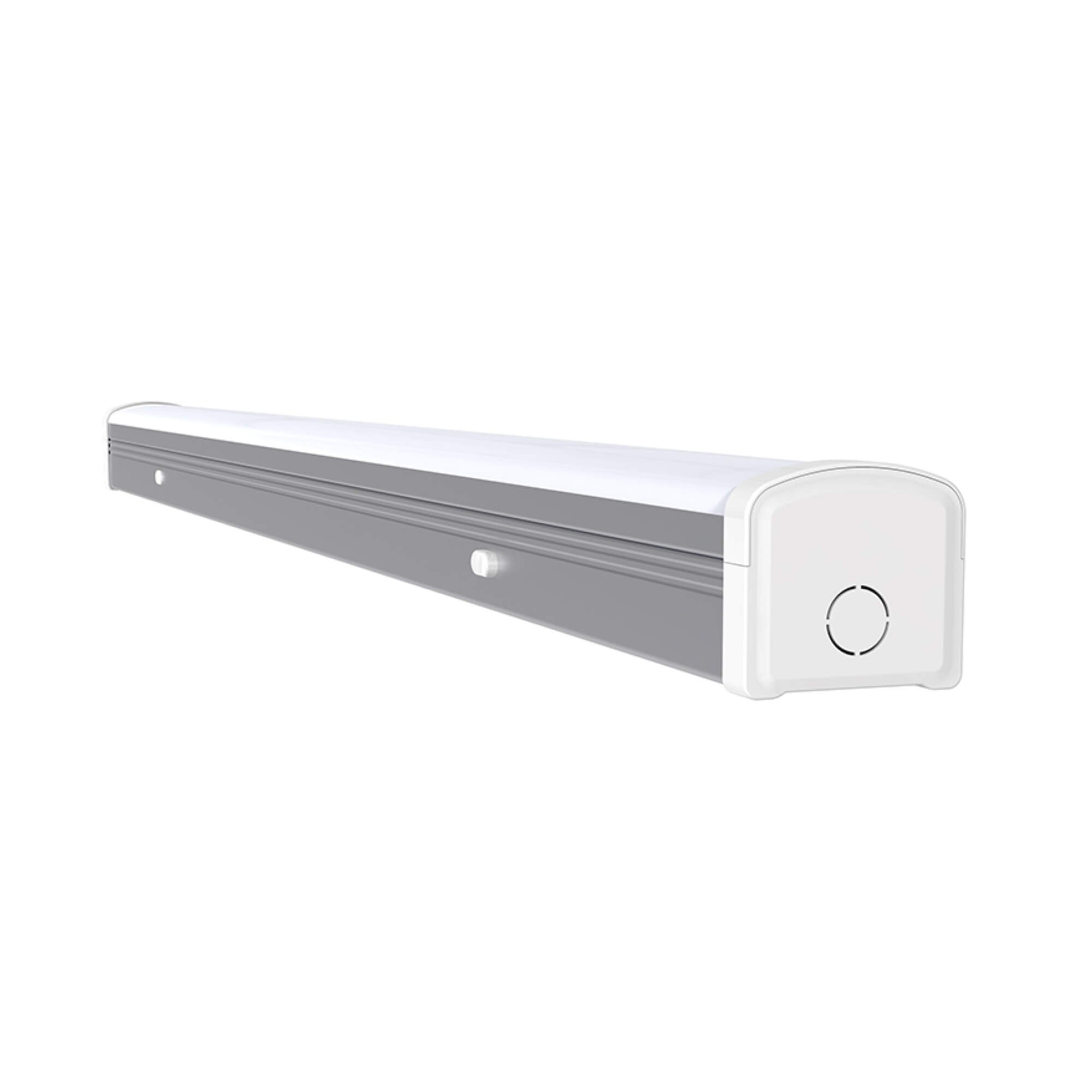

The new generation of Linear Strips features field-selectable wattages, CCTs and field-installable controls. Offered in three sizes (2', 4' and 8'), with each providing nine combinations of color temperatures and wattages, as well as optional sensor controls. With its versatility and long life, Halcon new led strip can address a variety of commercial, industrial, retail and residential application needs, including storage/utility, workshop, task or general area lighting.
l 20W-70W various wattage selectable,
l 125 LPW, comes in 2'x2', 2'x4', 1'x4'
l Bluetooth control ready
l Emergency back up compatibility
l DLC NLC qualified, attractive for large utility rebates
l Office, education, health care, hospitality and retail interiors
Mode: C2311
Size:2ft, 4ft, 8ft
Watts:15/20/25W, 20/25/40W, 55/60/65W, 50/65/80W
Lumen:3250 lm-8450 lm
CCT:3000K/3500K/4000K/5000K
Qualifications: DLC Standard/DLC Premium.
ETL/CETL List
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
SENSOR control, Emergency kits, suspension kits.
HG-L205C-252F | HG-L205C-404F | HG-L205C-658F | HG-L205C-858F | |
Size | 609x75x83mm | 1200x75x83mm | 2438x75x83mm | 2438x75x83mm |
Nominal Wattage | 15/20/25W | 20/25/40W | 55/60/65W | 55/60/65W |
InputVoltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
Lumen Delivered | 3250 lm | 5200 lm | 8450 lm | 8450 lm |
Nominal Efficacy | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w |
CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
CRI | >80 | >80 | >80 | >80 |
Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
Dimming | 0-10V | 0-10V | 0-10V | 0-10V |
Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
