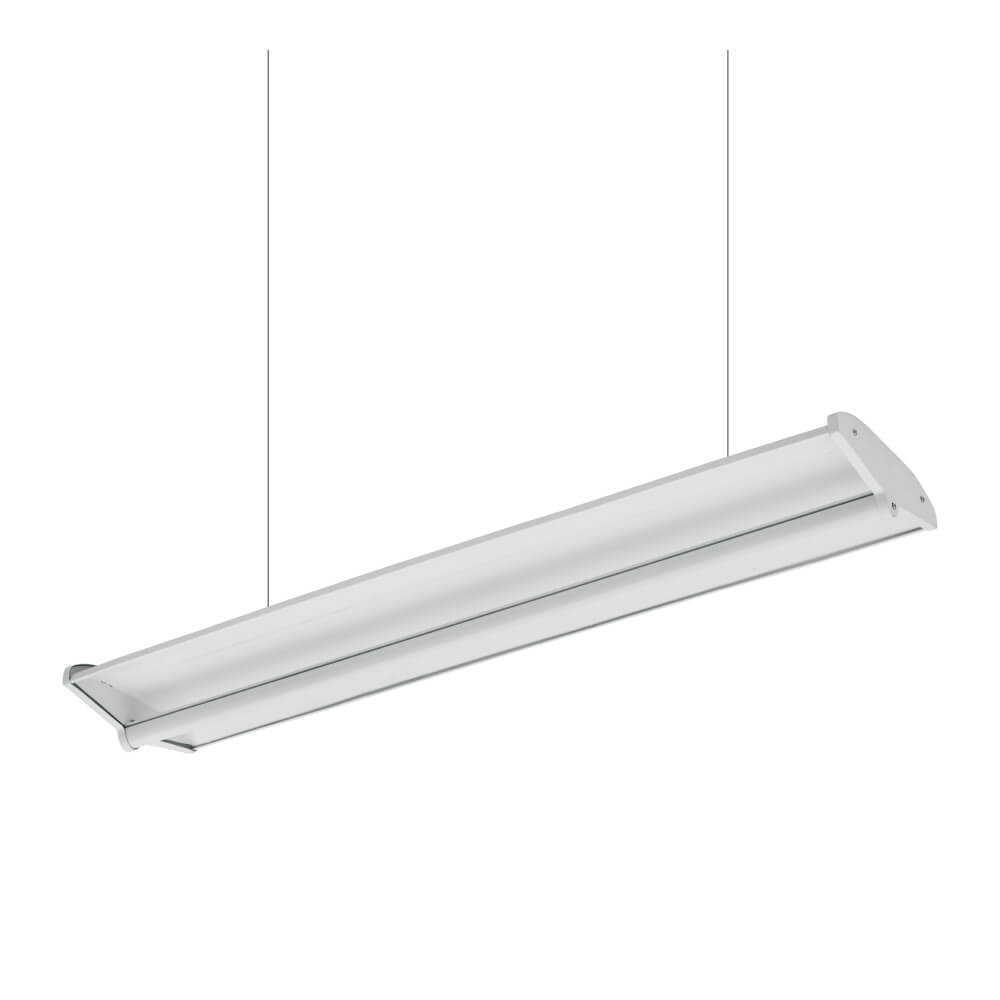

Suspended 1x4 LED pendant light HG-L208 with up and down illumination by Halcon Lighting, showing transparent design when off
Suspended 1'x4' LED Pendant Light Up/Down HG-L208 by Halcon Lighting with indirect and direct lighting capabilities
Suspended 1'x4' LED Pendant Direct/Indirect Light Fixture by Halcon Lighting with Sensor Control and Emergency Backup Option
1x4 LED Pendant Light Up/Down HG-L208 by Halcon Lighting with selectable CCT and wattage features for commercial lighting
1x4 suspended LED Pendant Light HG-L208 with direct/indirect up/down illumination for commercial lighting
halconlighting
Suspended 1x4 LED pendant light HG-L208 with up and down illumination by Halcon Lighting, showing transparent design when off
Suspended 1'x4' LED Pendant Light Up/Down HG-L208 by Halcon Lighting with indirect and direct lighting capabilities
Suspended 1'x4' LED Pendant Direct/Indirect Light Fixture by Halcon Lighting with Sensor Control and Emergency Backup Option
1x4 LED Pendant Light Up/Down HG-L208 by Halcon Lighting with selectable CCT and wattage features for commercial lighting
1x4 suspended LED Pendant Light HG-L208 with direct/indirect up/down illumination for commercial lighting

Led Pendant Light model Dimmable Light Fixture Remote Height Adjustable Ceiling Lamp wattage selectable 20W-80W CCT selectable 3000K to 5000K 120-277V 0-10V dimming

The Direct/indirect up/down pendant by Halcon Lighting is a unique product offering which provides the direct surfaces below and the ambient area above the fixture. The fixture provides both functional light and a design statement to any space where it is utilized. The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on. The 1'x4' suspended Direct/Indirect pendant is a commercial lighting fixture utilizing an advanced LED optical system to achieve superior performance. it features field-CCT selectable & wattage selectable, sensor control ready, emergency back up option.

Mode: HG-L208

Size: 2ft, 4ft, 5ft, 8ft

Watts:20/25/40W, 40W/50W/60W, 50W/60W/70W, 80W/90W/100W

Lumen:2300 lm-11500 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


HG-L208-402F HG-L208-604F HG-L208-705F HG-L208-1008F
Size 580x295x12.4mm 580x295x12.4mm 1180x295x12.4mm 1180x295x12.4mm
Nominal Wattage 20/25/40W 30W/40W/50W 50W/60W/70W 80W/90W/100W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4800 lm 6000 lm 8400 lm 1200 lm
Nominal Efficacy 120 lm/w 120 lm/w 120 lm/w 120 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years
