"LED Linear High Bay light from Halcon Lighting with CCT and Wattage Selectable features, ideal for industrial applications"
Halcon Lighting LED Linear High Bay light with selectable CCT and wattage, adjustable lumen technology for industrial applications.
"HG-L225 LED Linear High Bay with CCT and Wattage Selectable features for industrial lighting installation"
Halcon Lighting LED Linear High Bay Lights with Adjustable CCT and Wattage for Industrial Applications
halconlighting
"LED Linear High Bay light from Halcon Lighting with CCT and Wattage Selectable features, ideal for industrial applications"
Halcon Lighting LED Linear High Bay light with selectable CCT and wattage, adjustable lumen technology for industrial applications.
"HG-L225 LED Linear High Bay with CCT and Wattage Selectable features for industrial lighting installation"
Halcon Lighting LED Linear High Bay Lights with Adjustable CCT and Wattage for Industrial Applications

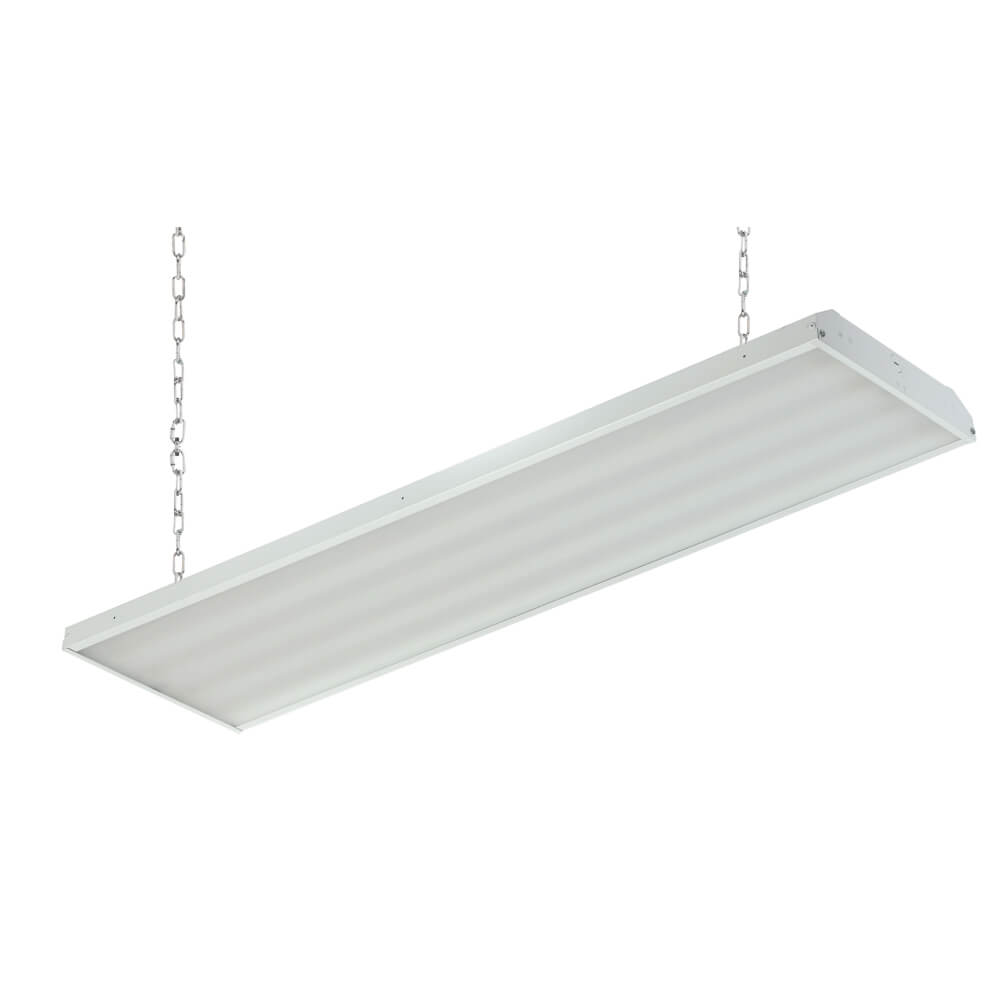

LED Linear High Bay Light 80W-325W 10800 lumen-43875 lumen Compatible with Industrial 120-277V 0-10V dimming PIR sensor emergency control ready

The Linear LED High Bay from Halcon Lighting provides high-performance luminaires for industrial applications. This is making it easier and quicker to install. Built with quality to last and performance to get the job done. Available Switchable White and Adjustable Lumen Technology.

l  80W-325W various wattage selectable,
l  135 LPW, comes in two lengths 2ft, 4ft
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l  Garage, workshop, warehouse, factory using

Mode: HG-L225

Size: 2ft, 4ft

Watts:80W, 100W, 140W, 165W, 225W, 325W

Lumen:10400 lm-42250 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Use Cases
Comparison Chart
Video

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Use Cases

halconlighting factory
halconlighting factory
halconlighting factory

Specification


HG-L225-80W/2ft HG-L225-100W/2ft HG-L225-140W/2ft HG-L225-165W/2ft HG-L225-220W/2ft HG-L225-165W/4ft HG-L225-225W/4ft HG-L325W/4ft
Size 630x320x52.5mm 606x320x52.5mm 606x320x52.5mm 604x440x52.5mm 606x440x52.5mm 1165x320x52.5mm 1165x320x52.5mm 1165x440x52.5mm
Nominal Wattage 80W 100W 140W 165W 220W 165W 225W 325W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 10400 lm 13000 lm 18200 lm 21450 lm 28600 lm 29250 lm 42250 lm 42250 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
