halconlighting

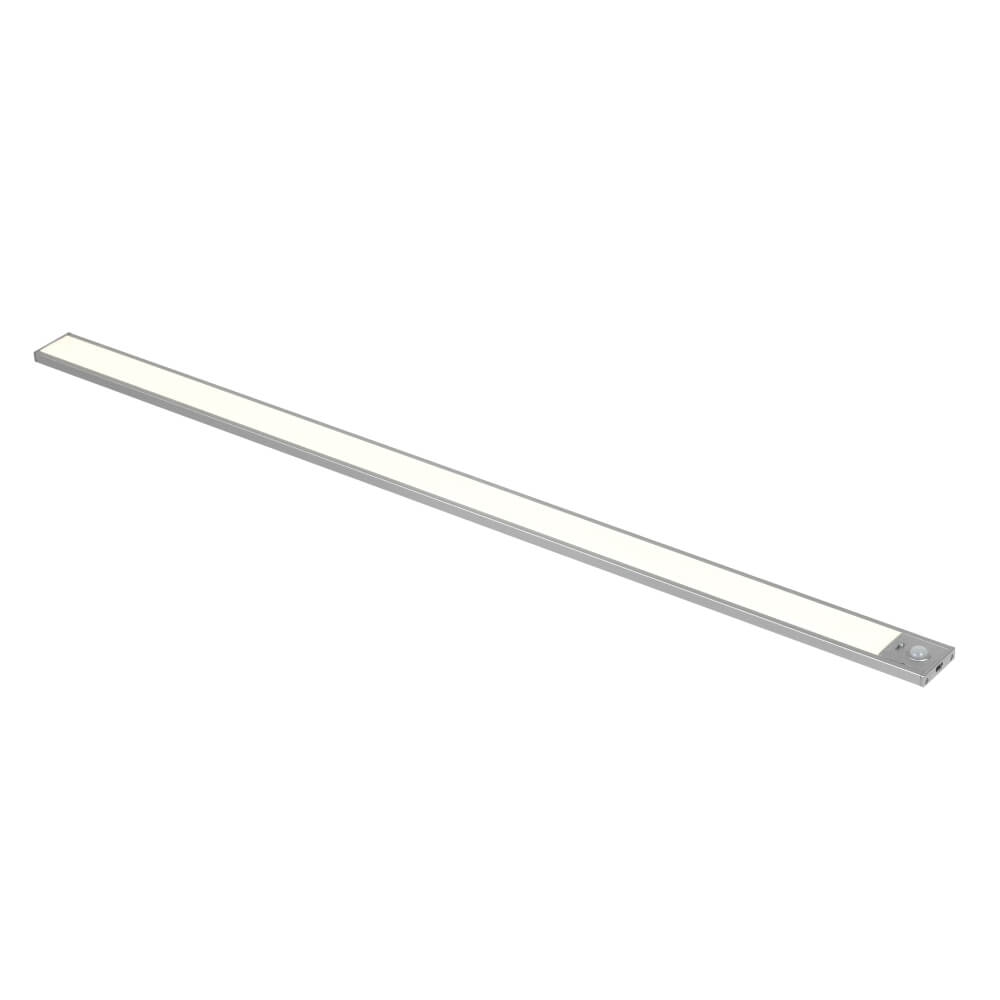

LED Light Bars W2008

Halcon LED light bars offer endless possibilities for designing functional or decorative lighting, sensor control ready with battery, portable lightbars produce beautiful, even light with superior dimming performance. Ultra-compact and simple to mount, the bars can navigate the tightest corners and illuminate the smallest spaces with ease.

Mode: W2008

Size:5", 10", 16", 24", 31", 39"

Watts:1W, 2W, 3W, 4W, 5W, 6W

Lumen:65 lm-390 lm

CCT:2700K/3000K/3500K/4000K/5000K

Qualifications: ETL/CETL List, RoHS

Overview
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup • 0-10V dimming standard • CRI>80 • Single voltage 120V • -4°F to 122°F (-20°C to 50°C), except fixtures with EM option • Fixture may be surface mounted or pendant/Rod mounted (accessories sold separately)

Controls Features

• Daylight Sensor • Occupancy Sensor • Integral Sensor Receptacle • High-end Trim • Bluetooth

Accessories

SENSOR control

Specification


  • W2008-125

    W2008-245

    W2008-400

    W2008-600

    W2008-800

    W2008-1000

  • Size 5" 10" 16" 24" 31" 39"
  • Nominal Wattage 1W 2W 3W 4W 5W 6W
  • InputVoltage DC 5V, 24V DC 5V, 24V DC 5V, 24V DC 5V, 24V DC 5V, 24V DC 5V, 24V
  • Lumen Delivered 65 lm 130 lm 195 lm 260 lm 325 lm 390 lm
  • Nominal Efficacy 65 lm/w 65 lm/w 65 lm/w 65 lm/w 65 lm/w 65 lm/w
  • CCT 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K
  • CRI >80 >80 >80 >80 >80 >80
  • Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
  • Dimming Triac Triac Triac Triac Triac Triac
  • Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
  • Warranty 3 Years 3 Years 3 Years 3 Years 3 Years 3 Years
