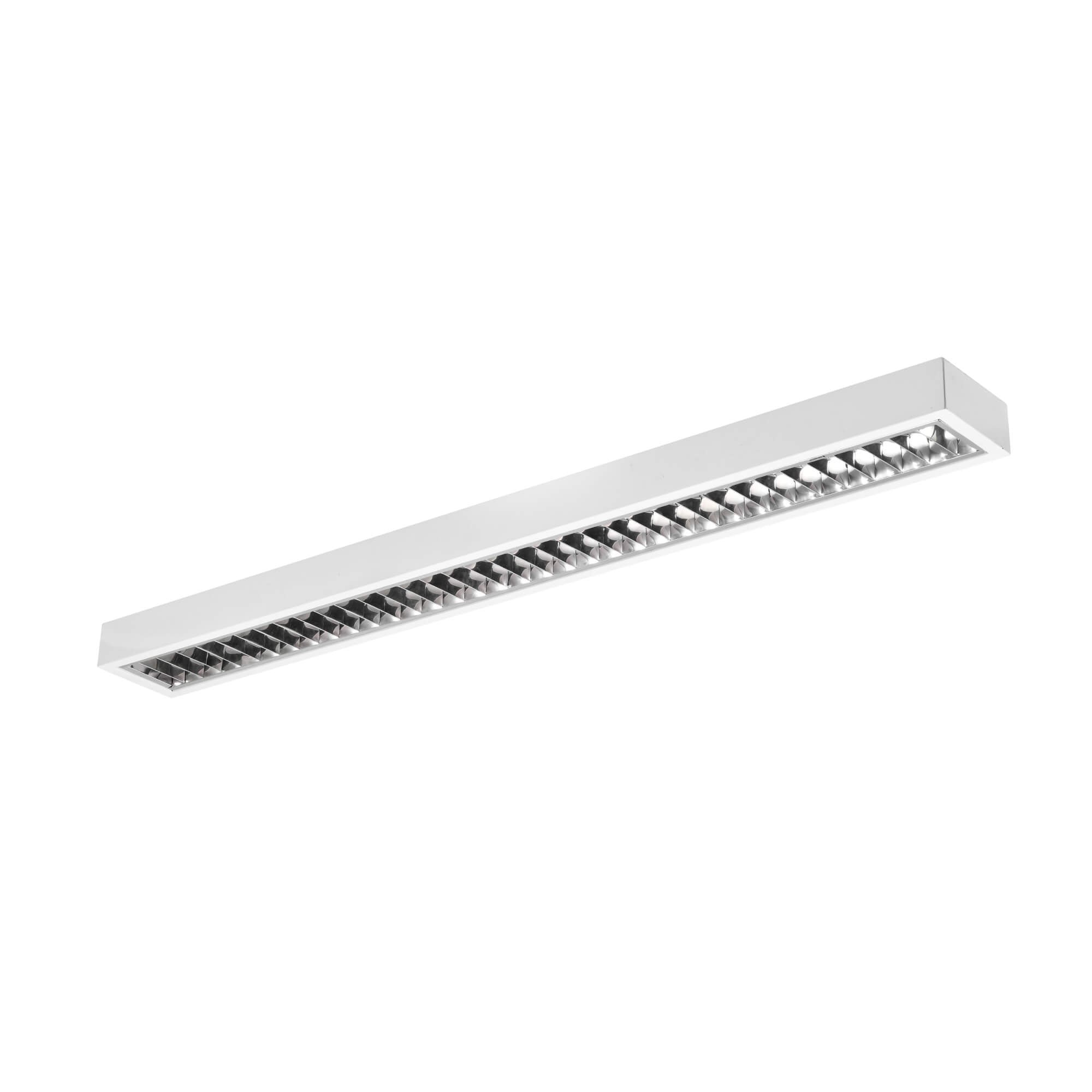

LED Linear Light model C2309 with Louvre Lens and inter-connectable lengths for continuous lighting system installation.
LED Linear Light C2309 with Louvre Lens and Plug & Play Connectors for Seamless Continuous Lighting System
halconlighting
LED Linear Light model C2309 with Louvre Lens and inter-connectable lengths for continuous lighting system installation.
LED Linear Light C2309 with Louvre Lens and Plug & Play Connectors for Seamless Continuous Lighting System

linear light grille louver lens CCT and watt selectable 3000K-5000K (5400 lumen-11475 lumen), 120-277V 0-10V Dimmable ETL DLC listed emergency back and Bluetooth sensor technology

3 Inter-Connectable Lengths Available - 498mm, 1167mm, 2330mm Multiple Adaptors & Connectors Available to create a Seamless Continuous Lighting System Plug & Play Connectors for Easy Installation Louvre Lens

Mode: C2309

Size:2ft, 4ft, 8ft

Watts:20W, 30W, 40W, 60W, 80W


Lumen:2340 lm-11050 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Use Cases
Comparison Chart

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Use Cases

halconlighting Meeting Room
halconlighting Office
halconlighting Office

Specification


HG-L206R-182F HG-L206R-244F HG-L206R-638F HG-L206R-858F HG-L206R-858F
Size 606x115x91mm 1206x115x91mm 2438x115x91mm 2438x115x91mm 2438x115x91mm
Nominal Wattage 18W/24W 24W/40W 63W/83W 63W/83W 63W/83W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2340 lm 3120 lm 5200 lm 8190 lm 11050 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
