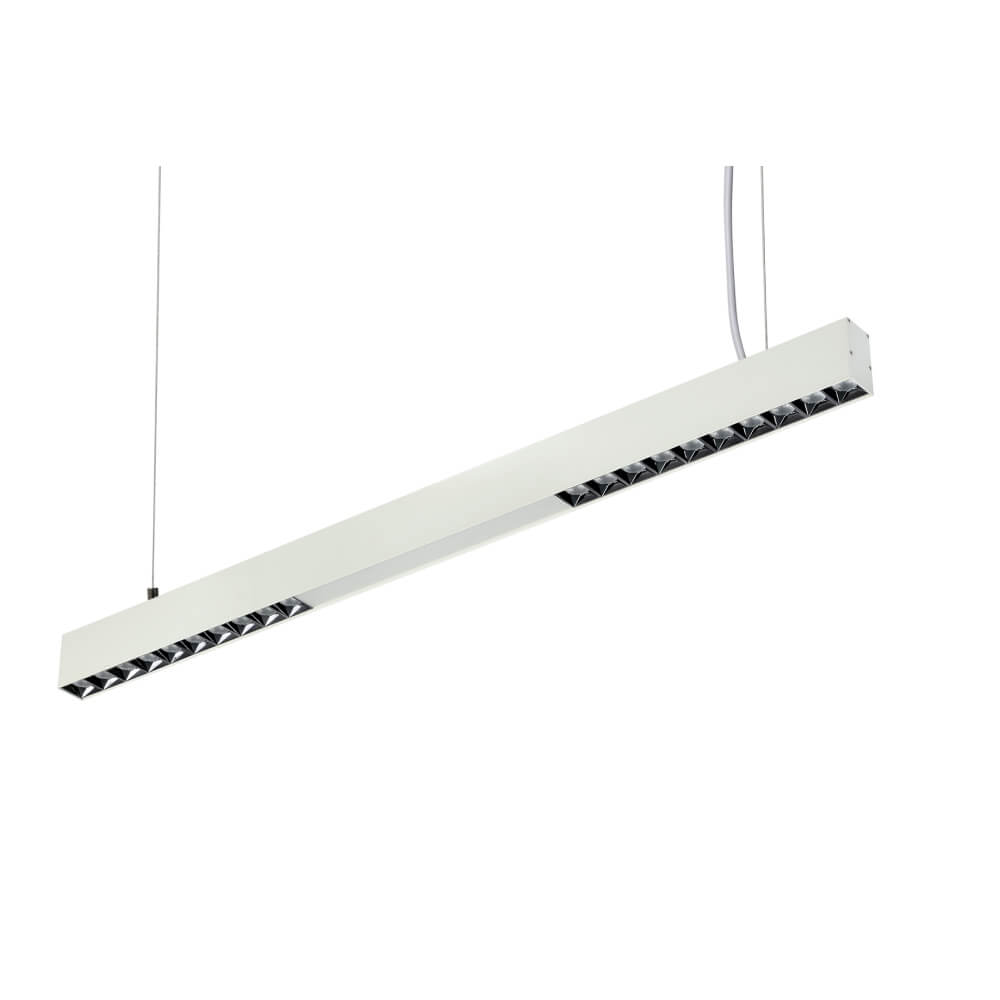

LED Pendant Light Up/Down P2001B

The Direct/indirect up/down pendant by Halcon Lighting is a unique product offering which provides the direct surfaces below and the ambient area above the fixture. The fixture provides both functional light and a design statement to any space where it is utilized. The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on. The 1'x4' suspended Direct/Indirect pendant is a commercial lighting fixture utilizing an advanced LED optical system to achieve superior performance. it features field-CCT selectable & wattage selectable, sensor control ready, emergency back up option.

Mode: P2001B

Size: 2ft, 4ft, 5ft, 8ft

Watts:20/25/40W, 40W/50W/60W, 50W/60W/70W, 80W/90W/100W

Lumen:2300 lm-11500 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium. ETL/CETL List

Overview
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup • 0-10V dimming standard • CRI>80 • Universal voltage 120-277V • -4°F to 122°F (-20°C to 50°C), except fixtures with EM option • Fixture may be surface mounted or pendant/Rod mounted (accessories sold separately)

Controls Features

• Daylight Sensor • Occupancy Sensor • Integral Sensor Receptacle • High-end Trim • Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


  • P1832-402F

    P1832-604F

    P1832-705F

    P1832-1008F

  • Size 573x43x75mm 1206x43x75mm 1506x43x75mm 2445x43x75mm
  • Nominal Wattage 20/25/40W 40W/50W/60W 50W/60W/70W 80W/90W/100W
  • InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
  • Lumen Delivered 4600 lm 6900 lm 8050 lm 11500 lm
  • Nominal Efficacy 115 lm/w 115 lm/w 115 lm/w 115 lm/w
  • CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
  • CRI >80 >80 >80 >80
  • Power Factor >0.9 >0.9 >0.9 >0.9
  • Dimming 0-10V 0-10V 0-10V 0-10V
  • Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
  • Warranty 5 Years 5 Years 5 Years 5 Years
