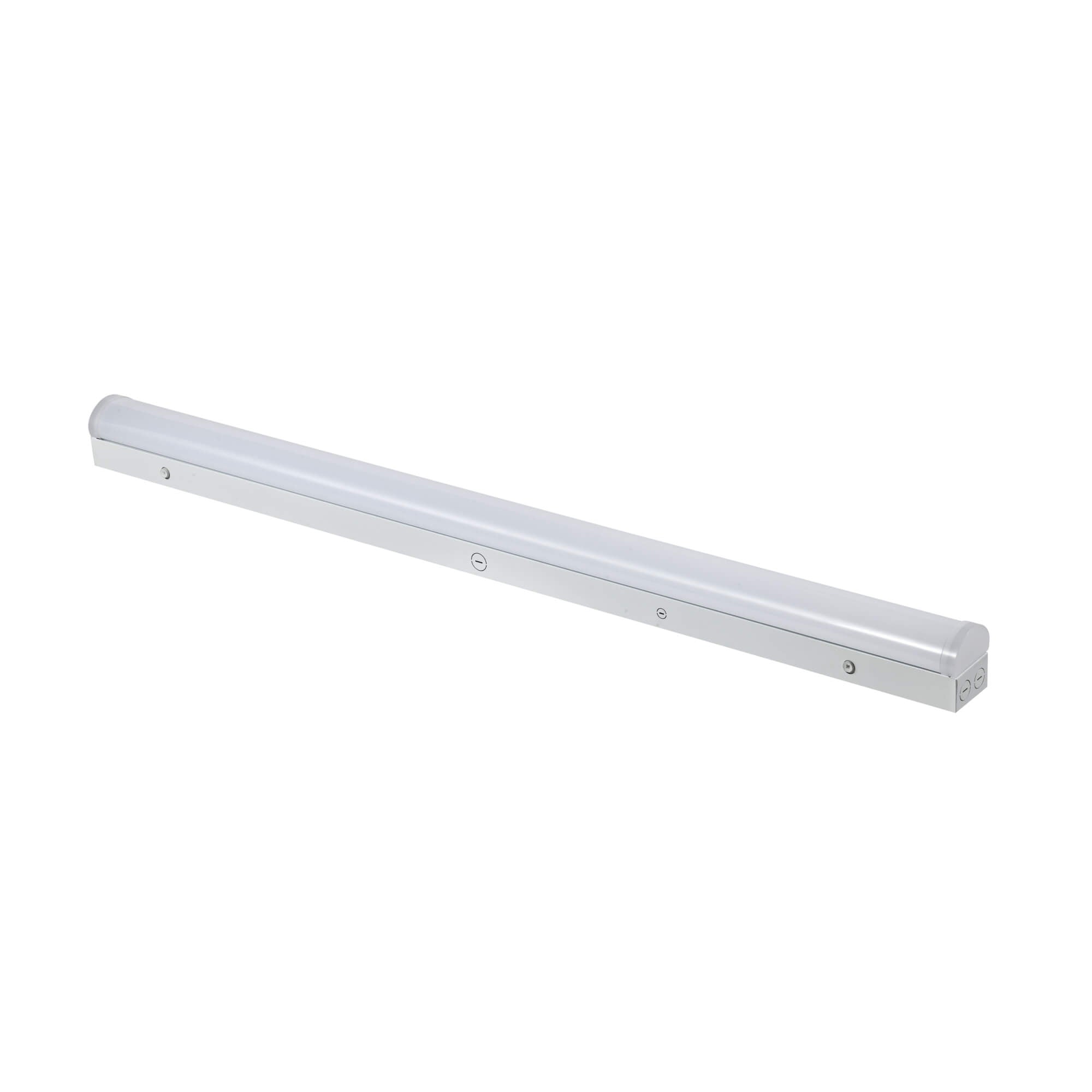

LED Economic Strip Light HG-L205C

The new generation of Linear Strips features field-selectable wattages, CCTs and field-installable controls. Offered in three sizes (2', 4' and 8'), with each providing nine combinations of color temperatures and wattages, as well as optional sensor controls.With its versatility and long life, Halcon new led strip can address a variety of commercial, industrial, retail and residential application needs, including storage/utility, workshop, task or general area lighting.

Mode: HG-L205C

Size:2ft, 4ft, 8ft

Watts:15/20/25W, 20/25/40W, 55/60/65W, 50/65/80W

Lumen:3250 lm-8450 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium. ETL/CETL List

Overview
Use Cases
Specification
Video

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup • 0-10V dimming standard • CRI>80 • Universal voltage 120-277V • -4°F to 122°F (-20°C to 50°C), except fixtures with EM option • Fixture may be surface mounted or pendant/Rod mounted (accessories sold separately)

Controls Features

• Daylight Sensor • Occupancy Sensor • Integral Sensor Receptacle • High-end Trim • Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Use Cases

halconlighting Office Unit

Specification


  • HG-L205C-252F

    HG-L205C-404F

    HG-L205C-658F

    HG-L205C-858F

  • Size 609x75x83mm 1200x75x83mm 2438x75x83mm 2438x75x83mm
  • Nominal Wattage 15/20/25W 20/25/40W 55/60/65W 55/60/65W
  • InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
  • Lumen Delivered 3250 lm 5200 lm 8450 lm 8450 lm
  • Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w
  • CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
  • CRI >80 >80 >80 >80
  • Power Factor >0.9 >0.9 >0.9 >0.9
  • Dimming 0-10V 0-10V 0-10V 0-10V
  • Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
  • Warranty 5 Years 5 Years 5 Years 5 Years
