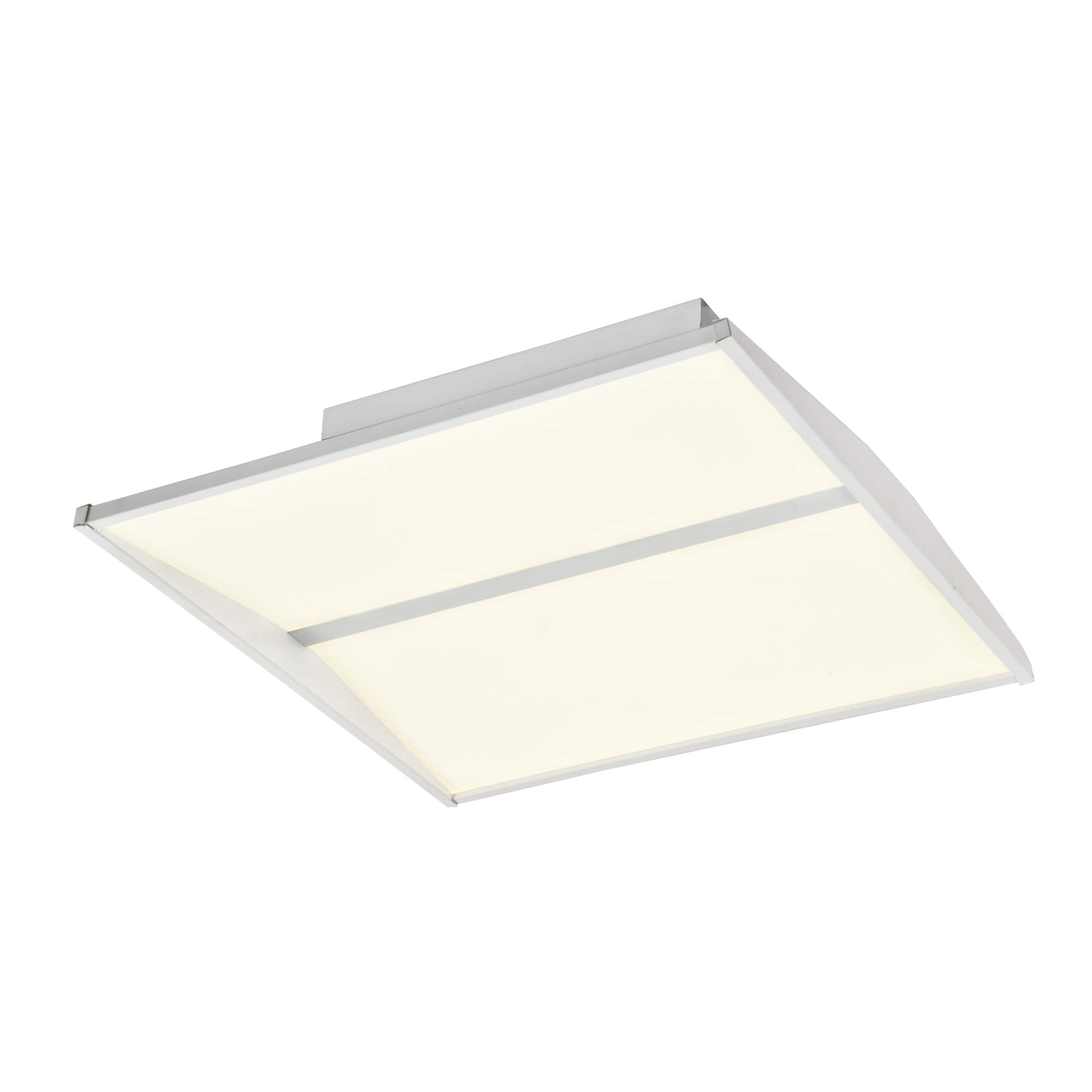

Halcon Indirect LED Troffer Light E2106 with Bluetooth Sensor and Emergency Control for energy-efficient commercial lighting solutions.
Halcon Indirect LED Troffer Light E2106 with Bluetooth Sensor and Emergency Control for commercial lighting installation
Architectural recessed Halcon Indirect LED Troffer Light with Bluetooth sensor and emergency control for energy-efficient lighting in commercial spaces
halconlighting

LED backlit architectural model troffer 2x2 2x4 1x4 up to 6000 lumen ETL listed 120-277V 0-10V dimming emergency sensor control ready

The Halcon Indirect Troffer is an architectural recessed luminaire that combines high efficiency LEDs with high-performance reflective material to emit voluminous, visually comfortable light. to generate energy savings beyond LED conversion through motion sensing, daylight harvesting, bi-level dimming and other energy-saving functions. A great choice for any location in which you need powerful lighting to a large area. This type of lighting offers a concentrated light source and an attractive look making it ideal for nearly any commercial or residential application.

l  20W-70W various wattage selectable,
l  125 LPW, comes in 2'x2', 2'x4', 1'x4'
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l  O
ffice, education, health care, hospitality and retail interiors

Mode: E2106

Size:2'x2', 2'x4'

Watts:24W/35W/40W, 30W/35W/40W/50W

Lumen:4600 lm-5750 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Overview
Specification
Video

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


E2106-22 E2106-24
Size 603x603x50mm 1213x603x50mm
Nominal Wattage 24W/35W/40W 30W/35W/40W/50W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4600 lm 5750 lm
Nominal Efficacy 115 lm/w 115 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80
Power Factor >0.9 >0.9
Dimming 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years
