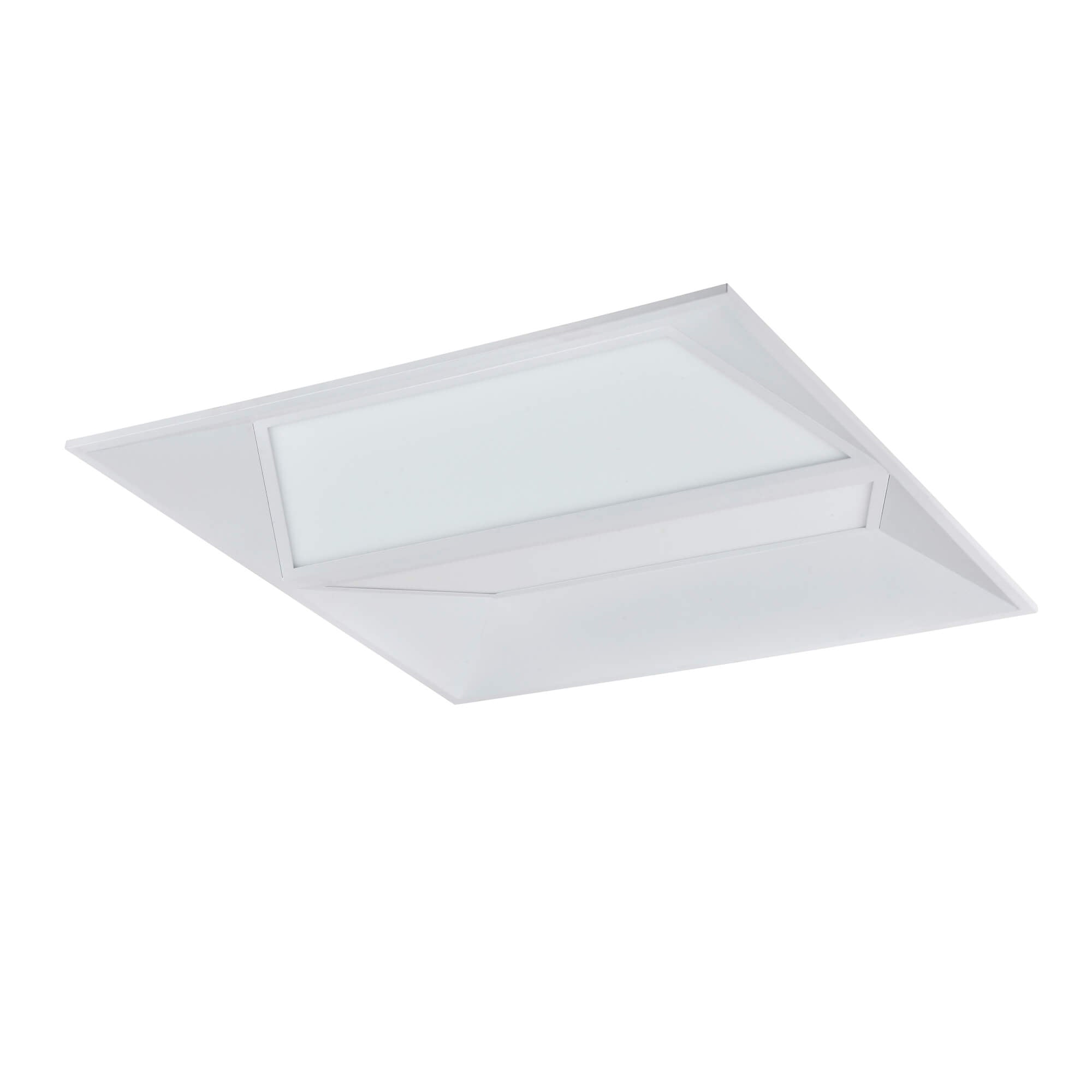

Halcon Indirect LED Troffer Light E1805 for efficient, high-performance commercial lighting
Halcon Indirect LED Troffer Light E1805 for commercial lighting with high-performance reflective material.
Halcon Indirect LED Troffer Light E1805 for efficient, architectural recessed lighting in commercial spaces
halconlighting
Halcon Indirect LED Troffer Light E1805 for efficient, high-performance commercial lighting
Halcon Indirect LED Troffer Light E1805 for commercial lighting with high-performance reflective material.
Halcon Indirect LED Troffer Light E1805 for efficient, architectural recessed lighting in commercial spaces

Modern architectural led EdgeLit troffer 20W/30W/40W/50W Wattage Tunable CCT Tunable 3000K to 5000K Emergency back and sensor control ready

The Halcon Indirect Troffer is an architectural recessed luminaire that combines high-efficiency LEDs with high-performance reflective material to emit voluminous, visually comfortable light. to generate energy savings beyond LED conversion through motion sensing, daylight harvesting, bi-level dimming, and other energy-saving functions. A great choice for any location in which you need powerful lighting in a large area. This type of lighting offers a concentrated light source and an attractive look making it ideal for nearly any commercial or residential application.

l 20W-50W various wattage selectable,
l 125 LPW, comes in 2'x2', 2'x4', 1'x4'
l Bluetooth control ready
l Emergency back up compatibility
l DLC NLC qualified, attractive for large utility rebates
l Office, education, health care, hospitality and retail interiors

Mode: E1805

Size:2'x2', 2'x4'

Watts:50W/42W, 36W/24W

Lumen:2760 lm-5750 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


HG-L208T-22 HG-L208T-24
Size 603x603x65mm 1213x603x65mm
Nominal Wattage 50W/42W 36W/24W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2760 lm 5750 lm
Nominal Efficacy 115 lm/w 115 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80
Power Factor >0.9 >0.9
Dimming 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years
