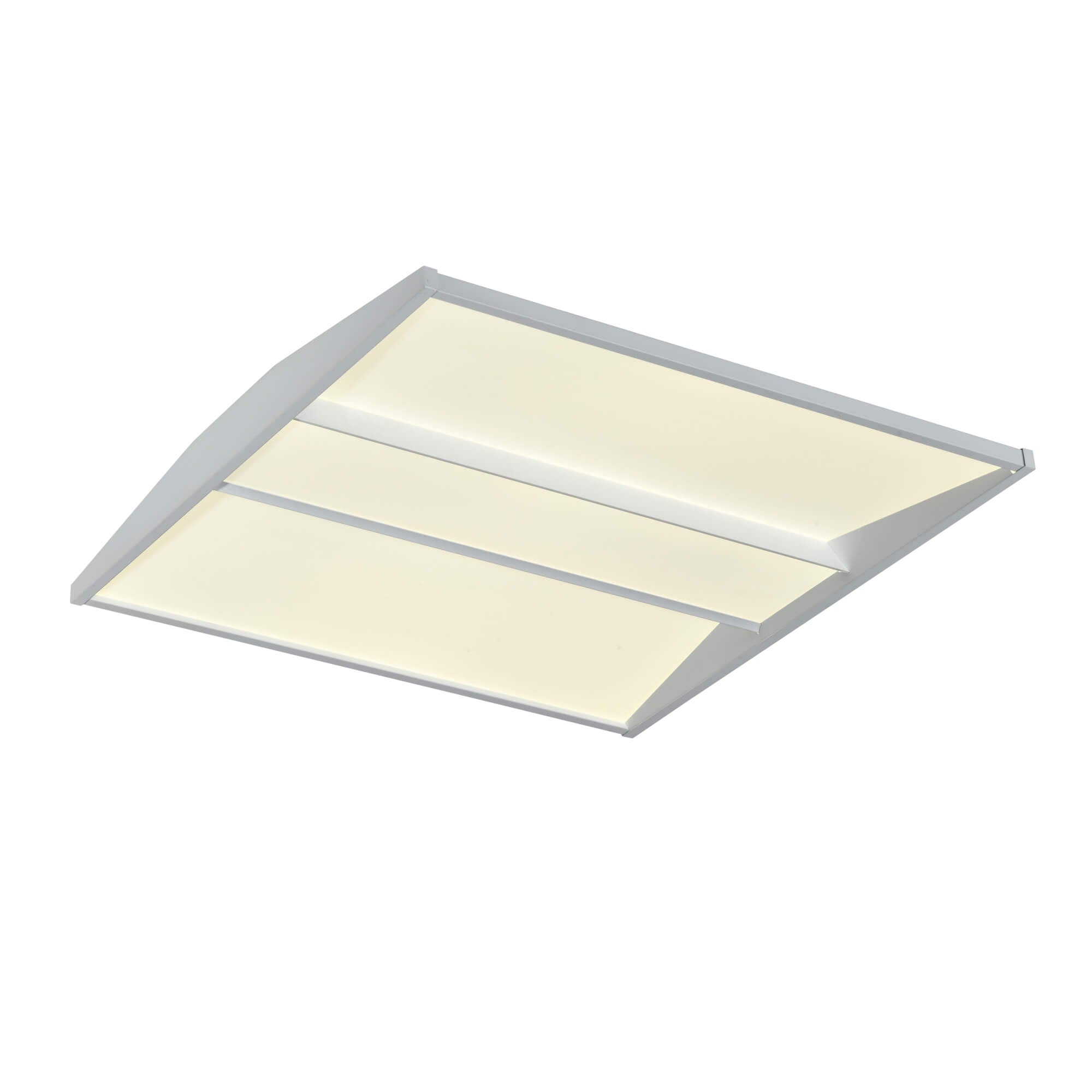

Halcon Indirect LED Troffer Light model E2102 with CCT and Wattage Selectable features for energy-efficient, visually comfortable commercial lighting.
Architectural recessed Halcon Indirect LED Troffer Light E2102 with selectable CCT and wattage for commercial lighting
halconlighting
Halcon Indirect LED Troffer Light model E2102 with CCT and Wattage Selectable features for energy-efficient, visually comfortable commercial lighting.
LED architectural edgelit troffer 20W-50W Wattage and CCT selectable 3000K/3500K/4000K/5000K emergency back up and bluetooth sensor ETL DLC listed
LED architectural edgelit troffer 20W-50W Wattage and CCT selectable 3000K/3500K/4000K/5000K emergency back up and bluetooth sensor ETL DLC listed
LED architectural edgelit troffer 20W-50W Wattage and CCT selectable 3000K/3500K/4000K/5000K emergency back up and bluetooth sensor ETL DLC listed
LED architectural edgelit troffer 20W-50W Wattage and CCT selectable 3000K/3500K/4000K/5000K emergency back up and bluetooth sensor ETL DLC listed
LED architectural edgelit troffer 20W-50W Wattage and CCT selectable 3000K/3500K/4000K/5000K emergency back up and bluetooth sensor ETL DLC listed
Architectural recessed Halcon Indirect LED Troffer Light E2102 with selectable CCT and wattage for commercial lighting

LED architectural edgelit troffer 20W-50W Wattage and CCT selectable 3000K/3500K/4000K/5000K emergency back up and bluetooth sensor ETL DLC listed

  • Power selection:20W-50W, multiple power options
  • Versatile Color selection and Lumen adjustment for optimallighting customization
  • Light efficiency: 115 LPW
  • Size: comes in 2’x2’, 2’x4’,1’x4’
  • Bluetooth control ready
  • Emergency back up compatibility
  • DLC NLC qualified, attractive for large utility rebates
  • Office, education, health care, hospitality and retail interiors

Mode: E2102

Size:2'x2', 2'x4'

Watts:24W/35W/40W, 30W/35W/40W/50W

Lumen:4600 lm-5750 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Specification

Description

The Halcon lndirect Trofer is an architectural recessed luminaire that combines high-eficiency LEDs with high-performance refiective material to emit voluminous,visually comfortable ight. This luminaire not only saves energy through LED conversion but also incorporates advanced energy-saving features such as motionsensing,daylight harvesting,and bi-level dimming.
It's an excelent choice forlocations requiring powerfulighting over large areas, providing both concentrated ight and an atractive appearance, making it ideal for nearly any commercial or residential application.

Specification

• Manufacturer： Halcon Lighting
• Fixture Type：LED Troffer lighting fixture
• Lead Time: Ships in 1-2 weeks
• Qualifications: DLC Standard/DLC Premium, ETL/CETL List
• Voltage: Universal voltage 120-277V
• CCT Adjustable: 3000K/3500K/4000K/5000K
• Dimmable: 0-10V dimming standard
• Size: 2'x2', 2'x4', 1'x4'
• Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models

Controls Features

  • Daylight Sensor
  • Occupancy Sensor
  • Integral Sensor Receptacle
  • High-end Trim
  • Bluetooth

• Model: E2102
• Size: 2'x2', 2'x4'
• Warranty: 5 years
• Wattage Adjustable: 24 to 40Watts / 30 to 50Watts
• CRI(Color rendering index):>80
• Lumen output: 4600 lm-5750 lm
• Light efficiency: 115 LP/W
• Aluminum body structure available in White finish
• Mounting: Surface mount, Pendant/Rod mount (accessories sold separately)

Accessories
SENSOR control, Emergency kits, suspension kits.
Design and Installation
Faster installation and cleanup
Available Switchable Color and Adjustable Lumen Technology.

Comparison Chart


E2102-22 E2102-24
Size 603x603x50mm 1213x603x50mm
Nominal Wattage 24W/35W/40W 30W/35W/40W/50W
Input Voltage AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4600 lm 5750 lm
Nominal Efficacy 115 lm/w 115 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80
Power Factor >0.9 >0.9
Dimming 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years

Lighting FAQ

  1. Q: Is it CCT selectable and wattage selectable?
    A: Yes, our product offers both CCT and wattage selectable options for versatile usage.
  2. Q: Is it ETL and DLC listed?
    A: Absolutely, our troffer is both ETL and DLC listed, ensuring compliance with the highest standards.
  3. Q: Can this product be installed with emergency and dimming PIR Bluetooth sensor?
    A: Yes, it can be installed with both emergency backup and dimming PIR Bluetooth sensor.
  4. Q: Do you have stock in the USA?
    A: Yes, we maintain stock in the USA for quick delivery.
  5. Q: What’s the lead time?
    A:With our US stock, we can ensure 7-15 day lead times to meet your project requirements.
