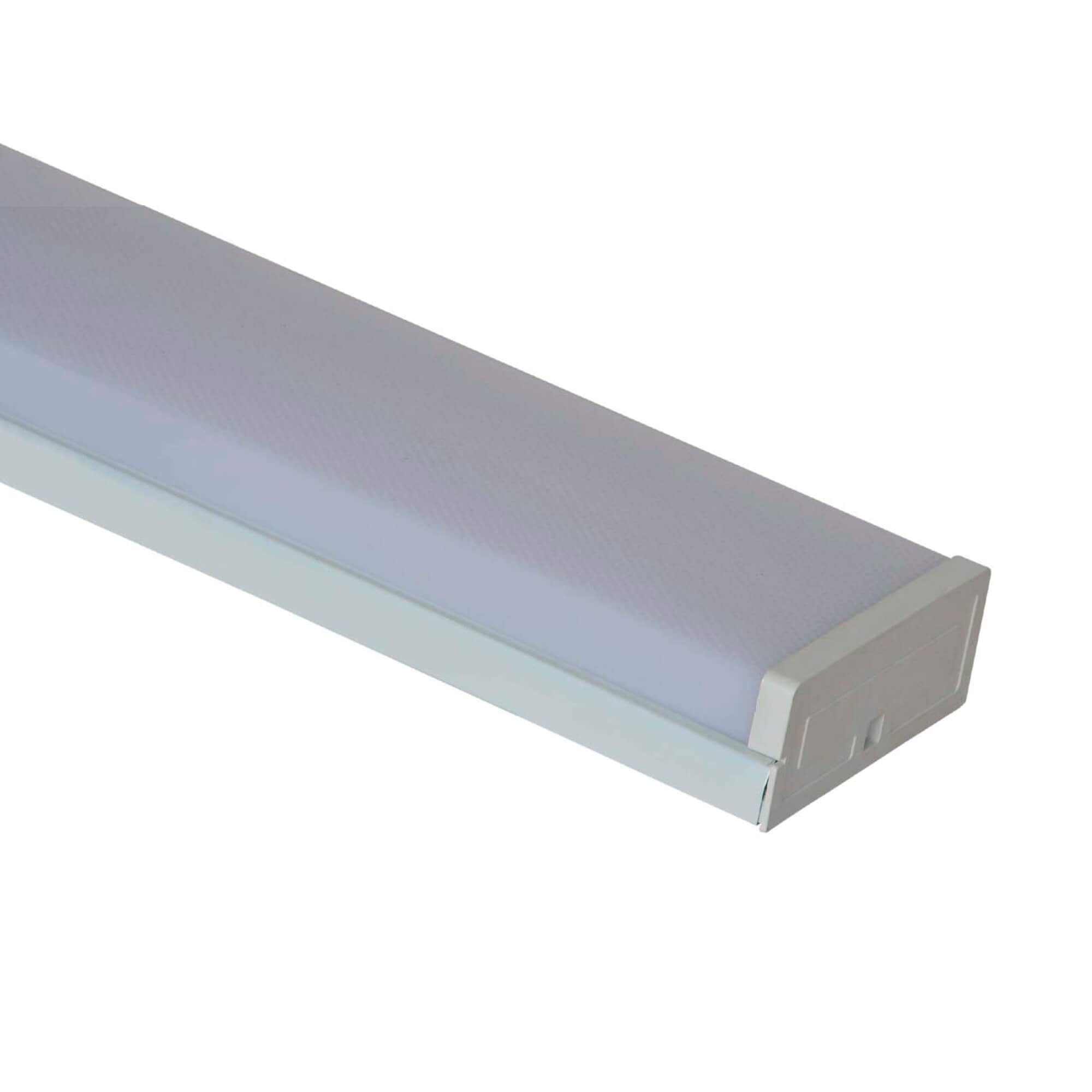

LED Wrap Light HG-L202 - Sensor Control

A cost-effective utility wrap by Halcon lighting with tremendous flexibility, both wattage and CCT selectable, controls ready, and provides an emergency battery backup option. This durable linear fixture delivers long lasting illumination and critical energy savings in locations where lights are on 24/7, such as stairwells, parking garages and utility areas.

Mode: HG-L202

Size:2ft, 4ft, 5ft, 6ft, 8ft

Watts:20W, 30W, 40W, 60W, 80W, 100W

Lumen:2500 lm-10000 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium. ETL/CETL List

Overview
Use Cases
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup • 0-10V dimming standard • CRI>80 • Universal voltage 120-277V • -4°F to 122°F (-20°C to 50°C), except fixtures with EM option • Fixture may be surface mounted or pendant/Rod mounted (accessories sold separately)

Controls Features

• Daylight Sensor • Occupancy Sensor • Integral Sensor Receptacle • High-end Trim • Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Use Cases

halconlighting Conference Room
halconlighting Office Unit

Specification


  • HG-L202-20W/2ft

    HG-L202-30W/4ft

    HG-L202-40W/5ft

    HG-L202-60W/5ft

    HG-L202-80W/6ft

    HG-L202-100W/8ft

    HG-L202-100W/8ft

  • Size 588x175x70mm 1188x175x70mm 1188x175x70mm 1488x175x70mm 1488x175x70mm 1788x175x70mm 2488x175x70mm
  • Nominal Wattage 20W 30W 40W 40W 60W 80W 100W
  • InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
  • Lumen Delivered 2400 lm 3600 lm 4800 lm 4800 lm 7200 lm 9600 lm 12000 lm
  • Nominal Efficacy 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w
  • CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
  • CRI >80 >80 >80 >80 >80 >80 >80
  • Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
  • Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
  • Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
  • Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
