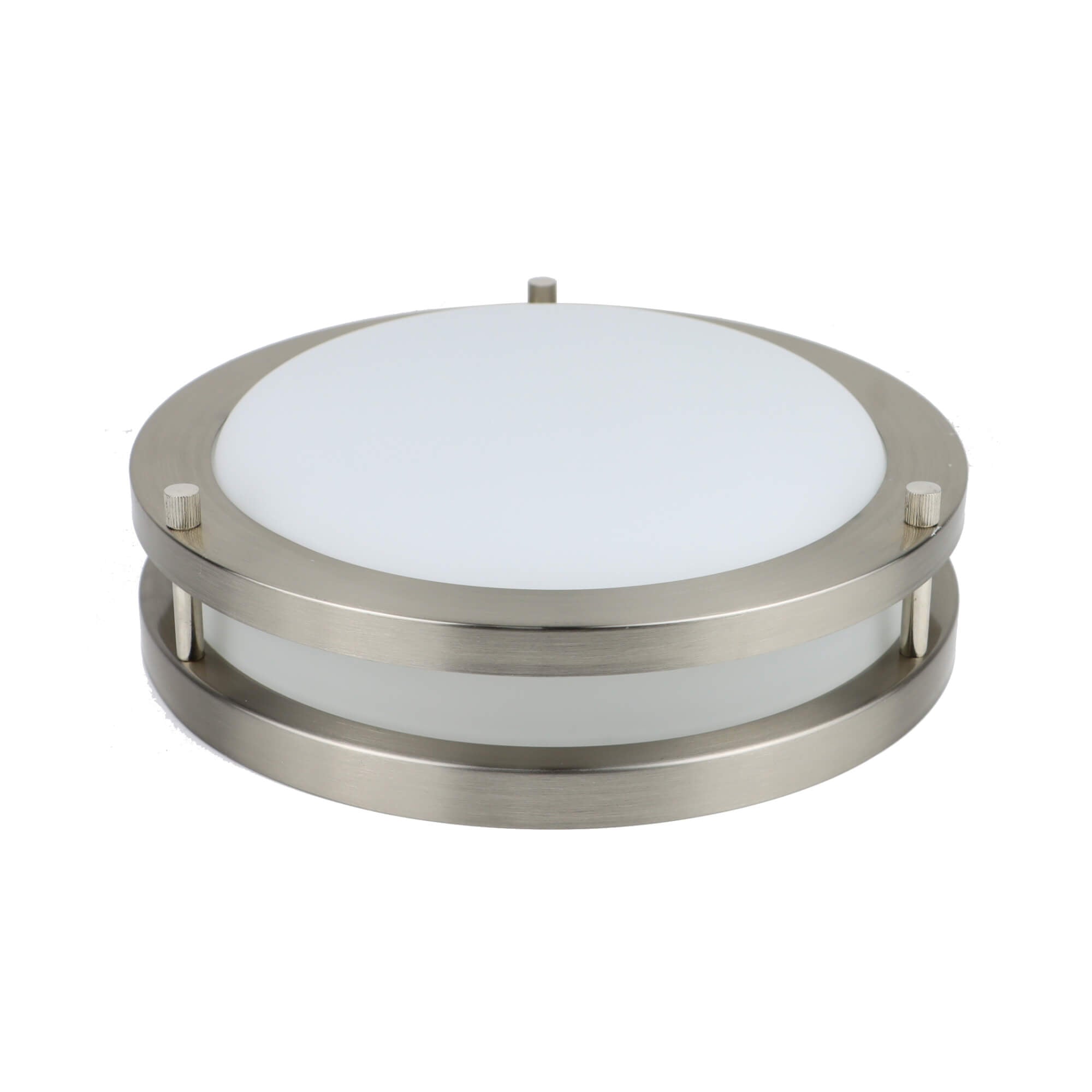

LED Round Ceiling Light C2301
LED Round Ceiling Light C2301
LED Round Ceiling Light C2301

LED Round Ceiling Light C2301

Available in several classic designs, LED Flush Mount Ceiling Fixtures are the attractive, energy-efficient choice for corridor and accent lighting in residential and hospitality applications such as hallways, bedrooms, kitchens, utility rooms and closets. The collection's Slim, Puff, traditional and architectural styles are ENERGY STAR(R) and offered in multiple finishes, sizes and CCTs ranging from 2700K to 5000K.

Mode: C2301

Size:10", 12", 14", 15", 16"

Watts:18W, 18W, 25W, 25W, 30W

Lumen:1260 lm-2100 lm

CCT:2700K/3000K/3500K/4000K/5000K

Qualifications: ETL/CETL List

Get A Quote
Overview
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup • 0-10V dimming standard • CRI>80 • Single voltage 120V • -4°F to 122°F (-20°C to 50°C), except fixtures with EM option • Fixture may be surface mounted or pendant/Rod mounted (accessories sold separately)

Controls Features

• Daylight Sensor • Occupancy Sensor • Integral Sensor Receptacle • High-end Trim • Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


  • C2301-10

    C2301-12

    C2301-14

    C2301-15

    C2301-16

  • Size 10" 12" 14" 15" 16"
  • Nominal Wattage 24W/30W 30W/40W 40W/50W 50W/60W 50W/60W
  • InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
  • Lumen Delivered 3300 lm 4400 lm 5500 lm 6600 lm 6600 lm
  • Nominal Efficacy 70 lm/w 70 lm/w 70 lm/w 70 lm/w 70 lm/w
  • CCT 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K
  • CRI >80 >80 >80 >80 >80
  • Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
  • Dimming 0-10V 0-10V 0-10V 0-10V 0-10V
  • Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
  • Warranty 3 Years 3 Years 3 Years 3 Years 3 Years
