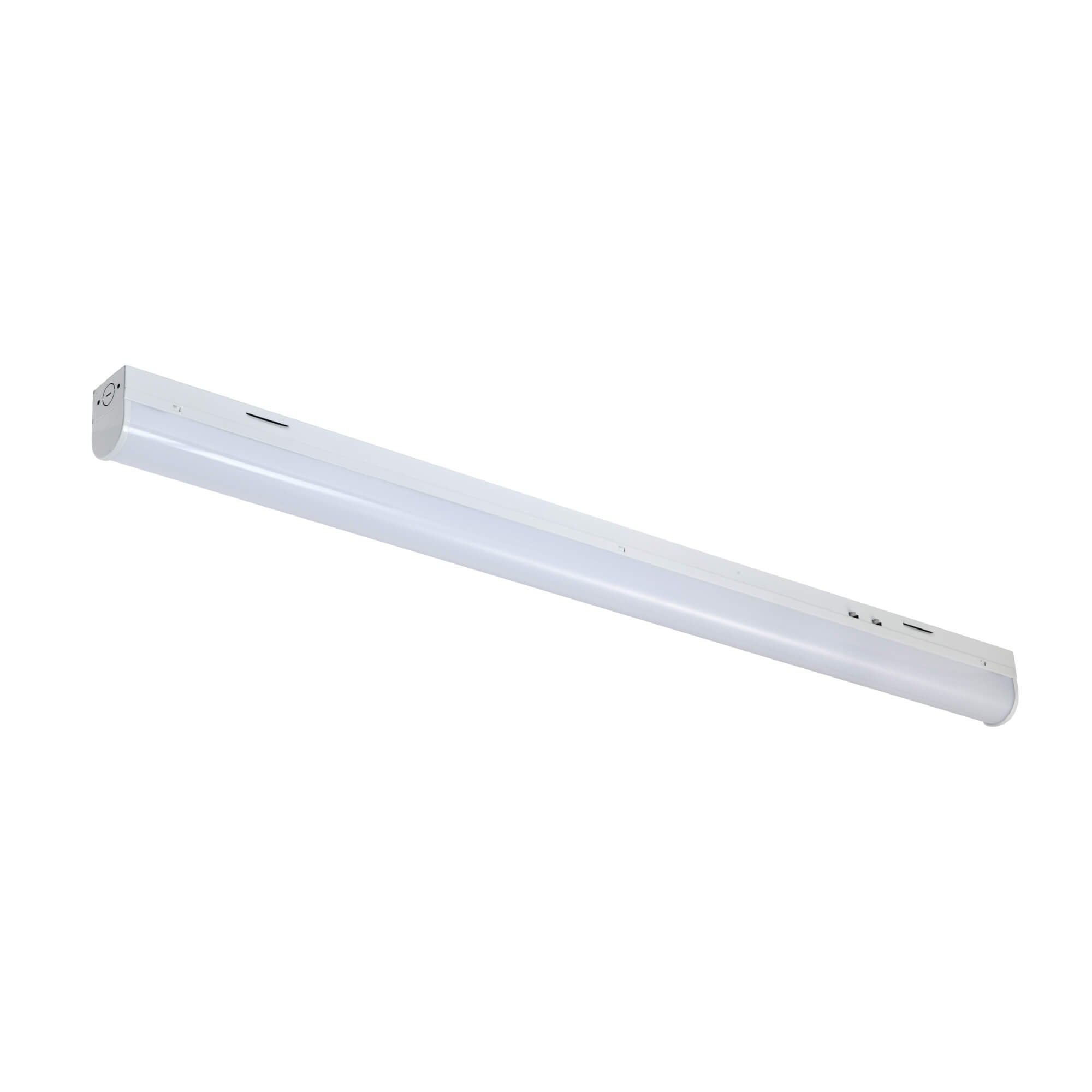

Versatile Halcon LED Strip Light HG-L205B with field-selectable wattages and CCTs for commercial and residential lighting
Halcon LED Strip Light HG-L205B with selectable color temperatures and wattages for commercial lighting
4-foot LED Strip Light HG-L205B with selectable CCT and wattage for commercial lighting.
4-foot LED Strip Light HG-L205B with selectable color temperature and wattage for commercial lighting
4-foot LED Strip Light HG-L205B with selectable color temperatures and wattages for commercial and residential lighting
2-foot LED Strip Light HG-L205B with selectable color temperature and wattage for commercial and residential lighting
halconlighting
Versatile Halcon LED Strip Light HG-L205B with field-selectable wattages and CCTs for commercial and residential lighting
Halcon LED Strip Light HG-L205B with selectable color temperatures and wattages for commercial lighting
4-foot LED Strip Light HG-L205B with selectable CCT and wattage for commercial lighting.
4-foot LED Strip Light HG-L205B with selectable color temperature and wattage for commercial lighting
4-foot LED Strip Light HG-L205B with selectable color temperatures and wattages for commercial and residential lighting
2-foot LED Strip Light HG-L205B with selectable color temperature and wattage for commercial and residential lighting

LED Linear Strip Lights 2FT 4FT 8FT Surface Mount and Hanging Ceiling Lighting Fixture Fluorescent Tube Replacement Wattage selectable 20W/30W/40W CCT selectable 3000K to 5000K ETL and DLC listed

  • Power selection:20W-50W, multiple power options
  • Light efficiency:130 lm/w
  • Offered in three sizes: 2', 4' and 8'’
  • Bluetooth control ready
  • Emergency back up compatibility
  • DLC NLC qualified, attractive for large utility rebates

Mode: HG-L205B

Size: 2ft, 4ft, 8ft

Watts: 15/20/25W, 20/25/40W, 55/60/65W, 50/65/80W

Lumen: 3250 lm-8450 lm

CCT: 3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Comparison Chart

Description

The new generation of Linear Strips features field-selectable wattages, CCTs and field-installable controls. Offered in three sizes (2', 4' and 8'), with each providing nine combinations of color temperatures and wattages, as well as optional sensor controls.

With its versatility and long life, Halcon new led strip can address a variety of commercial, industrial, retail and residential application needs, including storage/utility, workshop, task or general area lighting.

Specification

• Manufacturer： Halcon Lighting
• Fixture Type：LED Linear Strip lighting fixture
• Lead Time: Ships in 1-2 weeks
• Qualifications: DLC Standard/DLC Premium, ETL/CETL List
• Voltage: Universal voltage 120-277V
• CCT Adjustable: 3000K/3500K/4000K/5000K
• Dimmable: 0-10V dimming standard
• Size: 2ft, 4ft, 8ft
• Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models


Controls Features
  • Daylight Sensor
  • Occupancy Sensor
  • Integral Sensor Receptacle
  • High-end Trim
  • Bluetooth

• Model: HG-L205B
• Warranty: 5 years
• Wattage Adjustable: 15 to 25Watts / 20 to 40Watts / 55 to 65Watts / 50 to 80Watts
• CRI(Color rendering index):>80
• Lumen output: 3250 lm-8450 lm
• Light efficiency: 130 LP/W
• Aluminum body structure available in White finish
• Mounting: Surface mount, Pendant/Rod mount (accessories sold separately)

Accessories

SENSOR control, Emergency kits, suspension kits.

Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Specification


HG-L205B-252F HG-L205B-404F HG-L205B-658F HG-L205B-858F
Size 605x60x82mm 1175x60x82mm 2327x60x82mm 2327x60x82mm
Nominal Wattage 15/20/25W 20/25/40W 55/60/65W 50/65/80W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 3250 lm 5200 lm 8450 lm 8450 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years

Lighting FAQ

  1. Q: Is it CCT selectable and wattage selectable?
    A: Yes, our product offers both CCT and wattage selectable options for versatile usage.
  2. Q: Is it ETL and DLC listed?
    A: Absolutely, our troffer is both ETL and DLC listed, ensuring compliance with the highest standards.
  3. Q: Can this product be installed with emergency and dimming PIR Bluetooth sensor?
    A: Yes, it can be installed with both emergency backup and dimming PIR Bluetooth sensor.
  4. Q: Do you have stock in the USA?
    A: Yes, we maintain stock in the USA for quick delivery.
  5. Q: What’s the lead time?
    A:With our US stock, we can ensure 7-15 day lead times to meet your project requirements.
