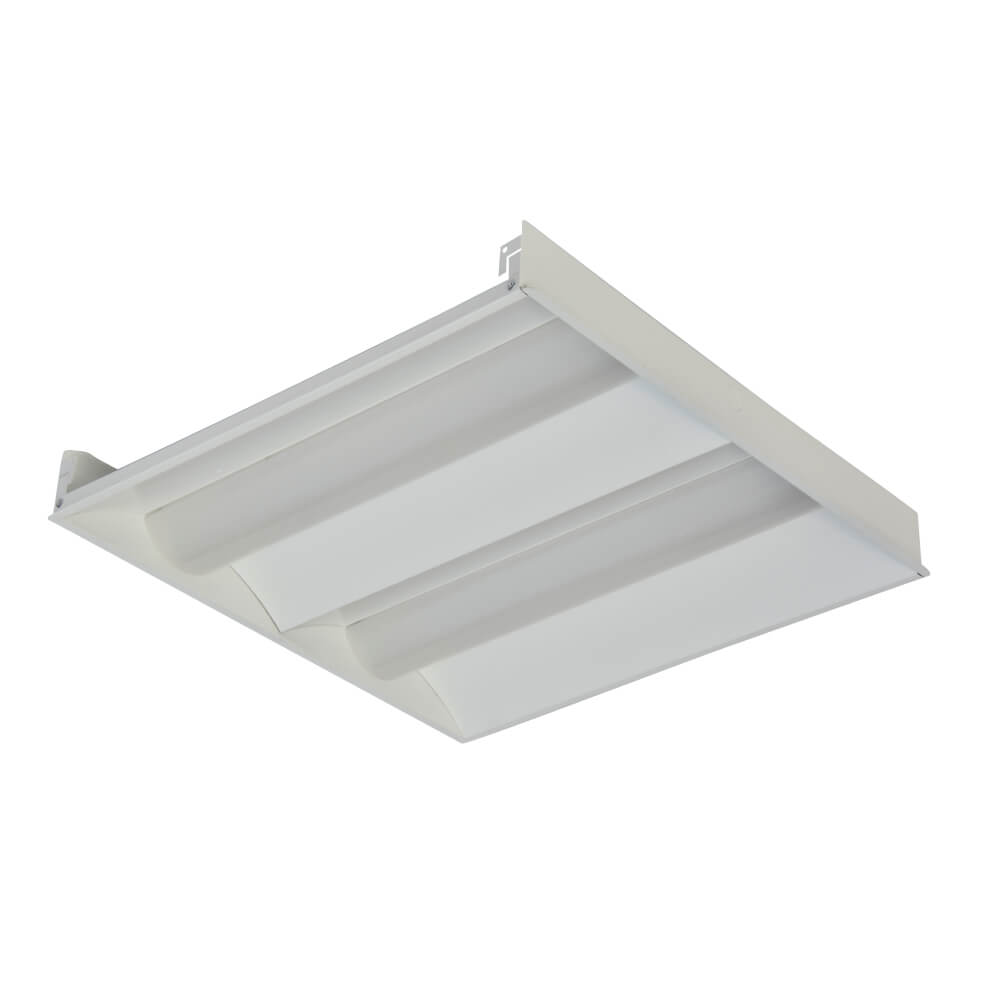

The Halcon Indirect Troffer is an architectural recessed luminaire that combines high efficiency LEDs with high-performance reflective material to emit voluminous, visually comfortable light. to generate energy savings beyond LED conversion through motion sensing, daylight harvesting, bi-level dimming and other energy-saving functions. A great choice for any location in which you need powerful lighting to a large area. This type of lighting offers a concentrated light source and an attractive look making it ideal for nearly any commercial or residential application.
l  20W-70W various wattage selectable,
l  125 LPW, comes in 2'x2', 2'x4', 1'x4'
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l  Office, education, health care, hospitality and retail interiors
Mode: HG-L248
Size:2'x2', 2'x4'
Watts:20/24/36W, 24/36/42/50W
Lumen:4140 lm-5750 lm
CCT:3000K/3500K/4000K/5000K
Qualifications: DLC Standard/DLC Premium.
ETL/CETL List
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
SENSOR control, Emergency kits, suspension kits.
                        office
                    | HG-L248-22 | HG-L248-24 | |
| Size | 603x603x75mm | 1213x603x75mm |
| Nominal Wattage | 20/24/36W | 24/36/42/50W |
| InputVoltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 4500 lm | 6250 lm |
| Nominal Efficacy | 125 lm/w | 125 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 |
| Power Factor | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years |
