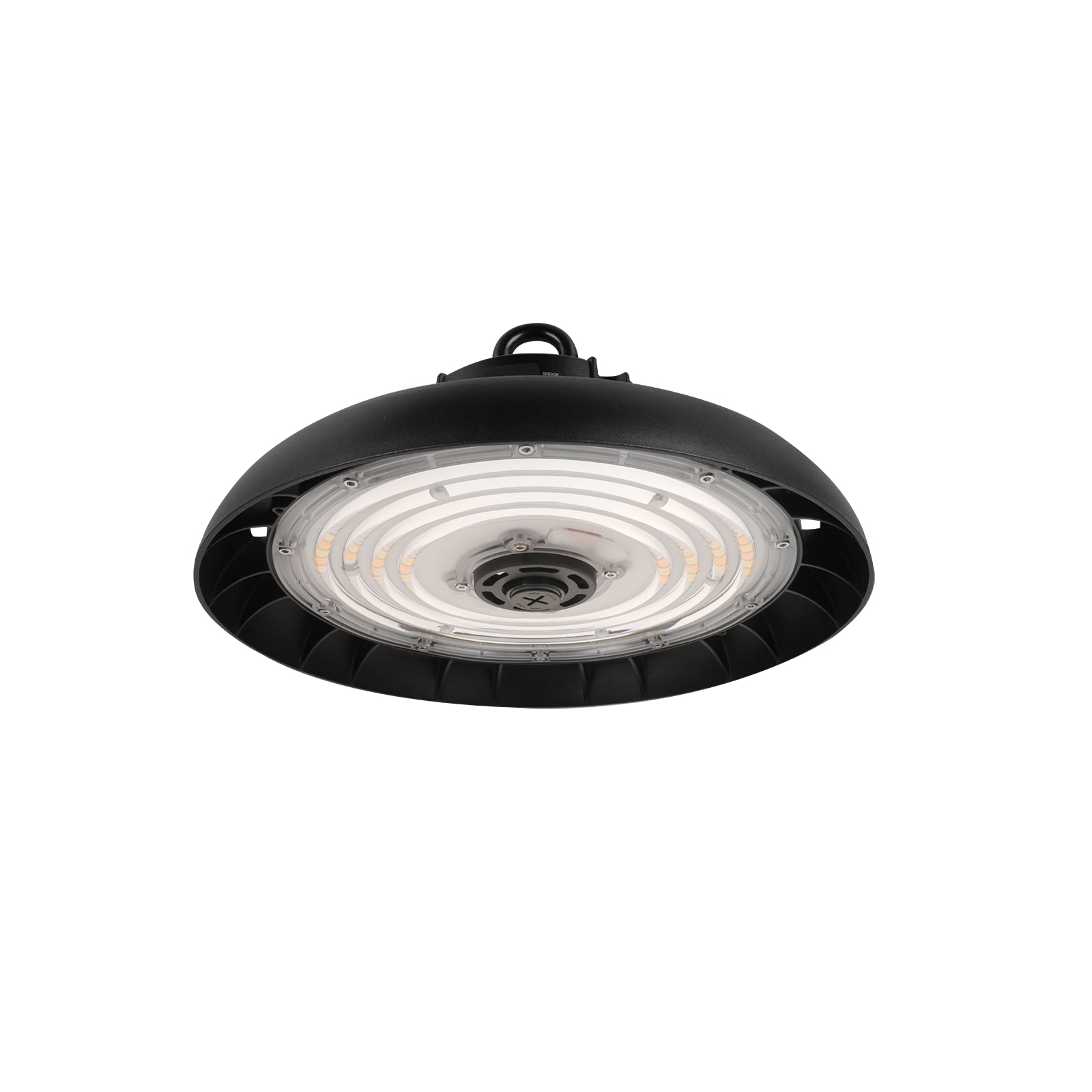

UFO High Efficiency Industrial Bay Light

UFO High Efficiency Industrial Bay Light

Power selection: 100W-240W, multiple power options
Light efficiency: 145 LPW
Bluetooth control ready
Emergency back up compatibility
DLC NLC qualified, attractive for large utility rebates

Mode: P2335

Size: 280X165mm, 280 x 165mm, 360x165mm, 360x165mm

Watts: 18W/36W/50W/60W

Lumen: 100W, 150W, 200W, 240W

CCT: 3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Overview

Specification

Description

When choosing lighting for commercial or industrial facilities with high ceilings, UFO led high bay lights are a simple yet effective solution. These round shaped fixtures project bright focused illumination to the area below. The compact design also makes them highly durable and energy-efficient.
We carry UFO LED high bay lights with a wide range of lumen outputs, including specialized fixtures with adjustable wattage, dimming, and motion sensor technology.

Specification

• Manufacturer： Halcon Lighting
• Fixture Type：LED High Bay lighting fixture
• Lead Time: Ships in 1-2 weeks
• Qualifications: DLC Standard/DLC Premium, ETL/CETL List
• Voltage: Universal voltage 120-277V
• CCT Adjustable: 3000K/3500K/4000K/5000K
• Dimmable: 0-10V dimming standard
• Size: 280X165mm, 280 x 165mm, 360x165mm, 360x165mm
• Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models

Controls Features

Daylight Sensor
Occupancy Sensor
Integral Sensor Receptacle
High-end Trim
Bluetooth

• Model: P2335
• Warranty: 5 years
• Wattage Adjustable: 100 to 240Watts
• CRI(Color rendering index):>80
• Lumen output: 14500 lm-34800 lm
• Light efficiency: 145 LP/W
• Mounting: Surface mount, Pendant/Rod mount (accessories sold separately)

Accessories

SENSOR control, Emergency kits, suspension kits.

Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Specification

	P2335-100	P2335-150	P2335-200	P2335-240
Size	280X165mm	280 x 165mm	360x165mm	360x165mm
Nominal Wattage	100W	150W	200W	240W
InputVoltage	AC 120-277V, 120-347V	AC 120-277V, 120-347V	AC 120-277V, 120-347V	AC 120-277V, 120-347V
Lumen Delivered	14500 lm	21750 lm	29000 lm	34800 lm
Nominal Efficacy	145 lm/w	145 lm/w	145 lm/w	145 lm/w
CCT	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K
CRI	>80	>80	>80	>80
Power Factor	>0.9	>0.9	>0.9	>0.9
Dimming	0-10V	0-10V	0-10V	0-10V
Operating Temperature	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty	5 Years	5 Years	5 Years	5 Years

Lighting FAQ

Q: Is it CCT selectable and wattage selectable?
A: Yes, our product offers both CCT and wattage selectable options for versatile usage.
Q: Is it ETL and DLC listed?
A: Absolutely, our troffer is both ETL and DLC listed, ensuring compliance with the highest standards.
Q: Can this product be installed with emergency and dimming PIR Bluetooth sensor?
A: Yes, it can be installed with both emergency backup and dimming PIR Bluetooth sensor.
Q: Do you have stock in the USA?
A: Yes, we maintain stock in the USA for quick delivery.
Q: What’s the lead time?
A:With our US stock, we can ensure 7-15 day lead times to meet your project requirements.
