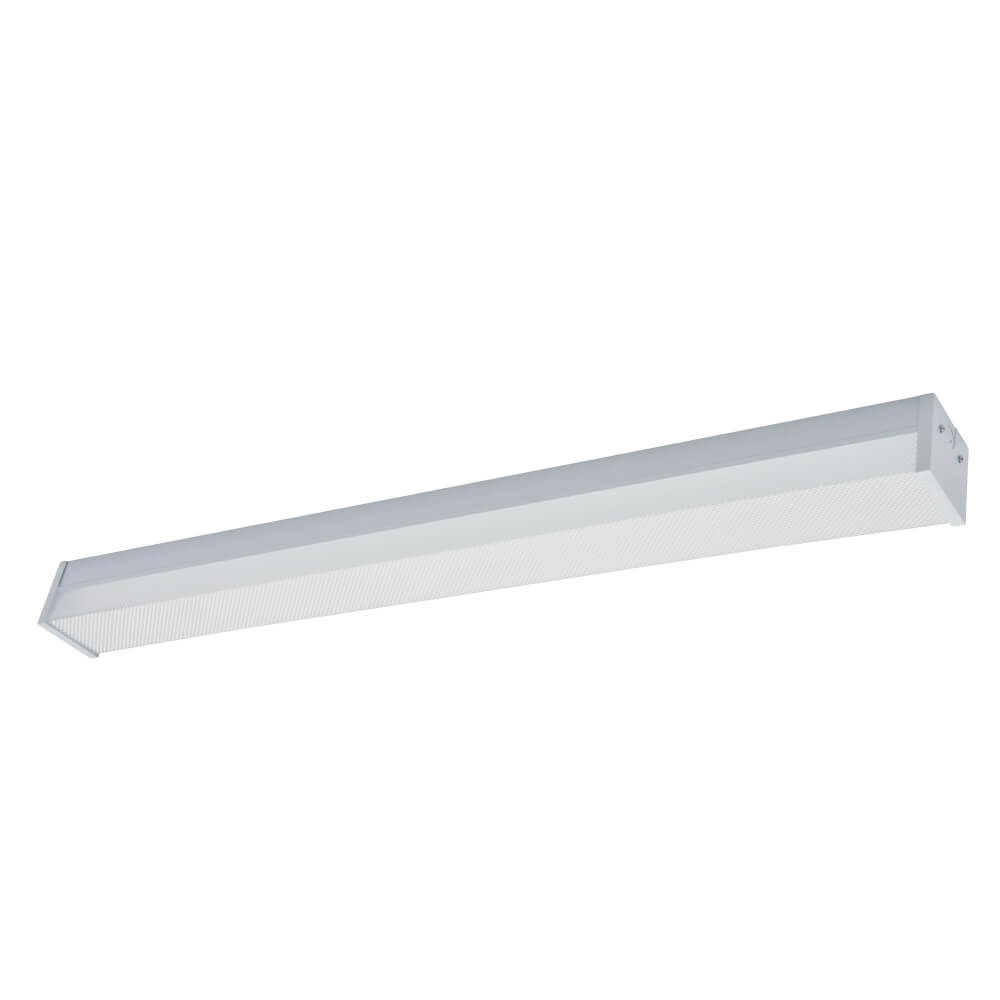

Halco Lighting LED Prismatic Wrap Light HG-L239 with selectable wattage, CCT options, and emergency battery backup for energy savings in continuous use areas
HG-L239 LED prismatic wrap light by Halcon with selectable wattage and CCT, ready controls, and emergency battery backup option
Halcon lighting LED Prismatic Wrap Light HG-L239 with selectable wattage and CCT, emergency battery backup featured for stairwells and utility areas.
halconlighting
Halco Lighting LED Prismatic Wrap Light HG-L239 with selectable wattage, CCT options, and emergency battery backup for energy savings in continuous use areas
HG-L239 LED prismatic wrap light by Halcon with selectable wattage and CCT, ready controls, and emergency battery backup option
Halcon lighting LED Prismatic Wrap Light HG-L239 with selectable wattage and CCT, emergency battery backup featured for stairwells and utility areas.

LED Wrap Light prismatic 2ft 4ft 8ft Wattage selectable CCT selectable 120-277V 0-10V dimming ETL and DLC listed emergency back up and sensor control ready

A cost-effective utility wrap by Halcon lighting with tremendous flexibility, both wattage and CCT selectable, controls ready, and provides an emergency battery backup option. This durable linear fixture delivers long lasting illumination and critical energy savings in locations where lights are on 24/7, such as stairwells, parking garages and utility areas.

l  20W-70W various wattage selectable,
l  125 LPW, comes in 2'x2', 2'x4', 1'x4'
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l  Office, education, health care, hospitality and retail interiors

Mode: HG-L239

Size:2ft, 4ft, 5ft, 6ft, 8ft

Watts:20W, 30W, 40W, 60W, 80W

+F17:F18

Lumen:2500 lm-10000 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Comparison Chart
Video

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


HG-L239-20W/2ft HG-L239-30W/4ft HG-L239-40W/5ft HG-L239-60W/5ft HG-L239-80W/6ft HG-L239-100W/8ft HG-L239-100W/8ft
Size 602x105x96mm 1175x105x96mm 1175x105x96mm 1475x105x96mm 14875x105x96mm 1775x105x96mm 2475x105x96mm
Nominal Wattage 20W 30W 40W 40W 60W 80W 100W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2400 lm 3600 lm 4800 lm 4800 lm 7200 lm 9600 lm 12000 lm
Nominal Efficacy 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
