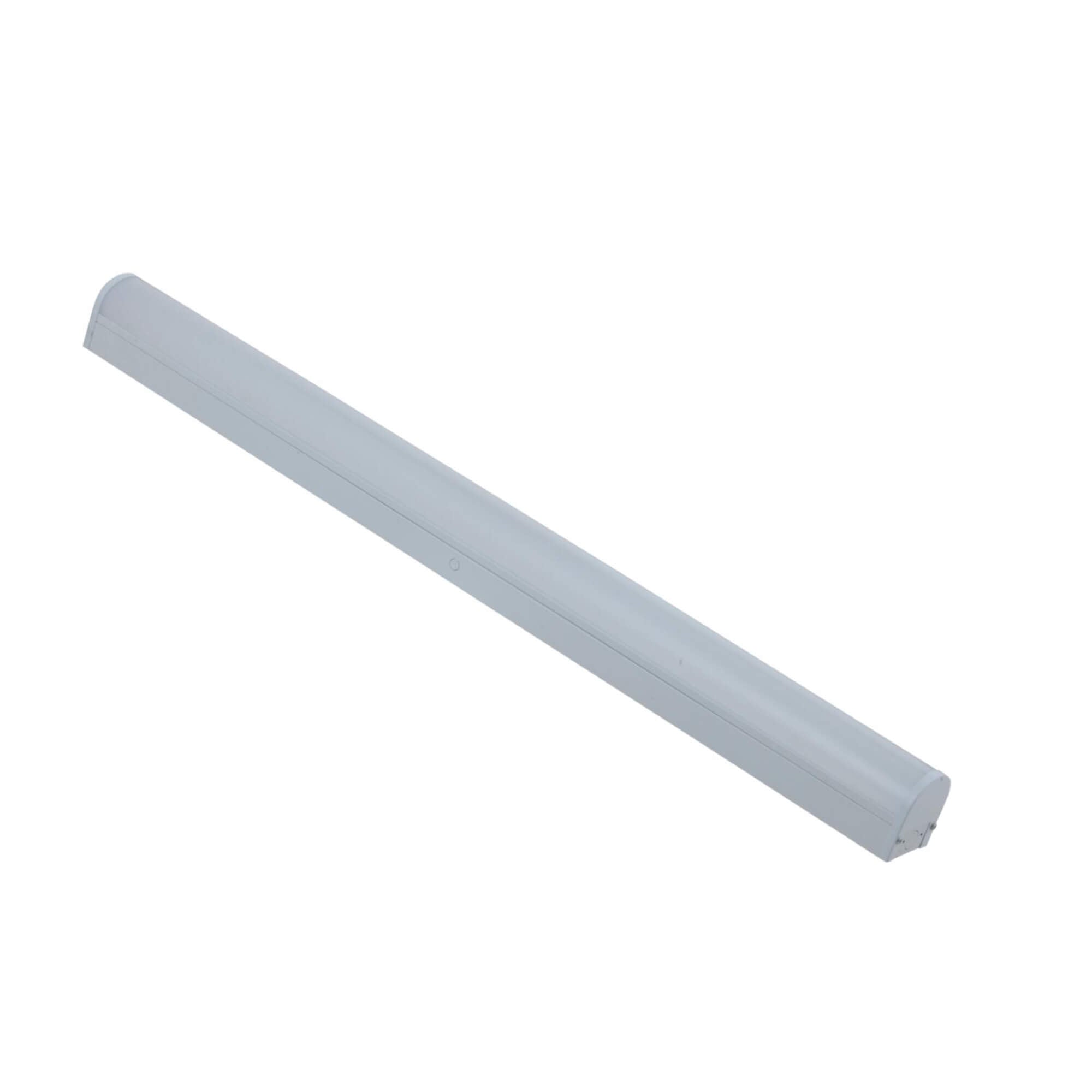

Halcon LED Strip Light HG-L205 in 4-foot size for commercial and residential lighting installations
Halcon LED Strip Light HG-L205 with field-selectable wattage and color temperature for commercial and residential lighting.
Halcon LED Strip Light HG-L205 with field-selectable wattages and CCTs for commercial and residential lighting
Halcon LED Strip Light HG-L205 for commercial and residential lighting applications
HG-L205 LED Strip Light in 8-foot length with adjustable chains and field-selectable features for commercial and residential lighting
4-foot LED Strip Light HG-L205 with selectable color temperatures and wattages
halconlighting
Halcon LED Strip Light HG-L205 in 4-foot size for commercial and residential lighting installations
Halcon LED Strip Light HG-L205 with field-selectable wattage and color temperature for commercial and residential lighting.
Halcon LED Strip Light HG-L205 with field-selectable wattages and CCTs for commercial and residential lighting
Halcon LED Strip Light HG-L205 for commercial and residential lighting applications
HG-L205 LED Strip Light in 8-foot length with adjustable chains and field-selectable features for commercial and residential lighting
4-foot LED Strip Light HG-L205 with selectable color temperatures and wattages

LED linear light strip diffuser 2ft 4ft 8ft Light Fixture wattage selectable CCT Selectable 3000K-5000K Surface Mount ETL & DLC Listed

The new generation of Linear Strips features field-selectable wattages, CCTs and field-installable controls. Offered in three sizes (2', 4' and 8'), with each providing nine combinations of color temperatures and wattages, as well as optional sensor controls. With its versatility and long life, Halcon new led strip can address a variety of commercial, industrial, retail and residential application needs, including storage/utility, workshop, task or general area lighting.

Mode: HG-L205

Size:2ft, 4ft, 8ft

Watts:24W, 36W, 42W, 68W

Lumen:3120 lm-8840 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Comparison Chart
Video

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


HG-L205-242F HG-L205-364F HG-L205-428F HG-L206-688F
Size 606x115x91mm 1206x115x91mm 2438x115x91mm 2438x115x91mm
Nominal Wattage 24W 36W 42W 68W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 3120 lm 4680 lm 5460 lm 8840 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years
