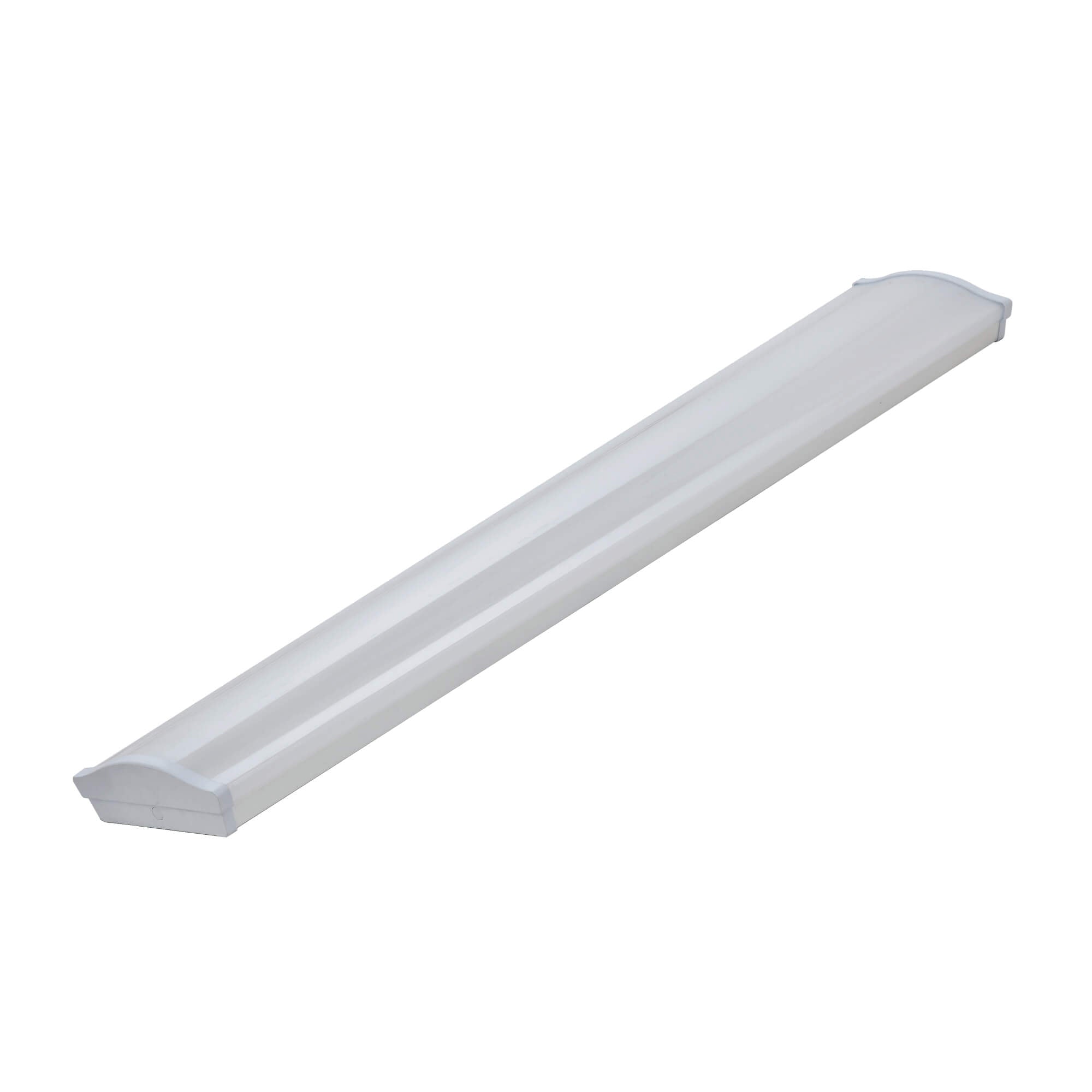

HG-L201 LED Wrap Light | High-Efficiency Lighting Upgrade
Upgrade to Halcon's Linear LED Wrap Lights for Maximum Efficiency
Transform any commercial space with the versatile and affordable HG-L201 LED wrap light. Available in 2' to 8' sizes, this sleek linear fixture brings powerful illumination to utility areas and beyond.
Our LED wraps combine high 120 lumens per watt efficiency, 50,000 hour lifetime and field-customizable CCTs (3000K-5000K). Easily select the perfect crisp white light temperature for your environment.
Low Profile Design, Easy Installation
The compact housing mounts flush against walls, ceilings and stairwells. Integrated side clips and end caps create seamless connections for continuous run installations.
Simplify maintenance with plug-and-play LED boards that are easily accessible. Built-in 0-10V dimming enables further energy savings.
Superior Light Quality for High Traffic Areas
Replace fluorescent wraps with long-lasting, flicker-free LEDs. The HG-L201 provides uniform illumination ideal for corridors, parking garages, warehouses and other commercial applications.
Trust Halcon’s wraps to deliver maximum savings, quality, and convenience. Contact us today to upgrade your linear lighting.
Transform any commercial space with the versatile and affordable HG-L201 LED wrap light. Available in 2' to 8' sizes, this sleek linear fixture brings powerful illumination to utility areas and beyond.
Our LED wraps combine high 120 lumens per watt efficiency, 50,000 hour lifetime and field-customizable CCTs (3000K-5000K). Easily select the perfect crisp white light temperature for your environment.
Low Profile Design, Easy Installation
The compact housing mounts flush against walls, ceilings and stairwells. Integrated side clips and end caps create seamless connections for continuous run installations.
Simplify maintenance with plug-and-play LED boards that are easily accessible. Built-in 0-10V dimming enables further energy savings.
Superior Light Quality for High Traffic Areas
Replace fluorescent wraps with long-lasting, flicker-free LEDs. The HG-L201 provides uniform illumination ideal for corridors, parking garages, warehouses and other commercial applications.
Trust Halcon’s wraps to deliver maximum savings, quality, and convenience. Contact us today to upgrade your linear lighting.
Design and Installation
Use Cases
Meeting Room
Specification
| HG-L201-20W/2ft | HG-L201-30W/4ft | HG-L201-40W/5ft | HG-L201-60W/5ft | HG-L201-80W/6ft | HG-L201-100W/8ft | HG-L201-100W/8ft | |
| Size | 588x208x70mm | 1188x208x70mm | 1188x208x70mm | 1488x208x70mm | 1488x208x70mm | 1788x208x70mm | 2488x208x70mm |
| Nominal Wattage | 20W | 30W | 40W | 40W | 60W | 80W | 100W |
| InputVoltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 2400 lm | 3600 lm | 4800 lm | 4800 lm | 7200 lm | 9600 lm | 12000 lm |
| Nominal Efficacy | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
