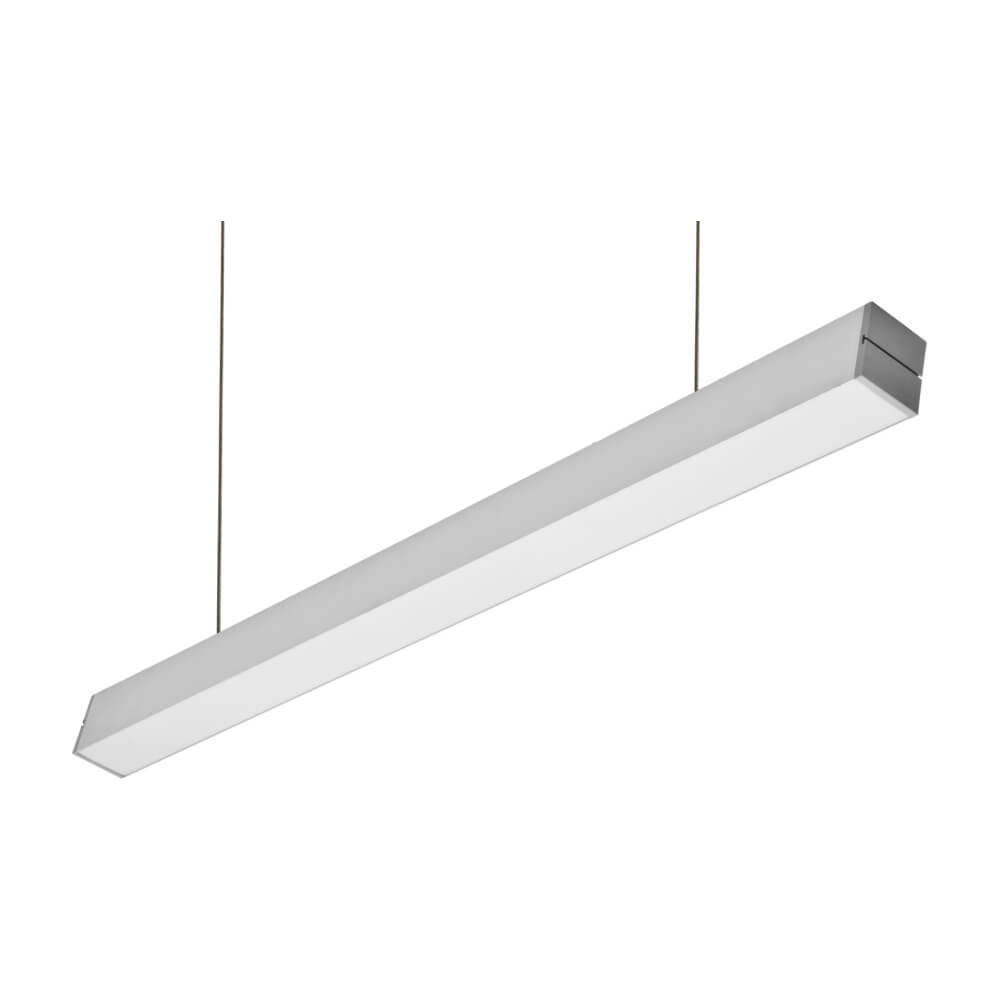

LED Pendant Light Down HG-L242W | Linkable Design

The Direct/indirect up/down pendant by Halcon Lighting is a unique product offering which provides a 70:30 split of light between the direct surfaces below and the ambient area above the fixture. The fixture provides both functional light and a design statement to any space where it is utilized. The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on. The 1'x4' suspended Direct/Indirect pendant is a commercial lighting fixture utilizing an advanced LED optical system to achieve superior performance. it features field-CCT selectable & wattage selectable, sensor control ready, emergency back up option.

Mode: HG-L242W

Size:1ft, 2ft, 4ft, 5ft, 8ft

Watts:10/15/20W, 15/20/30W, 20/30/40W, 40/50/60W, 40/60/80W


Lumen:2300 lm-9200 lm

CCT:2700K/3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


HG-L242W-201F HG-L242W-302F HG-L242W-404F HG-L242W-605F HG-L242W-1008F
Size 374x50x75mm 574x50x75mm 1174x50x75mm 1474x50x75mm 2474x50x75mm
Nominal Wattage 10/15/20W 15/20/30W 20/30/40W 40/50/60W 40/60/80W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2300 lm 3450 lm 4600 lm 6900 lm 9200 lm
Nominal Efficacy 115 lm/w 115 lm/w 115 lm/w 115 lm/w 115 lm/w
CCT 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
