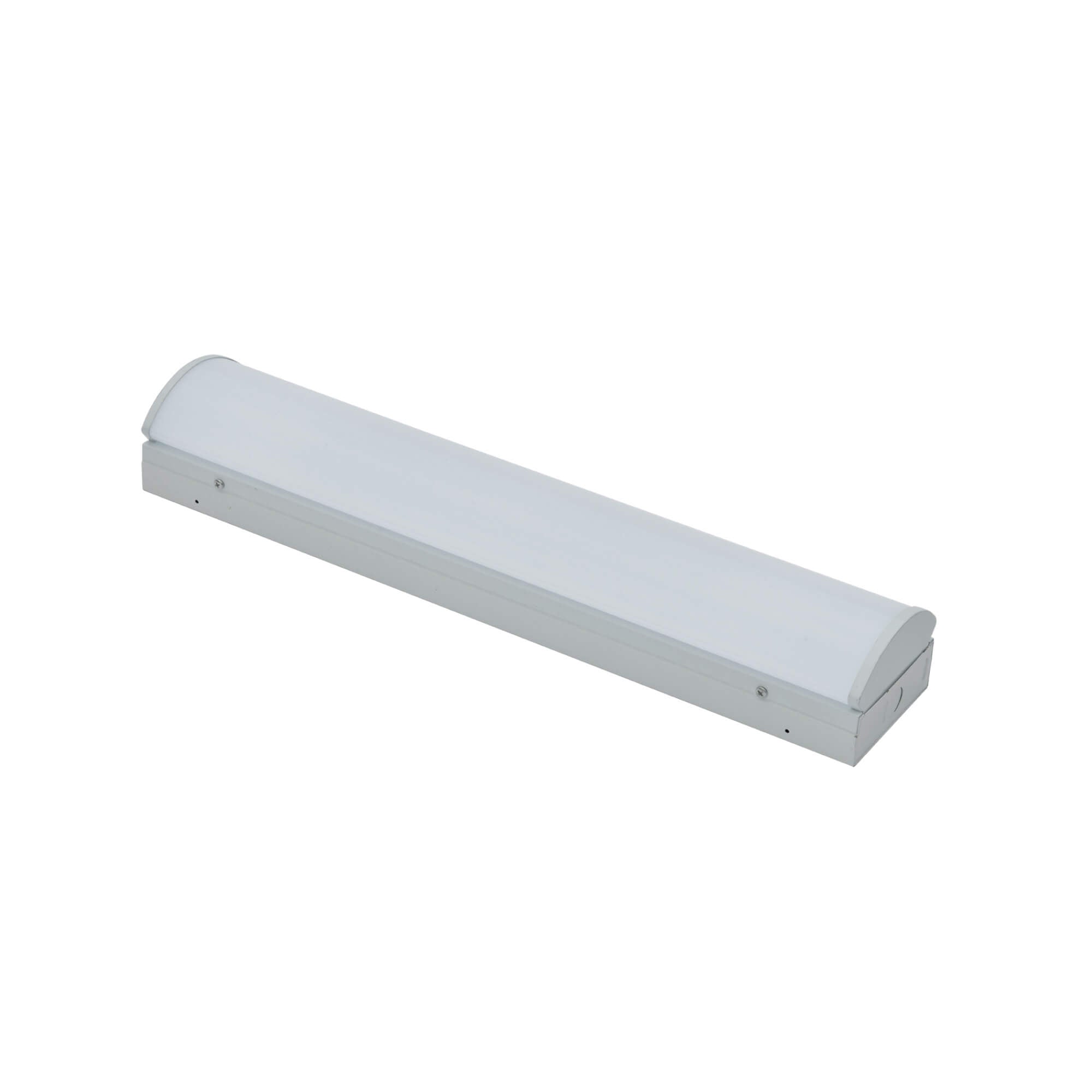

Halcon LED Strip Retrofit Kit HG-L206R compatible with T8/T12 fixtures, with USB-C control port.
Halcon HG-L206R LED Strip Retrofit Kit for upgrading fluorescent strips to LED

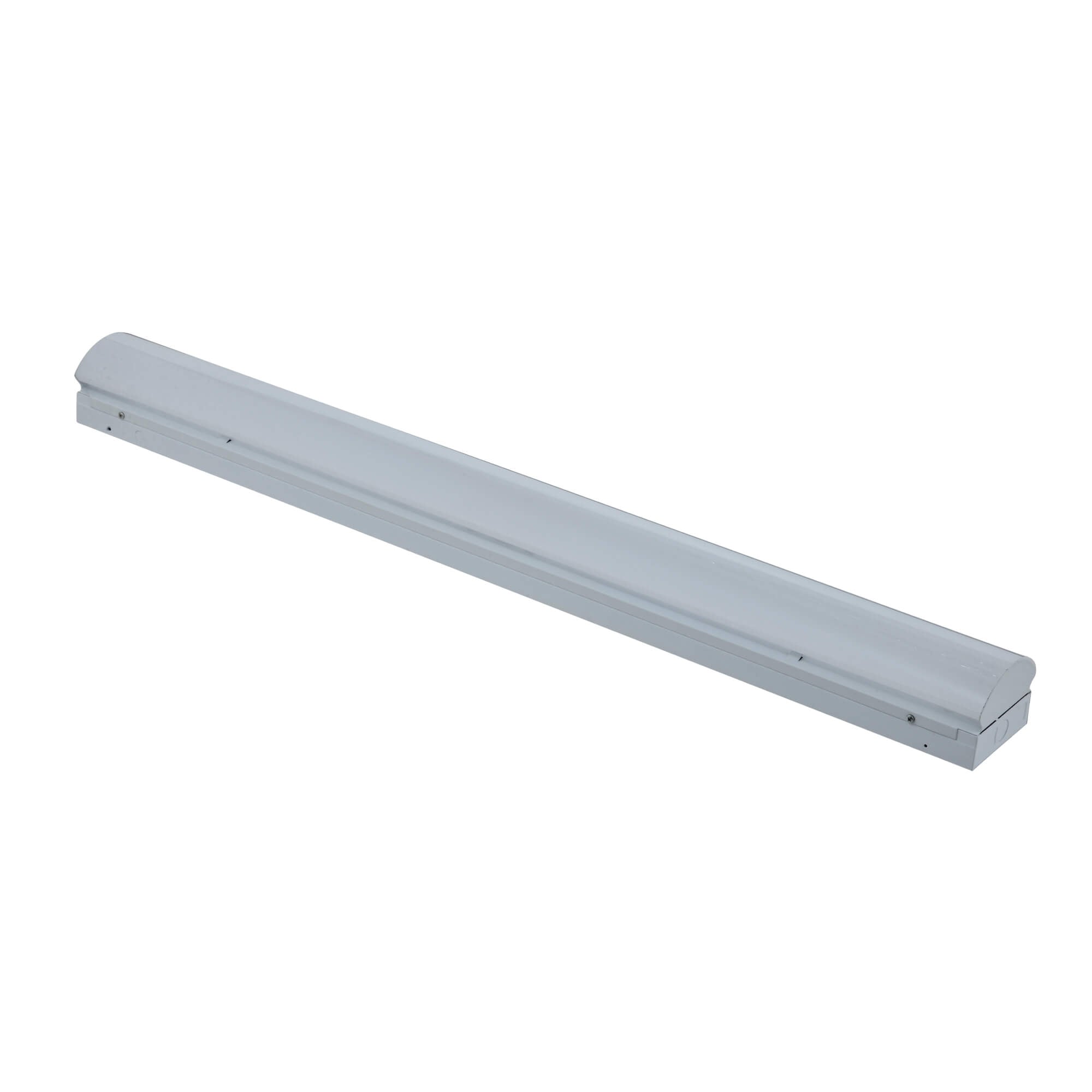

Halcon LED Strip Retrofit Kit HG-L206R for 4' and 8' fluorescent fixtures with Maxlite c-Max Controls Ready USB-C port.
Halcon LED Strip Retrofit Kit HG-L206R for fluorescent strips conversion with USB-C control port
Halcon LED Strip Retrofit Kit HG-L206R for fluorescent strips conversion with universal design and multiple CCT and wattage options
halconlighting
Halcon LED Strip Retrofit Kit HG-L206R compatible with T8/T12 fixtures, with USB-C control port.
Halcon HG-L206R LED Strip Retrofit Kit for upgrading fluorescent strips to LED
Halcon LED Strip Retrofit Kit HG-L206R for 4' and 8' fluorescent fixtures with Maxlite c-Max Controls Ready USB-C port.
Halcon LED Strip Retrofit Kit HG-L206R for fluorescent strips conversion with USB-C control port
Halcon LED Strip Retrofit Kit HG-L206R for fluorescent strips conversion with universal design and multiple CCT and wattage options

LED Strip Retrofit Kits HG-L206R

Halcon's strip retrofits existing 4' and 8' fluorescent strips and Industrial fixtures to LED in as little as one minute. Industry's fastest LED strip retrofit kit. The universal design fits most 4.25" and 5.25" T8/T12 fluorescent wide strips. With each SKU offering 3 CCT and 3 wattage options and the Maxlite's Patented c-Max Controls Ready USB-C port allowing in-field Plug and Play controls, this product meets a variety of needs in a single package.

Mode: HG-L206

Size:2ft, 4ft, 8ft

Watts:20W, 30W, 40W, 60W, 80W


Lumen:2340 lm-11050 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


HG-L206R-182F HG-L206R-244F HG-L206R-638F HG-L206R-858F HG-L206R-858F
Size 606x115x91mm 1206x115x91mm 2438x115x91mm 2438x115x91mm 2438x115x91mm
Nominal Wattage 18W/24W 24W/40W 63W/83W 63W/83W 63W/83W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2340 lm 3120 lm 5200 lm 8190 lm 11050 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
