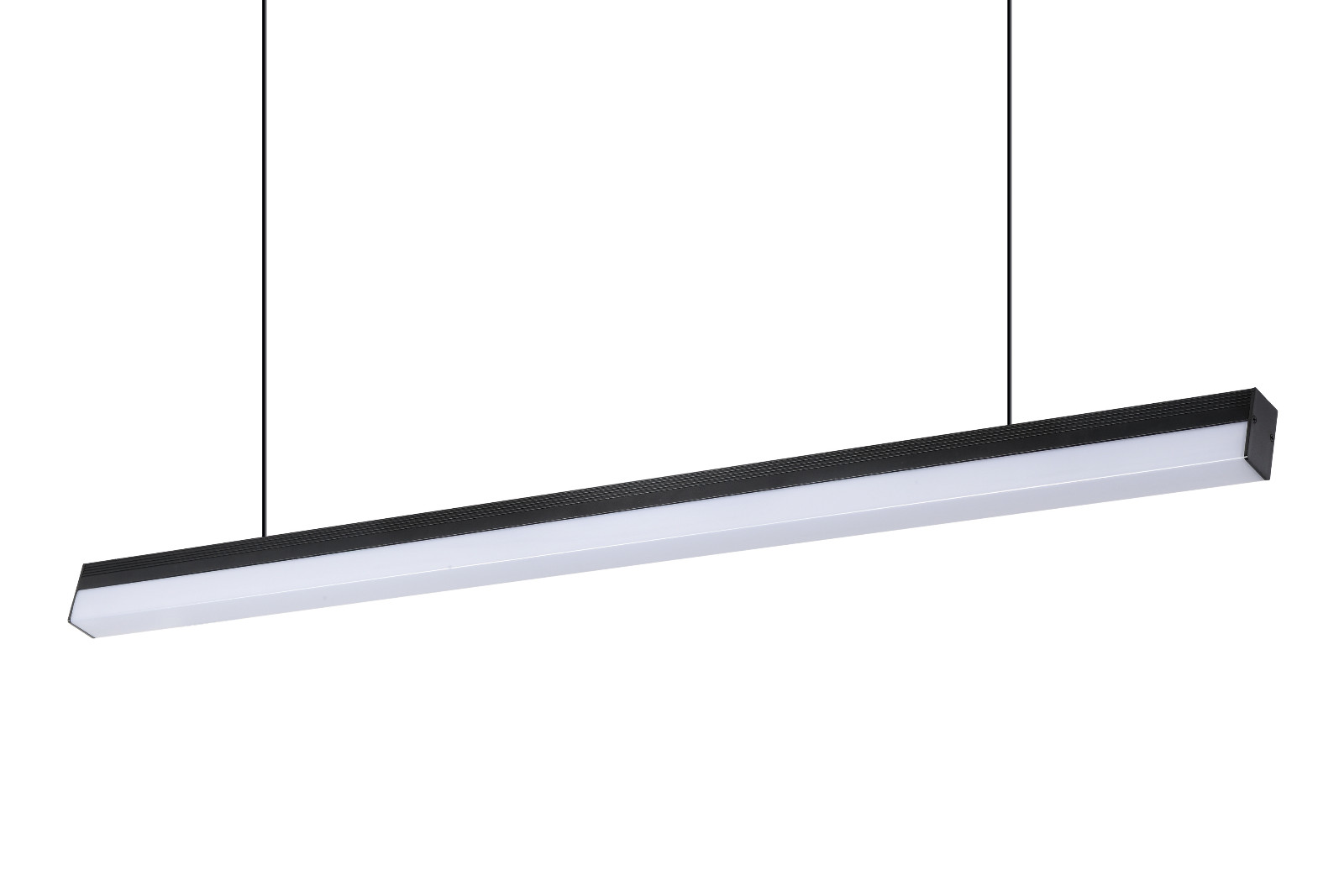

Suspended LED Light-C2007
B站不支持收货地址
B站不支持库存规格
Model
C2007
MOQ
100 PCS
Payment
T/T,LC
Delivery Time
30-35 working days
Start Port
ZhongShan Port
Certification
UL/CUL,ETL/CETL,SAA,CE
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障


  • ■ OFFICE/ ARCHTECTRUAL/ SCHOOL/DISPLAY CENTRES
    it contributes to comfortable, healthy workplaces by lighting the task, face and space.
    It produces soft, 360° light with no visible LEDs.
    To complete the range, the recessed version is now joined by IQ Wave surface and suspended.
    Available in 1200 mm and 1500 mm, they can be joined together in a continuous line, to create a sleek look.
    It is available with lumen packages ranging from 2600 lm to 6700 lm, in colour temperatures of 3000K or 4000K
    The IP40 rating offers extra protection for school applications.
    The special optical design achieves high efficacy, and even more energy can be saved thanks to control options
    including presence/absence detection and daylight dimming

  • ■ CONTROLS
    Fixture can be equipped with an occupancy sensor.
    Devices are factory-installed and require minimal labor to set up during fixture installation.

  • ■ DIMMING
    Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.

  • ■ FINISHES
    1-Available for dimmable version
    Standard fixture is anodized on surface

Features
  •     ETL & DLC listed; With LM79 & LM80;

  •     4ft: 40W

  •     High luminous efficacy 130 LM/W;

  •     50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.

  •     PF>0.90

  •    driver efficiency>87%;THD<20%;

  •      Installation: Suspended,Flush mount.

  •    Suitablefor dry/damp location;

  •    Designed for office/ architectrual/ school/ display centres

  •    CCT: 3000K,4000K & 5000K;

  •    Lifetime: 5 years

Product dimension


Model No
ABC
C2007-30W1174mm38mm60mm
46.2 inch1.50 inch2.36 inch
C2007-40W1174mm38mm60mm
46.2 inch1.50 inch2.36 inch
Technical data
Total Input Watt
30W/4ft40W/4ft
SMD LED Chips Brand
SMD2835 LED Chips
Calculated L70
50000 hrs
Delivered Lumens
3900 lm5200 lm
Luminaire Efficacy Rating
130 LM/W
Correlated Color Temperature
3000K,4000K,500K
Color Rendering Index
>80
Light distribution
Installation
INSTALLATION FOR RECESSED

1-Fix the cooper nut into the ceiling by screw

2-Lock the stainess wire into the cooper nut.

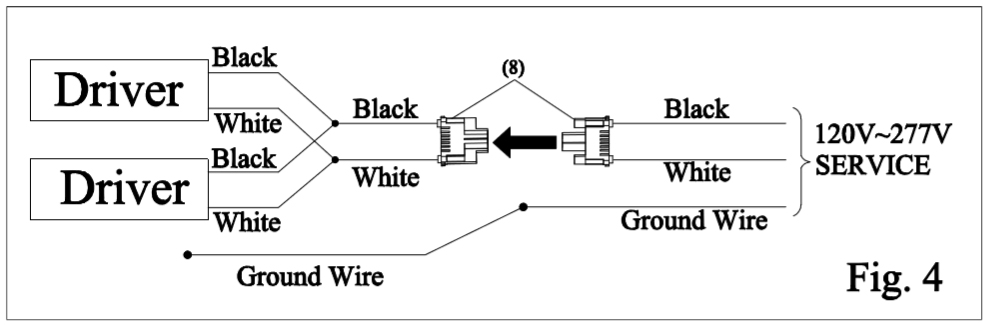

3-Turn off the power,make the wire connection to the quick connector

Installation
INSTALLATION FOR CEILING-MOUNTED

1-Fix the mounting holes into the ceiling by screw

2-lock the stainess bracket into the holes.

3-Snap in the lights into the mounting bracket

INSTALLATION FOR HANGING
Warning
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.
1
1
Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.

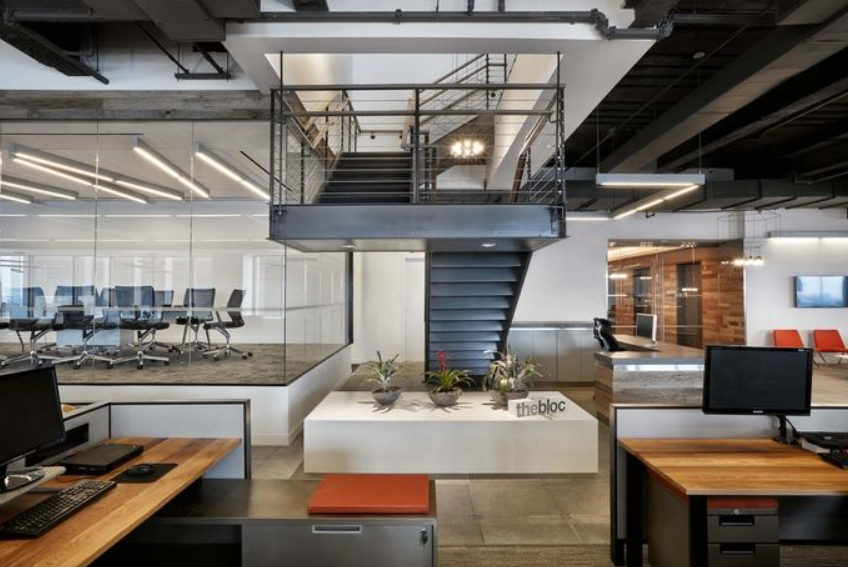

Applications
Office
Conference Room
