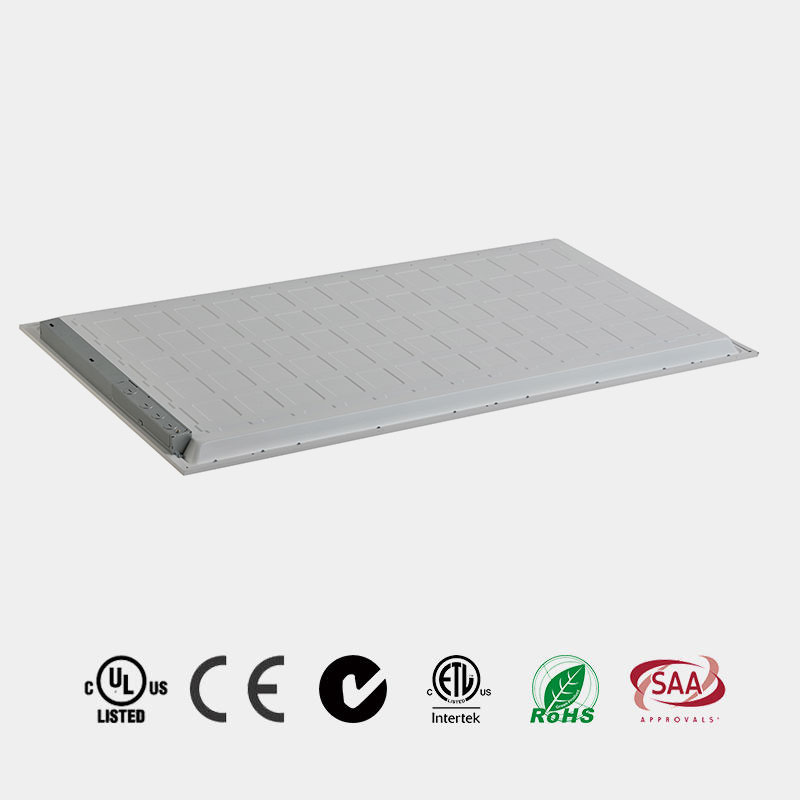

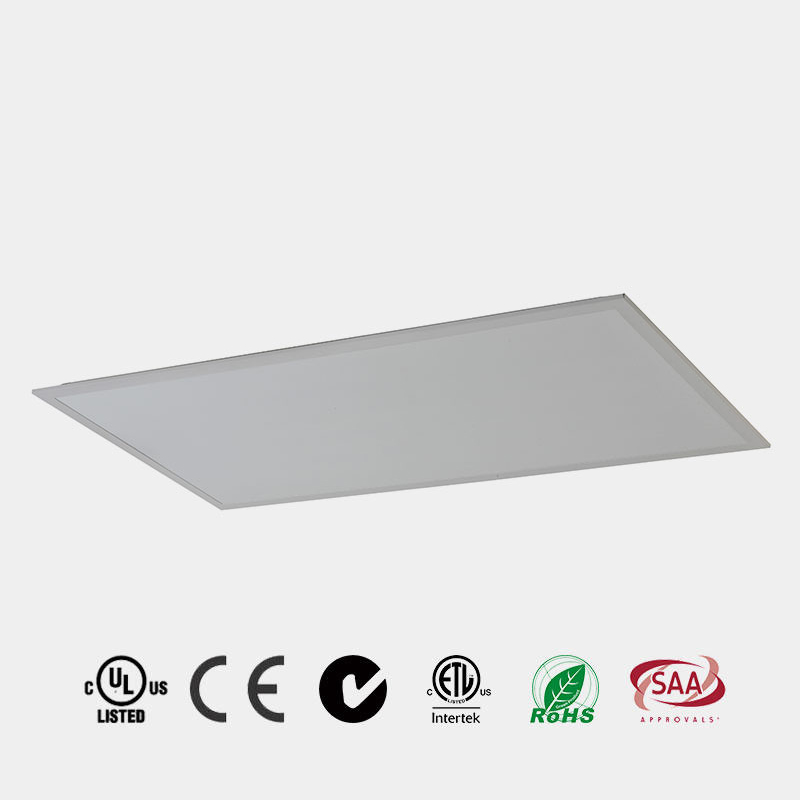

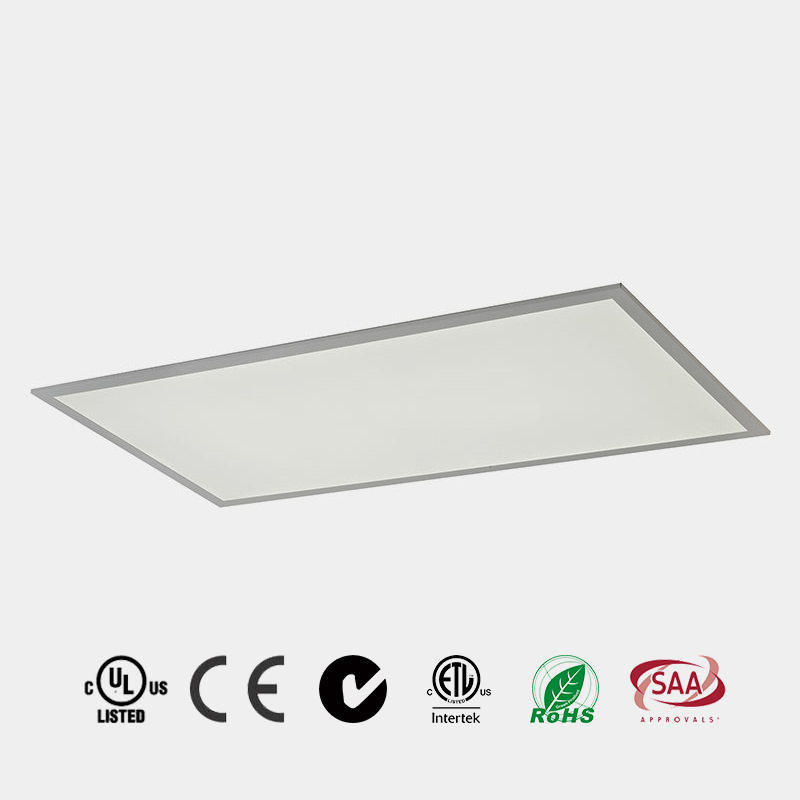

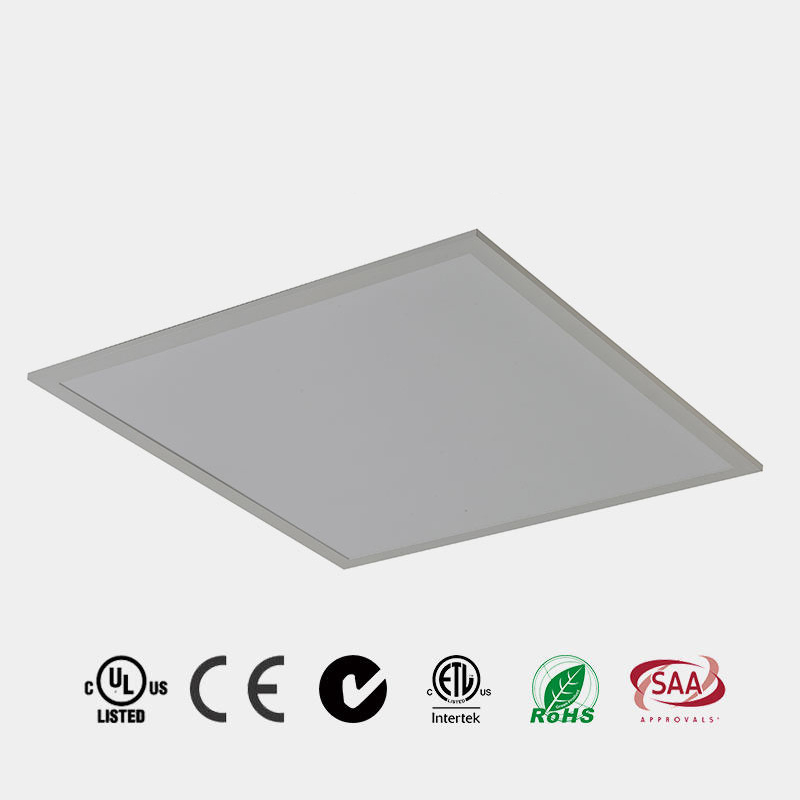

Specification-E2010 Backlit Panel Light

Model
E2010
MOQ
100 PCS
Payment
T/T,LC
Delivery Time
30-35 working days
Start Port
ZhongShan Port
Certification
UL/CUL, ETL/CETL, SAA, CE
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

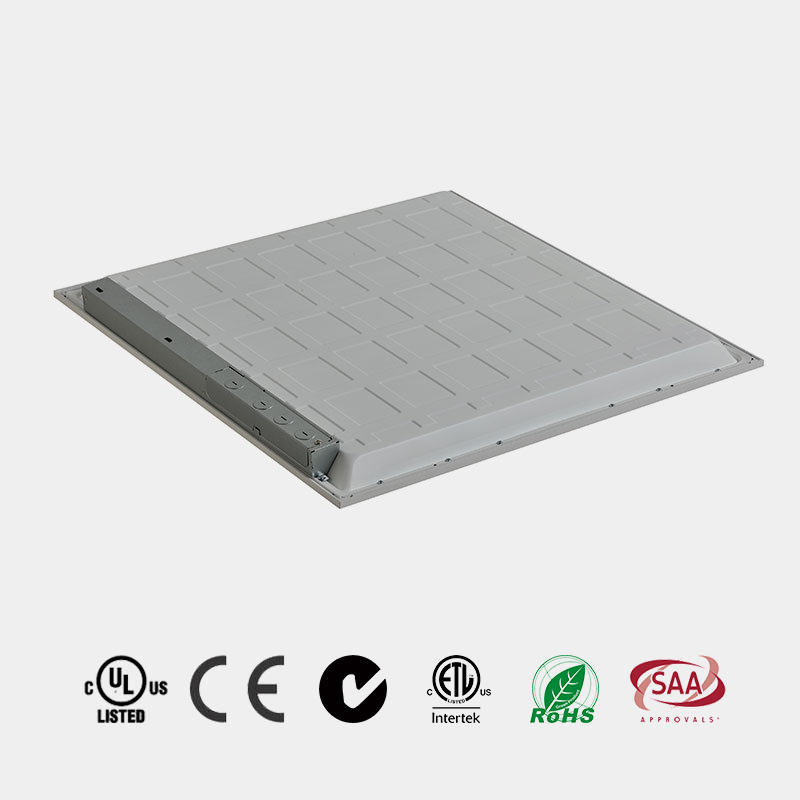

  • ■ CONSTRUCTION
    * Die formed of 0.5mm cold-rolled steel body
    * All steel surface are painted after fabrication with high gloss backed white matte powder painted.
    * High-diffusion milky PC
    * Fully recessed luminaire fits standard T-Grid ceilings.

  • ■ LABELS
    * ETL Listed, approved for dry/damp location unless otherwise noted

  • ■ ELECTRICAL
    * All electrical components are ETL approved, Input Voltage from 120-277V
    * Hongli / Mason/Zhongyang SMD2835 LED chips
    * LED Driver: UL/CUL 120-277V 0-10V LED Driver
    * 5 years warranty

  • ■ OPTIONS
    * Available for dimmable version
    * Available for emergency version
    * Available for installing with sensor

Product Discription
  •     ETL & DLC listed; With LM79 & LM80;

  •     High luminous efficacy 125 lm/w;

  •     50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.

  •     PF>0.90

  •     driver efficiency>87%;THD<20%;

  •      Installation: Recessed or Suspended

  •    Suitable for dry/damp location

  •     Designed for office, conference room etc.

  •     CCT: 3000K,4000K,5000K/ CCT Changeable

  •     Lifetime: 5 years

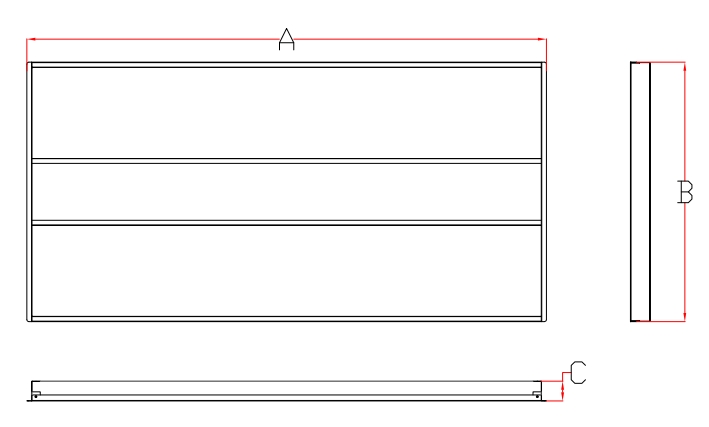

Product dimension
 Model NoABCWATTAGE
E2010-2' *2'23.8"23.8"1.33"20W/30W/40W
E2010-1' *4'47.6"11.8"1.33"20W/30W/40W
E2010-2' *4'47.6"23.8"1.33"30W/40W/50W


Technical data
Total Input Watt20W30W40W30W40W50W20W30W40W
Size2'X2'2'X2'2'X2'2'x4' 2'X4'2'X4'1'X4'1'X4'1'X4'
Calculated L7050000hrs
Delivered Lumens2400 lm3600 lm4800 lm3600 lm4800 lm6000 lm2400 lm3600 lm4800 lm
Luminaire Efficacy Rating120 LM/W
Color Temperature3000-5000K
Color Rendering Index> 80

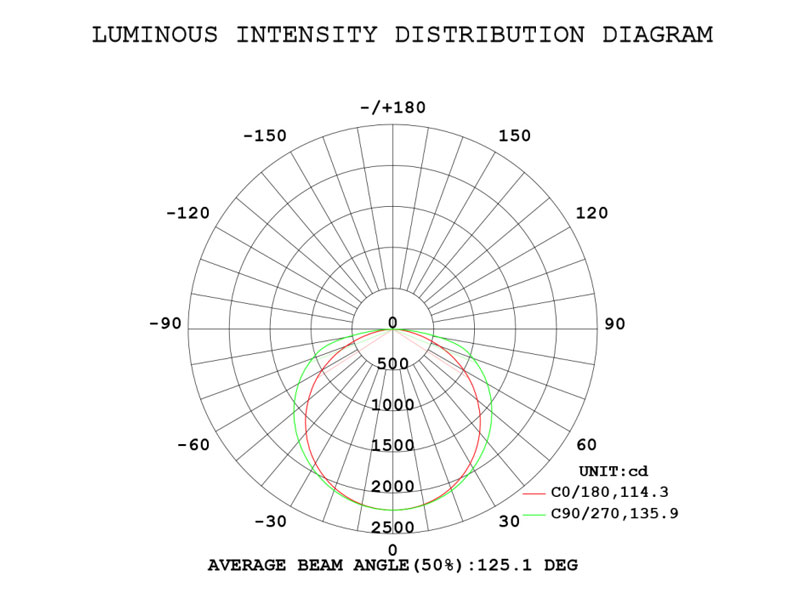

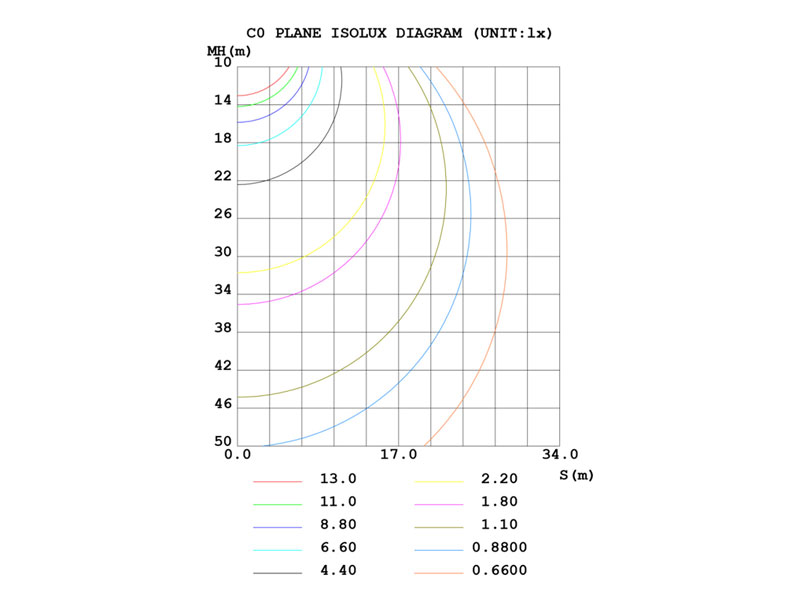

Light distribution
bg

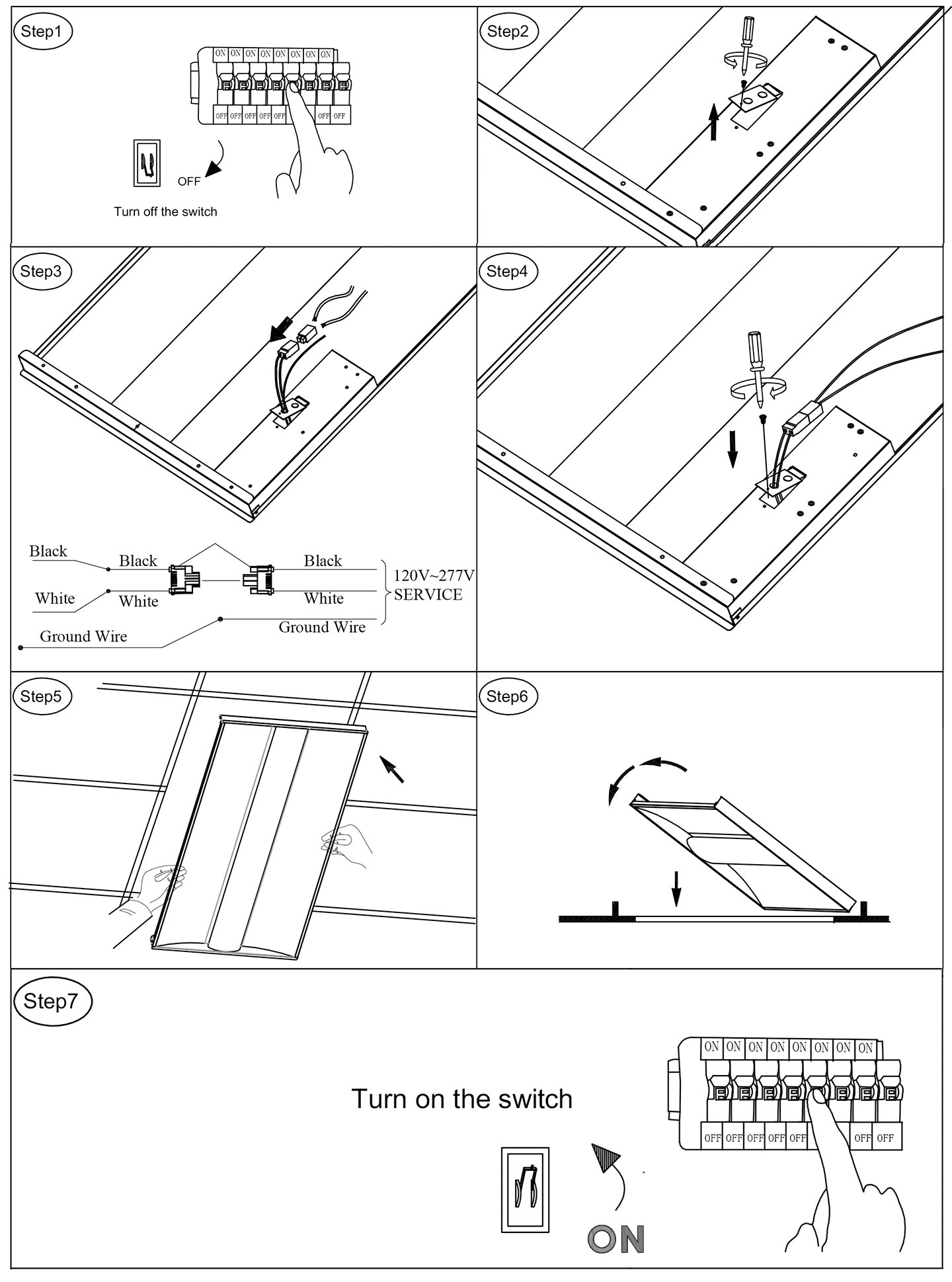

Installation
bg


Warning
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Please keep away from the corrosive substance, and keep the fixture dry and clean.
1
1
Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.

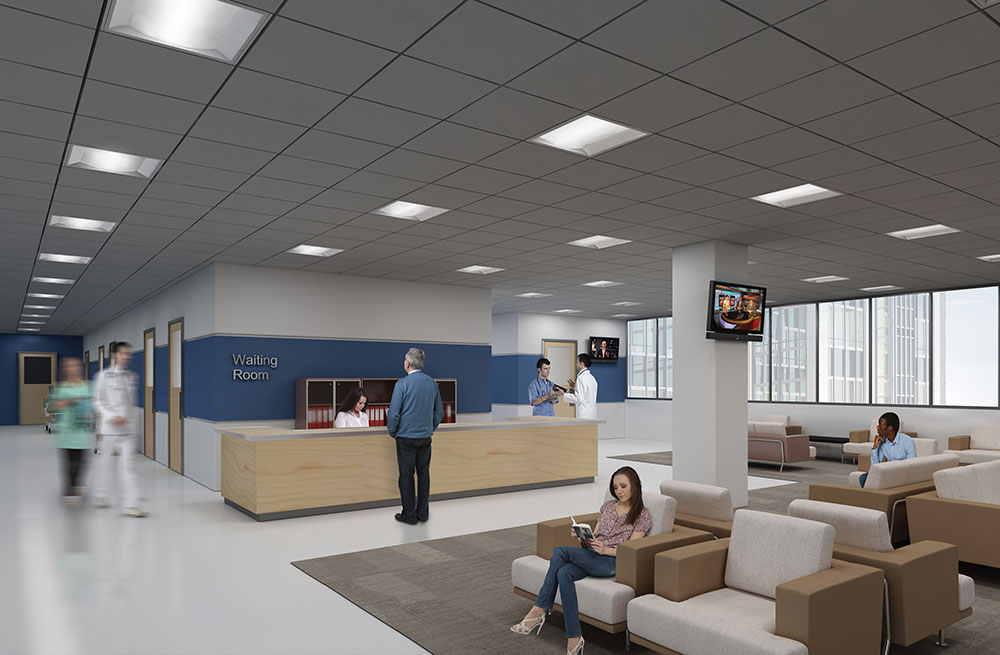

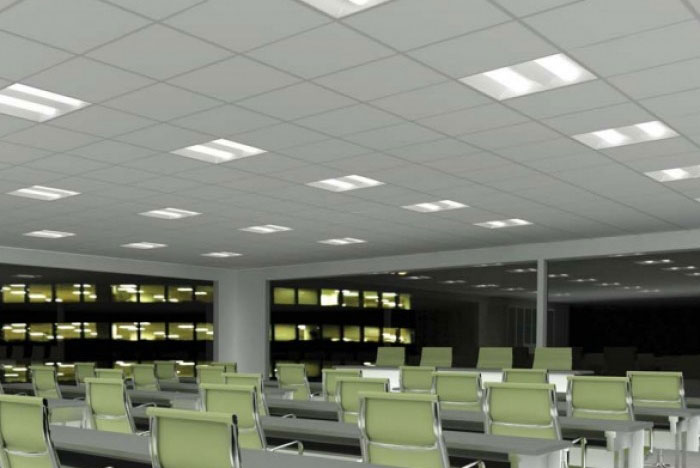

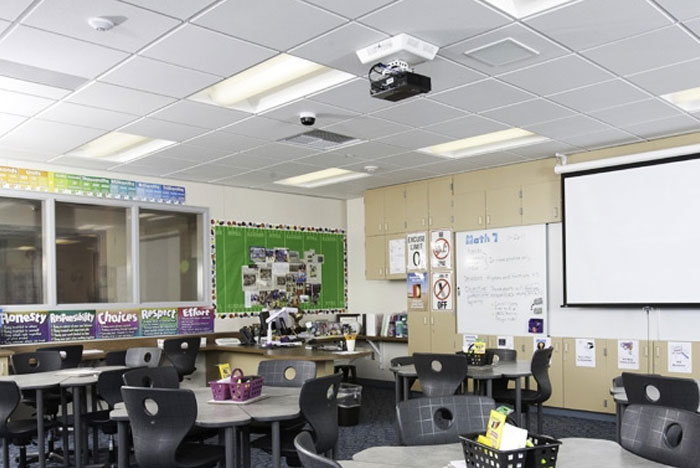

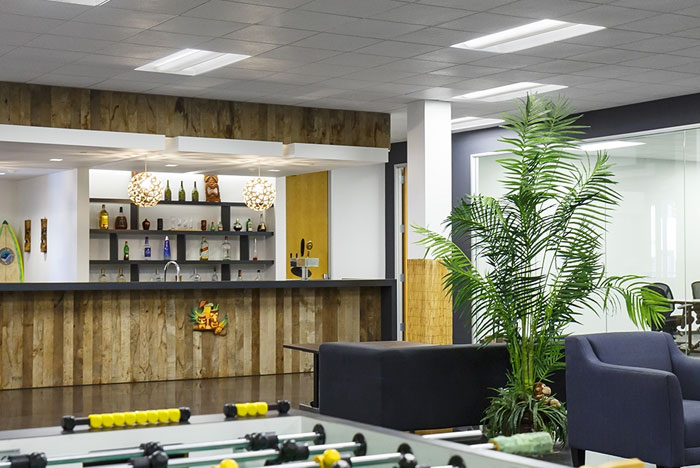

Applications



Office

Class Room

Restaurant

Waiting Room
Applications
bg


Model NoSize & WattsMaster Carton SizeQty/Carton
(LxWxH)
E2010-2'x2'2'x2'25.59"x25.98"x4.92"4
E2010-2'x4'2'x4'51.18"x25.98"x4.92"4
E2010-1'x4'1'x4'51.18"x12.99"x4.92"4
