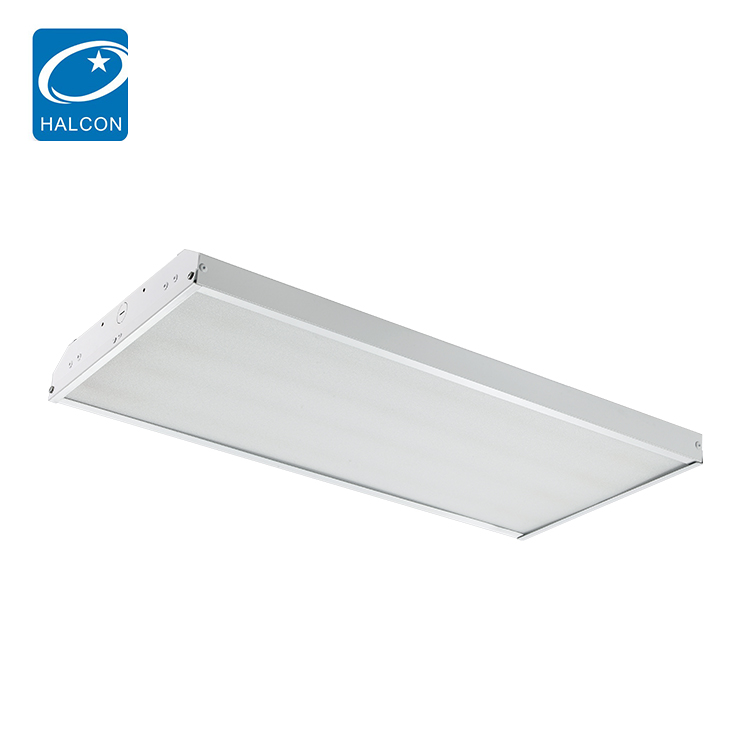

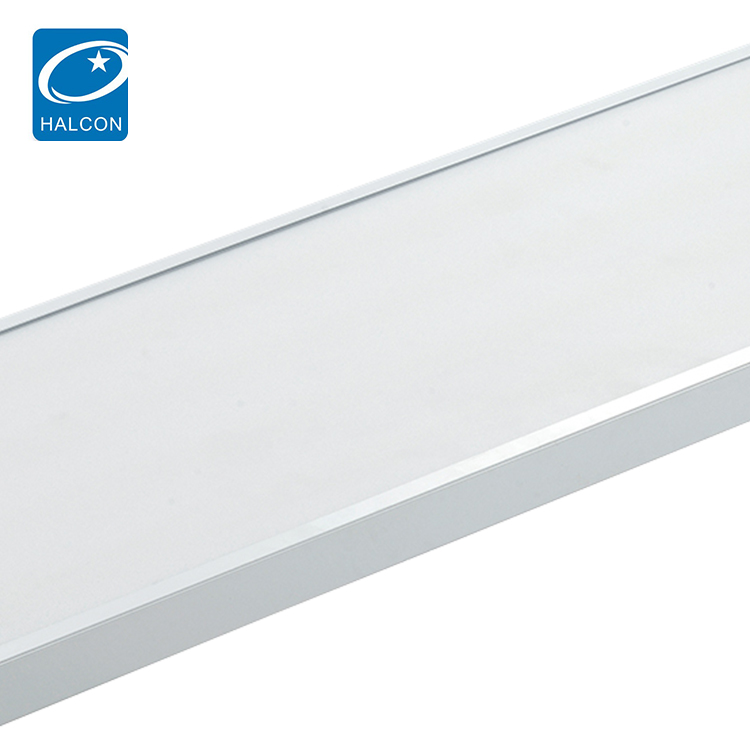

SMD surface mounted dimming 80w 100w 140w 165w 220w 225w 325w commercial Led Linear High Bay Light

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Lighting solutions service:
Lighting and circuitry design
Input Voltage(V):
120-277V/60Hz, 220-240V/50Hz
Lamp Luminous Flux(lm):
21450
CRI (Ra>):
80
Working Temperature(℃):
-20 - 60
Working Lifetime(Hour):
50000
Lamp Body Material:
Frosted Acrylic+Steel Sheet with white powder coated
IP Rating:
IP20
Certification:
ETL, ETL,CETL .
Place of Origin:
Guangdong, China
Brand Name:
Halcon
Model Number:
HG-L225-165W/4ft
Application:
Warehouse, Shopping Store, 4S Car Store, Gymnasiums,Ect., Warehouse, Shopping Store, 4S Car Store, Gymnasiums,Ect.
Light Source:
LED
Warranty(Year):
5-Year
Product Name:
80w 100w 140w 165w 220w 225w 325w commercial Led Linear High Bay Light
power:
80w/100w/140w/165w/200w/225w/325w
PF:
0.95
Size:
605x302x52(mm)
Input voltage:
120-277V/60Hz, 220-240V/50Hz
Light source:
LED
Material:
Frosted Acrylic+Steel Sheet with white powder coated
warranty:
5 years
Luminous Efficacy(lm/w):
130
Product Certification certification
ETL Certified.
UL Certified.

Packaging & Delivery

Selling Units:
Single item
Single package size:
121X32X13 cm
Single gross weight:
8.000 kg
Package Type:
2pcs/ctn
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 To be negotiated

SMD surface mounted dimming 80w 100w 140w 165w 220w 225w 325w commercial Led Linear High Bay Light

Product Description
Model HG-L225-80W/2ft HG-L225-100W/2ft HG-L225-140W/2ft HG-L225-165W/2ft HG-L225-220W/2ft HG-L225-165W/4ft HG-L225-225W/4ft HG-L225-325W/4ft
Power 80W 100W 140W 165W 220W 165W 225W 325W
Product size 605x302x52(mm) 1165x320x52.5(mm)
Input voltage 120-277V/60Hz, 220-240V/50Hz
Certification ETL,CETL .
Light source LED
Material Diffuser:Frosted Acrylic material. Housing: Steel Sheet with white powder coated
CCT 3000K/4000K/5000K
Installation Surface Mounted, Hanging
Drive Approved LED Driver
PF 0.95
Dimmable  Yes
CRI 80
Rated life 50000

Luminous

efficiency( LM/W)

130 (LM/W)
Beam Angle(°) 110 degree
Application Warehouse, Shopping Store, 4S Car Store, Gymnasiums,Ect.

Send your inquiry details and click here for free samples.

Application

Packaging & Shipping



The product has developed rapidly and met the market demands. All Halcon LED lights are environmentally friendly. With so many advantages, the product can perfectly meet the customer's requirement and tends to be used widely in the future market. All Halcon LED lights are environmentally friendly.
