LED Vapor Light-HG-L223

B站不支持收货地址

B站不支持库存规格

Model: HG-L223

MOQ: 100 PCS

Payment: T/T, LC

Delivery Time: 30-35 working days

Start Port: ZhongShan Port

Certification: UL/CUL, ETL/CETL, SAA, CE

B站不支持优惠卷

Inquire Online
download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

Specification

Model No.	Power	Input Voltage	Input Current	LxWxH(mm)	Luminous Flux	Lumi nous Efficacy	OCT	Ra	PF	V^rranty
HG-L223-4FT	40W	AC120-277V	0.33A	1200x125x90	4800LM	120lm/w	3000K 4000K 5000K	> 80	> 0.9	5Years
	60W		0.5A		7200LM

Packing/Weight

Model No.	Master Carton Lx Wx H(mm)	Qty/Ctn (PCS)	N.W (KG)	G.W (KG)
HG-L223-4FT	1230x305x280	6	13	14.6

■ Controls
* High-diffusion light-milky PC diffuser
* Grey PC plastic housing with UV rating
* 0.5mm steel sheet gear tray with white powder coated
■ Options
* Available for dimmable version
* Available for emergency version
* Available for installing with sensor
■ Electrical
* AII electrical components are UL approved, I叩ut Voltage from 120-277V
* LED Driver: UL/CUL 120-277V 0-1OV LED Driver
* 5 years warranty

■ Labels
* ETL Listed, approved for dry/damp location unless otherwise noted
■ Product Discription
* ETL listed; With LM79 & LM80;
* High luminous efficacy 120 Im/w;
* 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
* Driver efficiency>87%; THD<20%;
* Installation: Surface or Suspended
* Suitable for dry/damp location

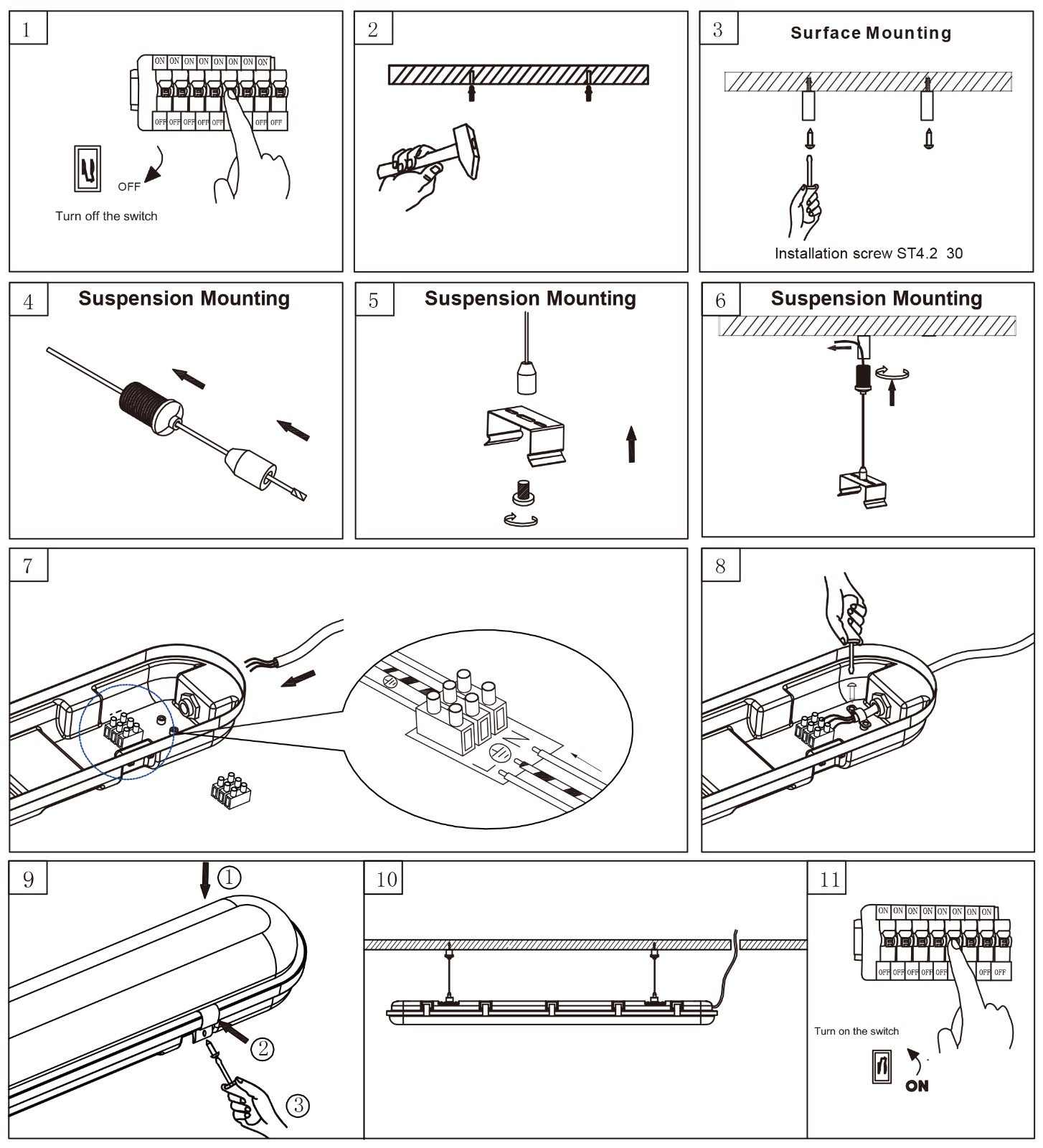

Installation Manual

Safety Notice

1. Please check and en sure the products have not in damage before use, if there any breakage please do not in stall and use.

Please keep the kids far away from the product and don!t let them touch any live parts.

Please keep packing materials far away from kids when playing, to prevent kids careless putting packing material on their head or directlyinhaling, swallowing, causing suffocation.

The installation of the product must be certified by professional electrician.

Forbid covering anything on product.

To ensure that the power cord has eno ugh length and do not be subjected to tension or tangen tial force, avoid too much tension and power cord ties when mounting connection of light fittings.

To protect the eyes from LED light damage please avoid long time looking straight into the LED light-emitting surface.

Please be sure power is off before clean light fitting, use dry cloth to clean.
