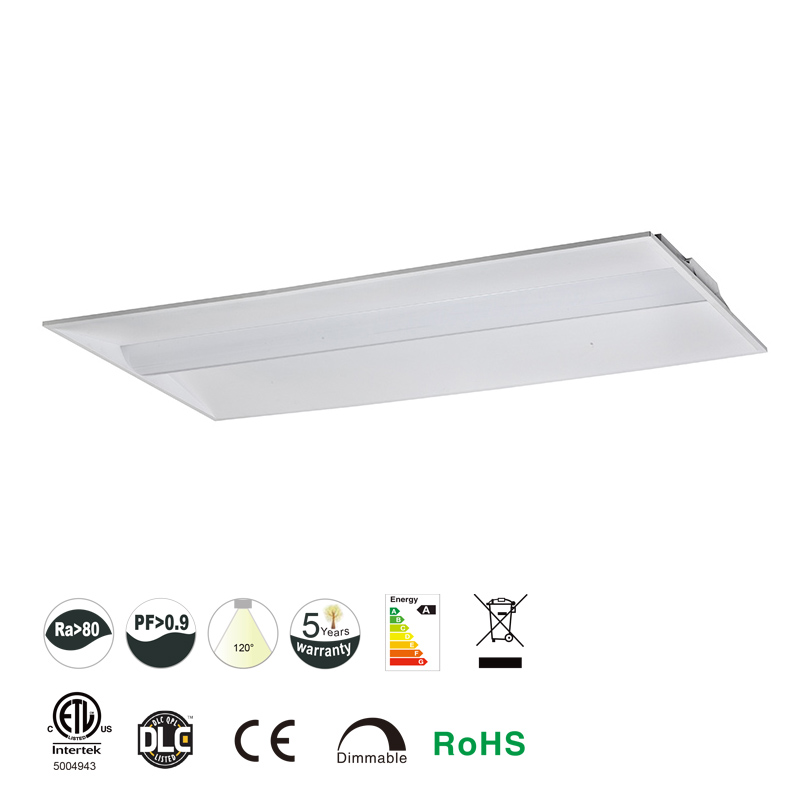

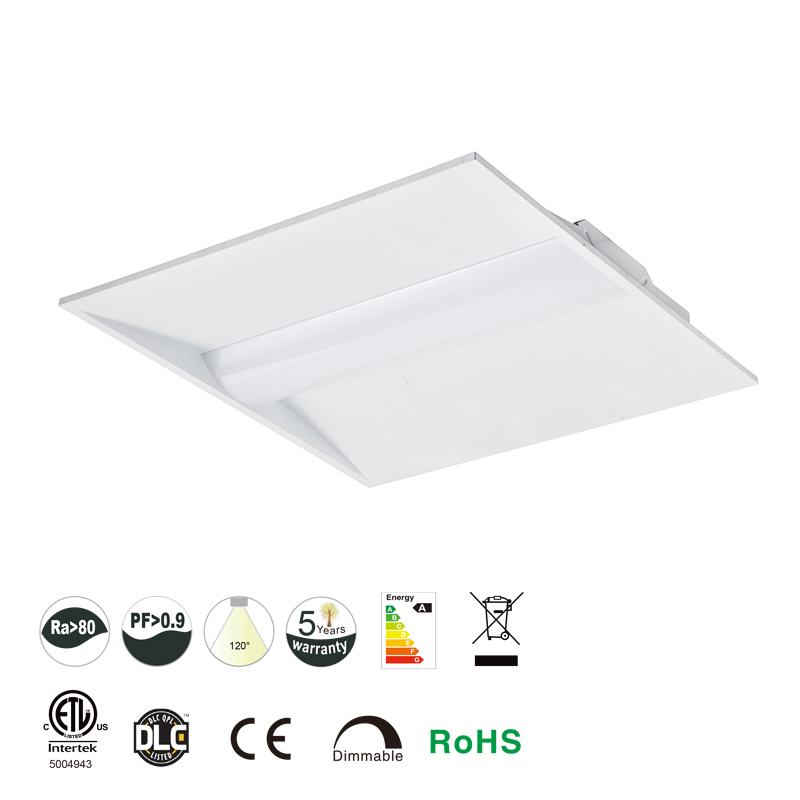

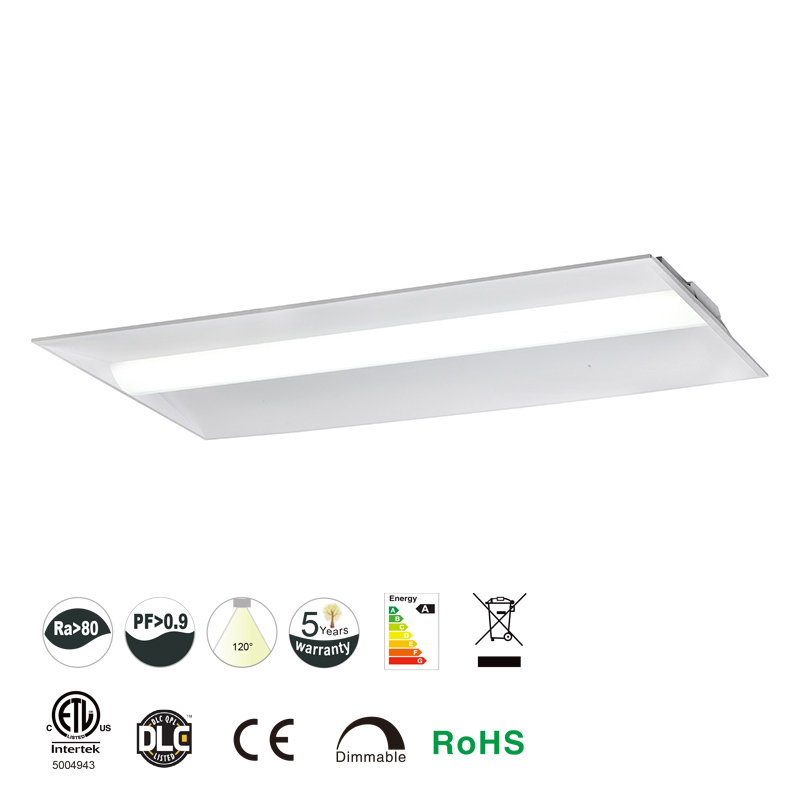

Led Troffer | Halcon

Features & Benefits

1. 130lm/w for options.

2. Die formed of 0.5mm cold-rolled steel body.

3. 0-10v dimming, universal voltage: 100-277v.

4. Wide application for: school, hospital, super market, office and warehouse.

5. Fully recessed luminaire fits standard T-Grid ceilings.

6. High-diffusion light-milky PC diffuser .

7. 5-year warranty.

Product Dimension

这里可以自定义设置

HG-L249-22

HG-L249-24

Model	L×W×H
HG-L249-22	603×603×55 (mm) 23.74"×23.74"×2. 17"
HG-L249-24	1213×603×55 (mm) 47.76"×23.74"×2. 17"

Specification

Part No.	Power	Input Voltage	Luminous Flux	Luminous Efficacy	CCT	Viewing Angle	Ra	PF	Warranty
HG-L249-22/20W	20W	AC100-277V	2600lm	130lm/W	3000K 3500K 4000K 5000K	120 °	>80	>0.9	5Years
HG-L249-22/24W	24W		3120lm
HG-L249-22/36W	36W		4680lm
HG-L249-24/24W	24W		3120lm
HG-L249-24/36W	36W		4680lm
HG-L249-24/42W	42W		5460lm
HG-L249-24/50W	50W		6500lm
HG-L249-22/ 20W/ 24W/ 36W	20W/24W/36W		4680lm
HG-L249-24/ 24W/ 36W/42W/ 50W	24W/36W/42W/50W		6500lm
HG-L249-22/20W-SN	20W		2600lm
HG-L249-22/24W-SN	24W		3120lm
HG-L249-22/36W-SN	36W		4680lm
HG-L249-24/24W-SN	24W		3120lm
HG-L249-24/36W-SN	36W		4680lm
HG-L249-24/42W-SN	42W		5460lm
HG-L249-24/50W-SN	50W		6500lm
HG-L249-22/ 20W/ 24W/ 36W-SN	20W/24W/36W		4680lm
HG-L249-24/ 24W/36W /42W/ 50W-SN	24W/36W/42W/50W		6500lm

The following multiple functions can be achieved according to customers' requests:
1. CCT options: 3000K, 3500K, 4000K, 5000K.
2. Available with external or built-in microwave motion sensor.
3. Emergency: the power is 8W, it can still work in 1.5hrs while emergency situation.

Important

◆ Read this instruction carefully before installation. Keep it for further reference.
◆ Make electrical and grounded connections in accordance with the national electrical code and any applicable code. Always turn off the power supply before installation.
◆ This product must be installed in accordance with the applicable installation code by a qualified electrician ◆ Who is familiar with the construction and operation of the product and the hazards involved.

Warning

◆ Risk of fire or electric shock. Fixture installation requires knowledge of luminaires electrical systems. If not qualified, DO NOT attempt installation. Contact a qualified electrician.
◆ Risk of fire or electric shock. Suitable for wet locations. Always turn off the power supply before installation.
◆ Risk of fire or electric shock. Suitable for non-insulated surface and frame. DO NOT cover fixture with insulation liner or similar material.
◆ DO NOT install fixture on unstable, loose or easily breakable surface.
◆ DO NOT exert force on the surface of the fixture.
