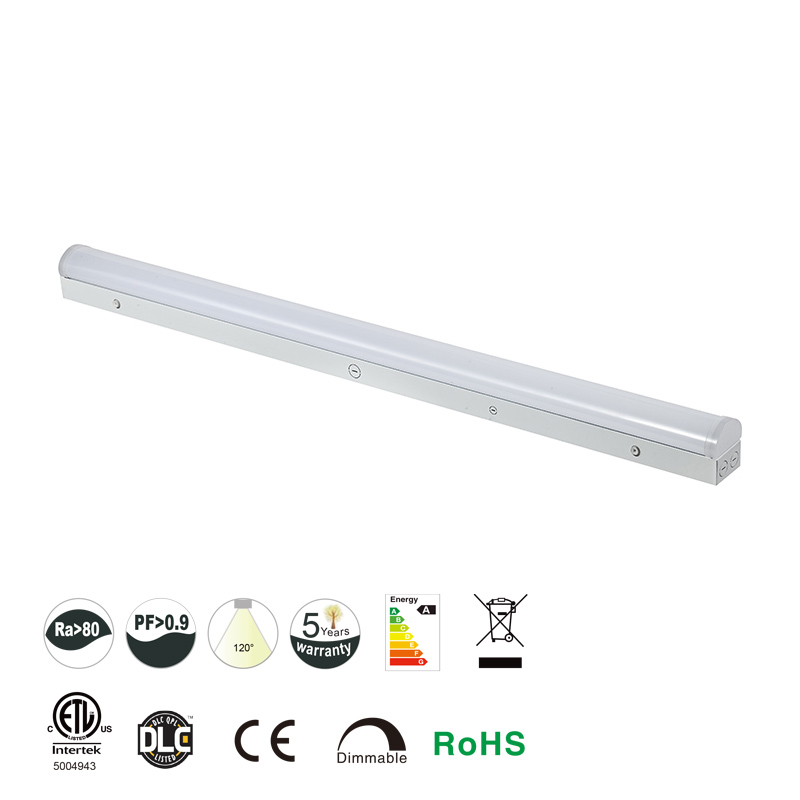

Led Strip(led Batten)-hg-l205c

Features & Benefits

1. 130lm/w for options.
2. Die formed of 0.5mm cold-rolled steel body.
3. 0-10v dimming, universal voltage: 100-277v.
4. Available with suspending installation and surface- mounted installation.
5. Wide application for: school, hospital, super market, office and warehouse.
6. 2ft, 4ft and 8ft dimensions for variety choices.
7. 5-year warranty.

Product Dimension

这里可以自定义设置

Model

L×W×H

HG-L205B-252F
HG-L205B-252F-SN

HG-L205B-252F-EM

HG-L205B-252F-SN/EM

609x75x83 (mm)

23.97"x2.95"x3.26"

HG-L205B-404F
HG-L205B-404F-SN

HG-L205B-404F-EM

HG-L205B-404F-SN/EM

1220x75x83 (mm)

48.03"x2.95"x3.26"

HG-L205B-658F

2438x75x83 (mm)

95.98"x2.95"x3.26"

Specification

Part No.	Power	Input Voltage	LuminousFlux	Luminous Efficacy	CCT	Viewing Angle	Ra	PF	Warranty
HG-L205B-252F HG-L205B-252F-SN HG-L205B-252F-EM HG-L205B-252F-SN/EM	15W/20W/25W	AC100-277V	3250lm	130lm/W	3000K 3500K 4000K 5000K	120°	>80	>0.9	5Years
HG-L205B-404F HG-L205B-404F-SN HG-L205B-404F-EM HG-L205B-404F-SN/EM	25W/30W/40W		5200lm
HG-L205B-658F	55W/60W/65W		8450lm

The following multiple functions can be achieved according to customers' requests:
1. CCT options: 3000K,3500K, 4000K, 5000K.
2. Available with external or built-in microwave motion sensor.
3. Emergency: the power is 8W, it can still work in 1.5hrs while emergency situation.

Important

◆ Read this instruction carefully before installation. Keep it for further reference.
◆ Make electrical and grounded connections in accordance with the national electrical code and any applicable code. Always turn off the power supply before installation.
◆ This product must be installed in accordance with the applicable installation code by a qualified electrician who is familiar with the construction and operation of the product and the hazards involved.

Warning

◆ Risk of fire or electric shock. Fixture installation requires knowledge of luminaires electrical systems. If not qualified, DO NOT attempt installation. Contact a qualified electrician.
◆ Risk of fire or electric shock. Suitable for wet locations. Always turn off the power supply before installation.
◆ Risk of fire or electric shock. Suitable for non-insulated surface and frame. DO NOT cover fixture with insulation liner or similar material.
◆ DO NOT install fixture on unstable, loose or easily breakable surface.
◆ DO NOT exert force on the surface of the fixture.

Packing /weight

Size	Outer box (LWH)	Qty/Ctn (pcs)	N.W/pcs (lbs/Kg)	G.W/Ctn (lbs/Kg)
2ft	25.39"x10.8"x8.66" 645275220mm	6	2.4/1.1	17.2/7.8
4ft	49.4"x10.8"x8.66" 1255295220mm	6	3.75/1.7	26.5/12.1
8ft	97.44"x7.48"x8.66" 2474190220mm	4	7.2/3.28	32.5/14.8

Testing Report

Applications
