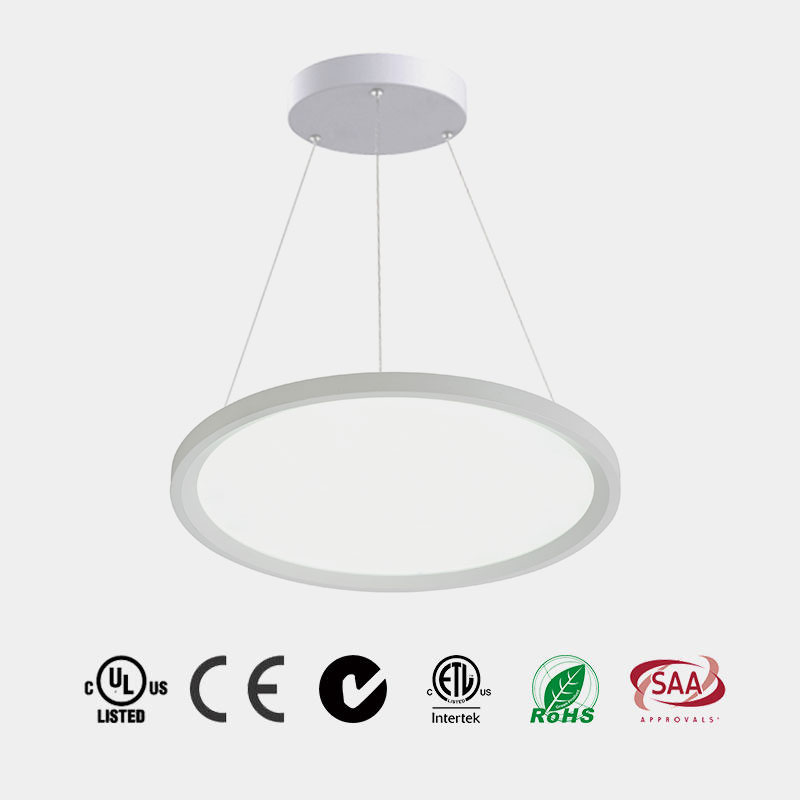

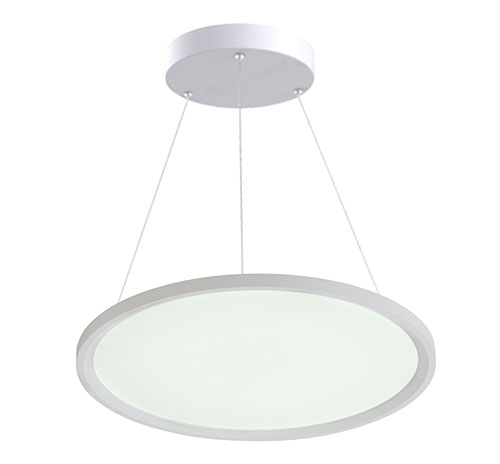

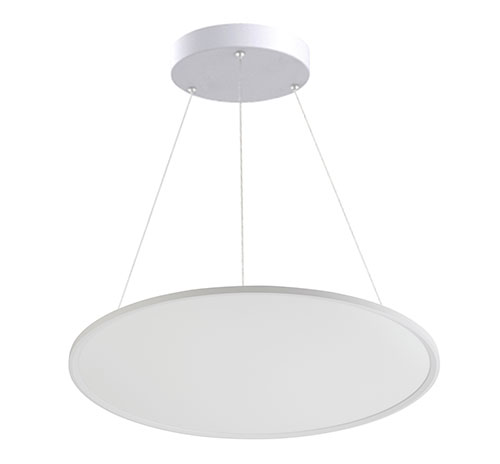

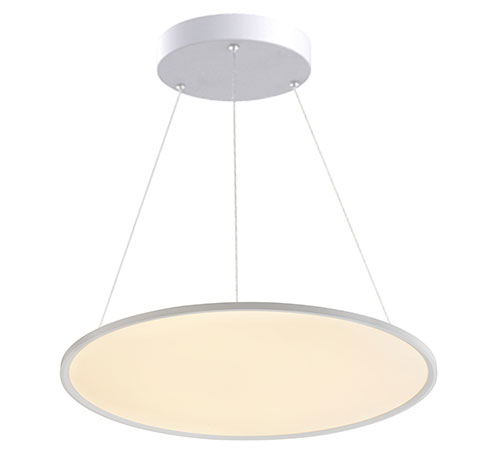

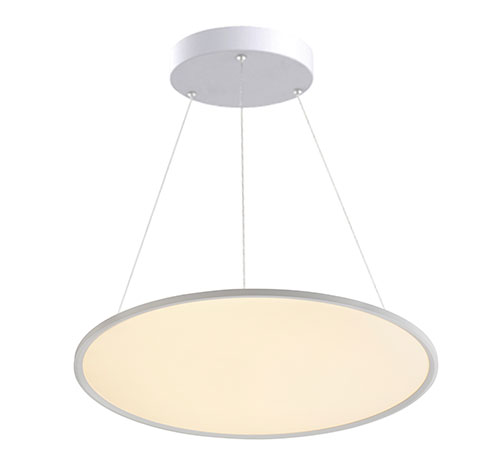

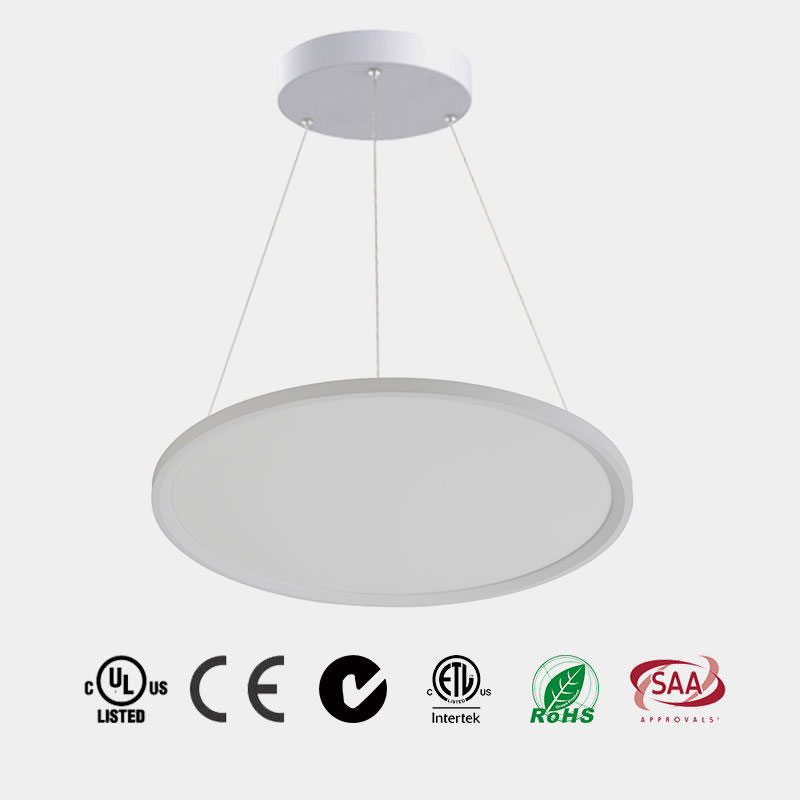

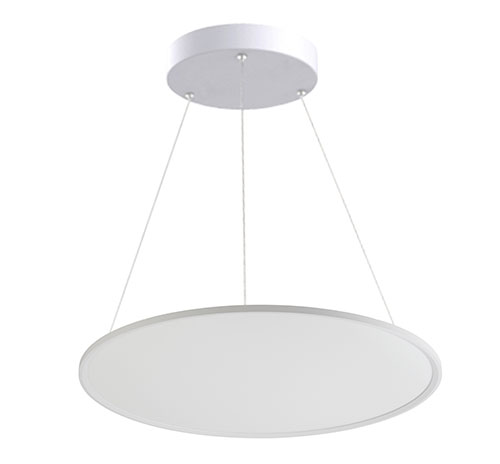

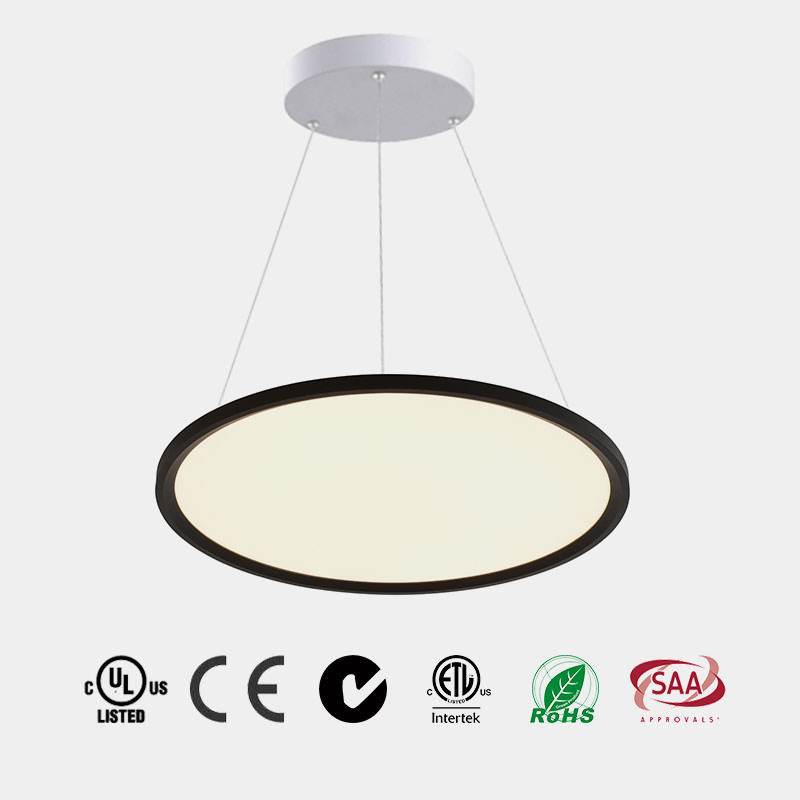

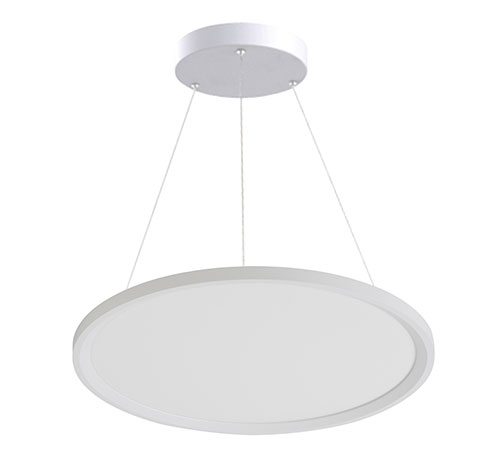

LED round Pendant Light P2101
B站不支持收货地址
B站不支持库存规格
MOQ
100 PCS
Payment
T/T, LC
Delivery Time
30-35 working days
Start Port
ZhongShan Port
Certification
UL/CUL, ETL/CETL, SAA, CE
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障



Modern Round LED ceiling light for Bed Room, Living room & Dining Room.

  • ■ Modern beautiful ring LED pendant light design will never outdated, add more fashion elements to your room.

  • ■ Ideal luminous output up to 6460lm (85lm/w) with CCT cool white 6000k; High color rendering with CRI>80; Dimmable,

  • ■ And the upward and downward light creates a better lighting effect

  • ■ Perfect for kitchen island, study room, living room, dining room, bar counter

  • ■ and downward light creates a better lighting effect full dimming from 0.01% to 100% on standard dimmer switches;

Product Features
  •     ETL & DLC listed; With LM79 & LM80;

  •     2ft: 100W MAX & 220W MAX available; 4ft: 225W MAX & 325W MAX available;

  •     High luminous efficacy 130lm/w;

  •     50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.

  •     PF>0.90

  •     Driver efficiency>87%;THD<20%;

  •      Installation:  chain mounting

  •    Suitablefor dry/damp location;

  •     Designedfor warehouses, gymnasiums, and industrial spaces;

  •     CCT: 4000K & 5000K;

  •     Lifetime: 5 years

Product Dimension
 Model NoDIAMETER
P1902-40400mm
P1902-50500mm
P1902-60600mm
P1902-78780mm
P1902-1001000mm
P1902-1201200mm


Technical data
Total Input Watt 40CM40CM50CM50CM60CM60CM78CM78CM100CM100CM120CM120CM
Wattage25W36W32W42W42W50W50W60W60W70W70W80W
SMD LED Chips BrandBridgelux




Calculated L7050,000 hrs




Delivered Lumens 2500 lm3600 lm3200 lm4200 lm4200 lm5000 lm5000 lm6000 lm6000 lm7000 lm7000 lm8000 lm
Luminaire Efficacy 100 LM/W




Color Temperature 3000K, 4000K, 5000K, 5700K




Color Rendering Index > 80

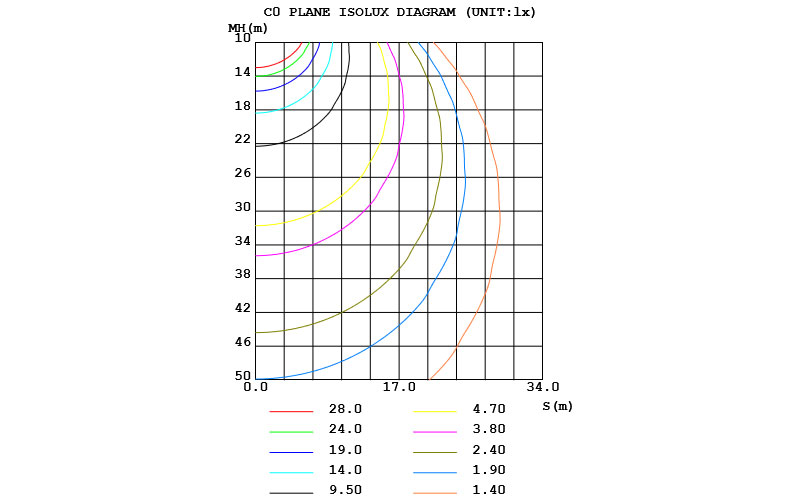

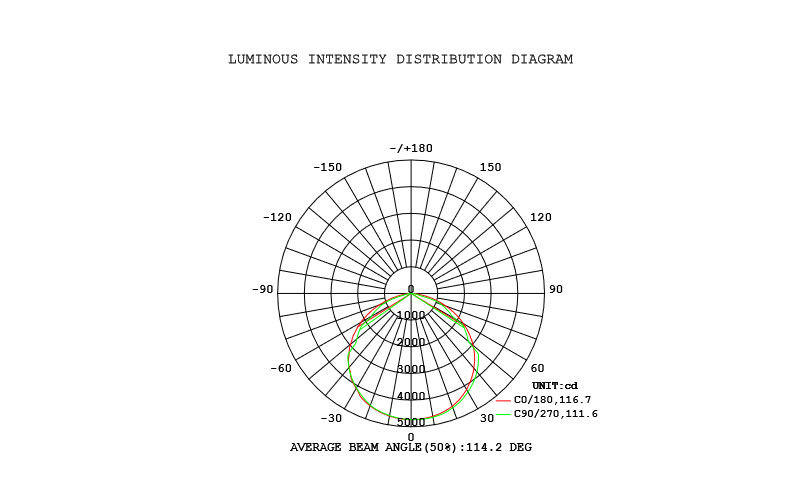

Light distribution
bg


Installation For Pipe
bg




Fix the hanging Bracket into the high bay

Screw up the pipe into the bracket

Turn off the power,make the wire connection to the quick connector
Warning
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Please keep away from the corrosive substance, and keep the fixture dry and clean.
1
1
Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.

Applications




Meeting Room


Dinning Room

Dinning Room
Package/weight
bg


Model NoMaster ctn Size
Qty/CtnNWGW
(LxWxH)(pcs)(lbs)(lbs)
P1902-4046x46x12cm
12.50 3.50
P1902-5055x55x12cm
13.50 4.50
P1902-6066x66x12mm
14.50 5.50
P1902-7884x84x12mm
15.50 6.50
P1902-100105x105x12mm
16.50 7.50
P1902-120125x125x12mm
17.50 8.50
