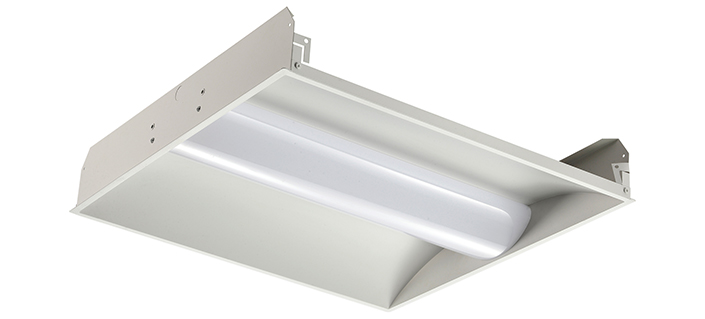

LED TROFFER
■ CONSTRUCTION
Die formed of 0.6mm cold-rolled steel body
All steel surface are painted after fabrication with high gloss backed white matte powder painted.
High reflectance backed white acrylic paint finished
High-diffusion light-milky PC diffuser
Fully recessed luminaire fits standard T-Grid ceilings.
■ LABELS
CE, UL and cUL Listed, approved for dry/damp location unless otherwise noted
■ ELECTRICAL
All electrical components are UL approved, Input Voltage from 120-277V
Brdigelux/Edison SMD2835 LED Chips
Nextech 120-277V 1-10V LED Driver
5 years Warranty
■ OPTIONS
1-Available for dimmable version
2-Available for emergency version
3-Available for installing with sensor
| Total Input Watt | 24W | 36W | 42W | 50W | 68W |
| Calculated L70 | 50,000 hours | ||||
| Delivered Lumens | 3000 lm | 4500 lm | 5250 lm | 6250 lm | 8500 lm |
| Luminaire Efficacy Rating | 125 lm/W | ||||
| Correlated Color Temperature | 3000K,3500K,4000K, 5000K | ||||
| Color Rendering Index | >80 | ||||
LED System For North American
| Model Number | HG-L249-24W | HG-L249/DM-XX | HG-L249-36W/L | HG-L249-42W | HG-L249/DM-XXX |
| Total Input Watt | 24W | 36W | 36W | 42W | 50W |
| Size | 2'x2 | 2'x2' | 2'x4' | 2'x4' | 2'x4' |
| Calculated L70 | 50,000 hrs | ||||
| Delivered Lumens | 3000 lm | 4500 lm | 4500 lm | 5250 lm | 5500 lm |
| Luminaire Efficacy Rating | 125 LM/W | ||||
| Correlated Color Temperature | 4000K,4500K,5000K | ||||
| Color Rendering Index | >80 | ||||
