LED Pendant Light-P1836

B站不支持收货地址

B站不支持库存规格

Model: P1836

MOQ: 100 PCS

Payment: T/T, LC

Delivery Time: 30-35 working days

Start Port: ZhongShan Port

Certification: UL/CUL, ETL/CETL, SAA, CE

B站不支持优惠卷

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

OFFICE/ ARCHTECTRUAL/ SCHOOL/DISPLAY CENTRES

it contributes to comfortable, healthy workplaces by lighting the task, face and space.

It produces soft, 360° light with no visible LEDs.

To complete the range, the recessed version is now joined by IQ Wave surface and suspended.

Available in 1200 mm and 1500 mm, they can be joined together in a continuous line, to create a sleek look.

It is available with lumen packages ranging from 2600 lm to 6700 lm, in colour temperatures of 3000K or 4000K

The surface mounting offers extra demanding for school applications.

The special optical design achieves high efficacy, and even more energy can be saved thanks to control options including presence/absence detection and daylight dimming

■ Controls
Fixture can be equipped with an occupancy sensor.
Devices are factory-installed and require minimal labor to set up during fixture installation.
■ Dimming
Drivers come standard with DALI Dimming version
■ Finishes
Standard fixture is powder coated on surface

■ Product Features
* ETL & DLC listed; With LM79 & LM80;
* 2ft: 18W,25W; 4ft: 30W, 36W
* High luminous efficacy 100 LM/W;
* 50,000 hours warranty Osram/Phillip/Tridonic/ Lifud LED Driver, flickering free.
* Driver efficiency ＞87%; THD<20%;
* Installation: Suspended, Flush mount.
* Suitablefor dry/damp location;
* Designed for office/architectrual/school/display centres
* CCT: 3000K,4000K & 5000K;
* Lifetime: 5 years

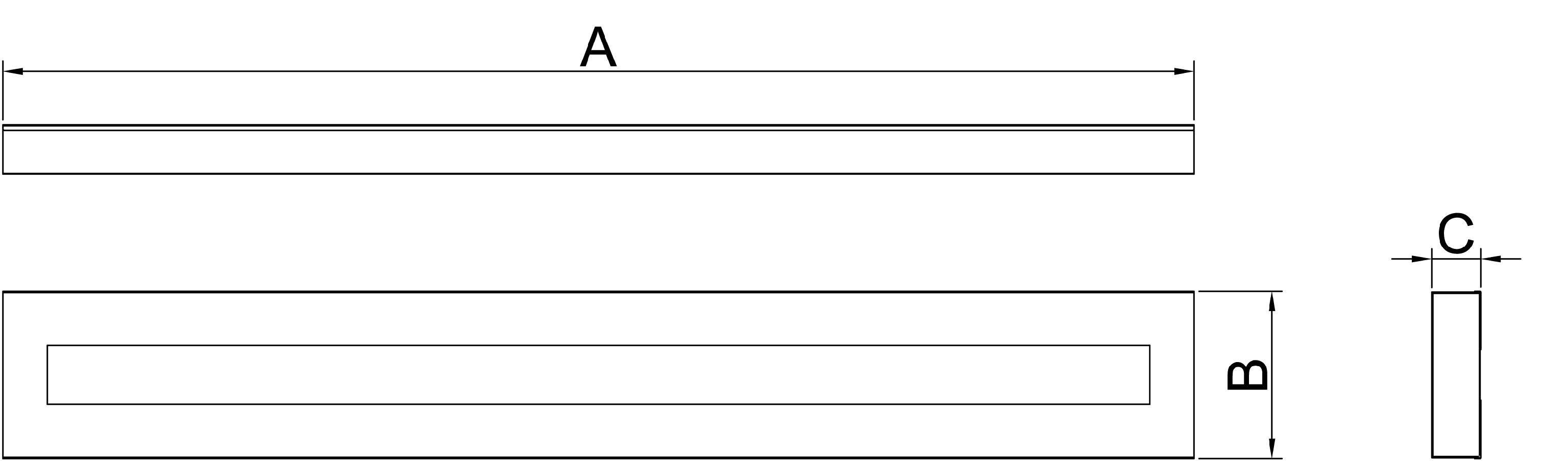

Product Dimension

Model No	A	B	C
P1836-18W/2ft	23.85"	6.69"	1.96"
P1836-25W/2ft	23.85"	6.69"	1.96"
P1836-30W/4ft	47.48"	6.69"	1.96"
P1836-36W/4ft	47.48"	6.69"	1.96"

Technical Data

Total Input Watt	18W	25W	30W	36W
SMD LED Chips Brand	2ft	2ft	4ft	4ft
Calculated L70	50,000hrs
Delivered Lumens	1980 lm	2750 lm	3300 lm	3960 lm
Luminaire Efficacy Rating	110 LM/W
Correlated Color Temperature	3000K, 4000K, 5000K
Color Rendering Index	> 80

Light Distribution

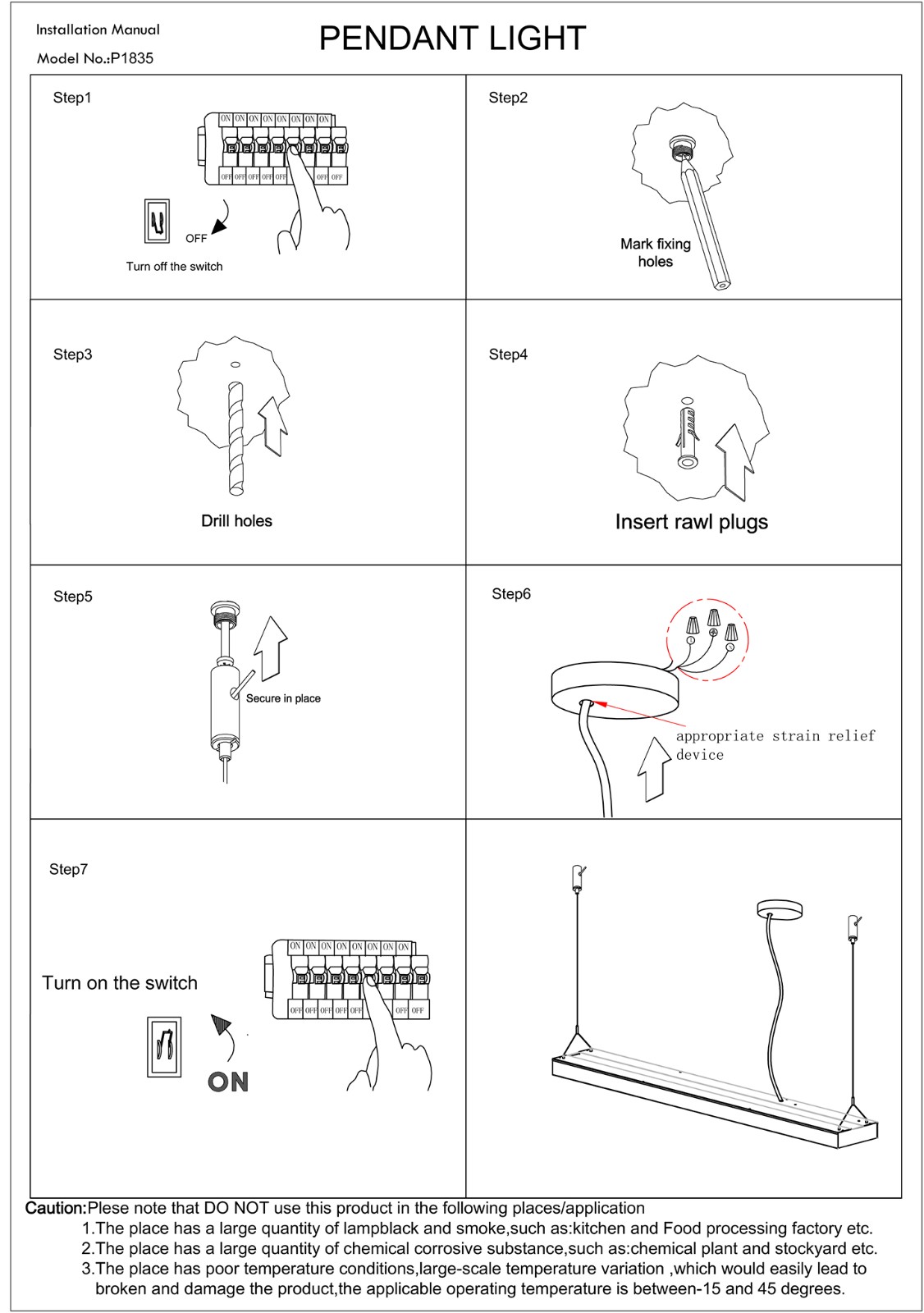

Installation For Hanging

Applications

Office

Conference Room

Package/weight

Model No	Master Carton Size	Qty/Carton
	(LxWxH)	(pcs)
P1836-18W/2ft	24.41"x7.10"x2.36"	1
P1836-25W/2ft	24.41"x7.10"x2.36"	1
P1836-30W/4ft	48.03"x7.10"x2.36"	1
P1836-40W/4ft	48.03"x7.10"x2.36"	1
