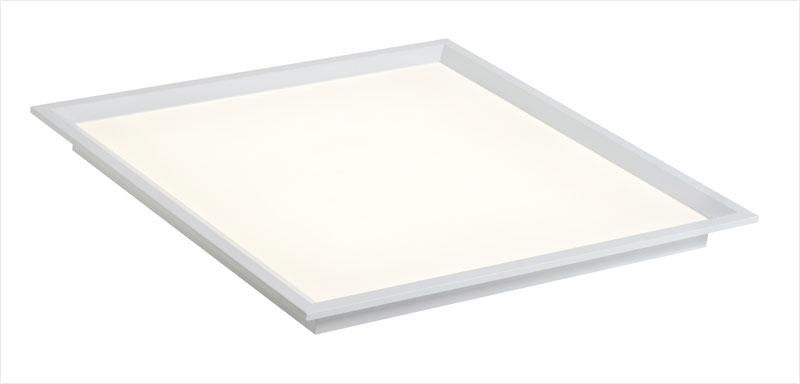

LED Panel Light(LED Troffer)-E2101
B站不支持收货地址
B站不支持库存规格
Model
E2101
MOQ
100 PCS
Payment
T/T, LC
Delivery Time
30-35 working days
Start Port
ZhongShan Port
Certification
UL/CUL, ETL/CETL, SAA, CE
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

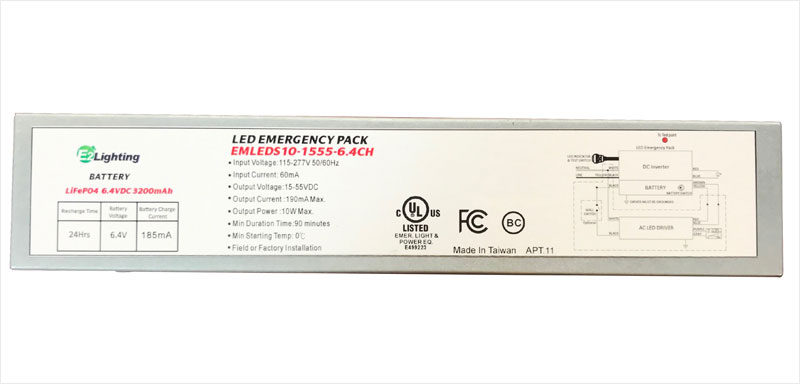

Emergency Kits

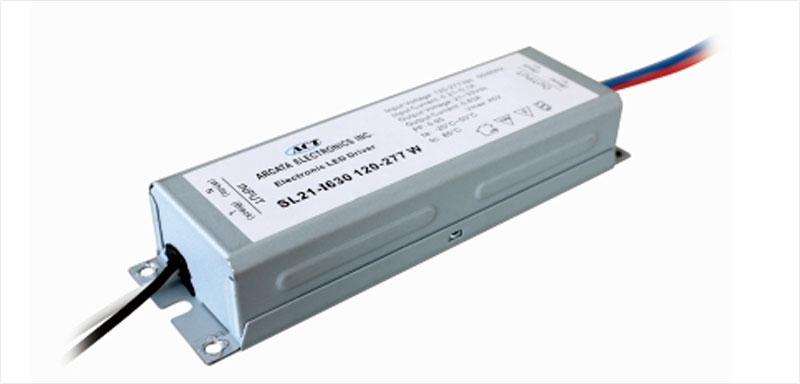

0-10V Dimmable UL listed Driver





  • ■ Construction
    * Die formed of 0.5mm cold-rolled steel body
    * All steel surface are painted after fabrication with high gloss backed white matte powder painted.
    * High-diffusion milky PC
    * Fully recessed luminaire fits standard T-Grid ceilings.

  • ■ Electrical
    * All electrical components are ETL approved, Input Voltage from 120-277V
    * Hongli / Mason/Zhongyang SMD2835 LED chips
    * LED Driver: UL/CUL 120-277V 0-10V LED Driver
    * 5 years warranty

  • ■ Labels
    * ETL Listed, approved for dry/damp location unless otherwise noted


  • ■ Product Discription
    * ETL & DLC listed; With LM79 & LM80;
    * High luminous efficacy 125 lm/w;
    * 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
    * PF>0.90
    * driver efficiency>87%; THD<20%;
    * Installation: Recessed or Suspended
    * Suitable for dry/damp location
    * Designed for office, conference room etc.
    * CCT: 3000K, 4000K, 5000K/ CCT Changeable
    * Lifetime: 5 years

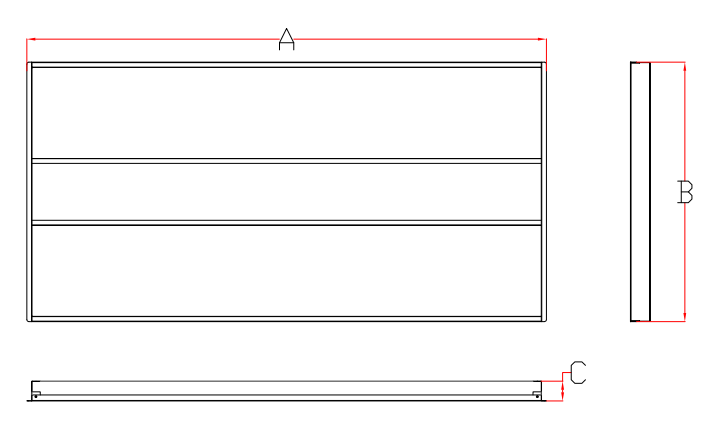

Specification
bg

Model NoABCWATTAGE
E2101 -2'*2'23.8"23.8"1.33"20W/30W/40W
E2101 -1'*4'47.6"11.8"1.33"20W/30W/40W
E2101 -2'*4'47.6"23.8"1.33"30W/40W/50W
Technical Data
bg
Total Input Watt20W30W40W30W40W50W20W30W40W
Size2'X2'2'X2'2'X2'2'x4' 2'X4'2'X4'1'X4'1'X4'1'X4'
Calculated L7050000hrs
Delivered Lumens2400 lm3600 lm4800 lm3600 lm4800 lm6000 lm2400 lm3600 lm4800 lm
Luminaire Efficacy Rating120 LM/W
Color Temperature3000-5000K
Color Rendering Index> 80

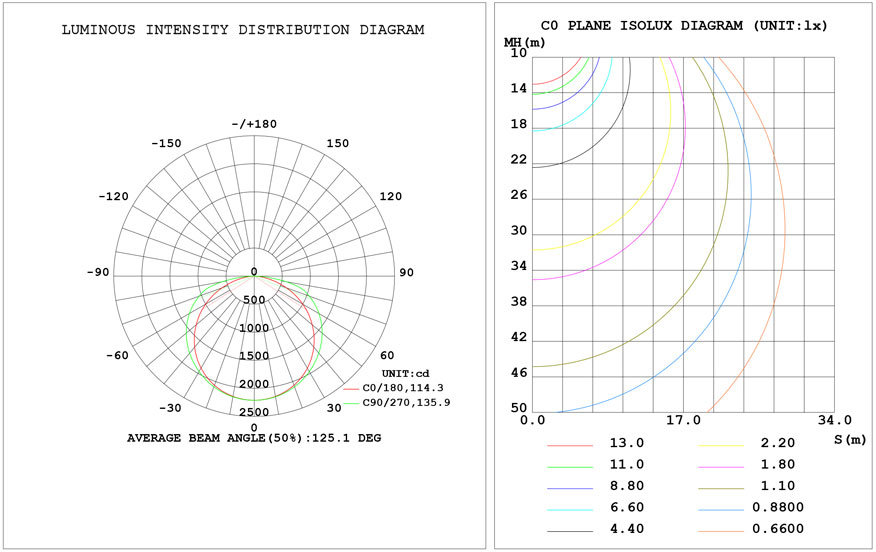

Light Distribution
bg

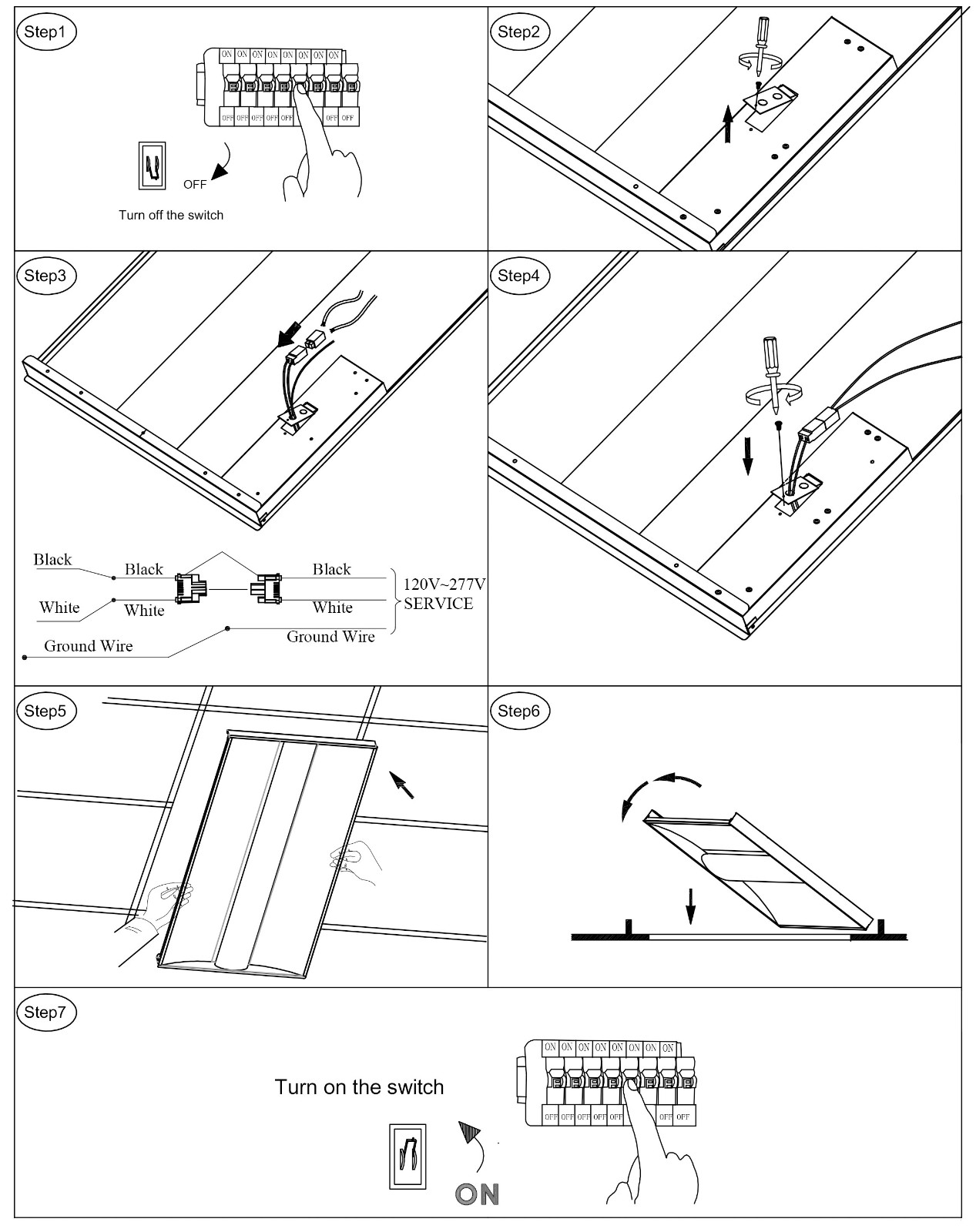

Installation Instruction

bg

Warning
bg
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Please keep away from the corrosive substance, and keep the fix ture dry and clean.
1
1
Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.


Package/weight
bg
Model NoSize & WattsMaster Carton SizeQty/Carton
(LxWxH)
E2101 -2"x2"2"x2"25.59"x25.98"x4.92"4
E2101 -2"x4"2"x4"51.18"x25.98"x4.92"4
E2101 -1"x4"1"x4"51.18"x12.99"x4.92"4
