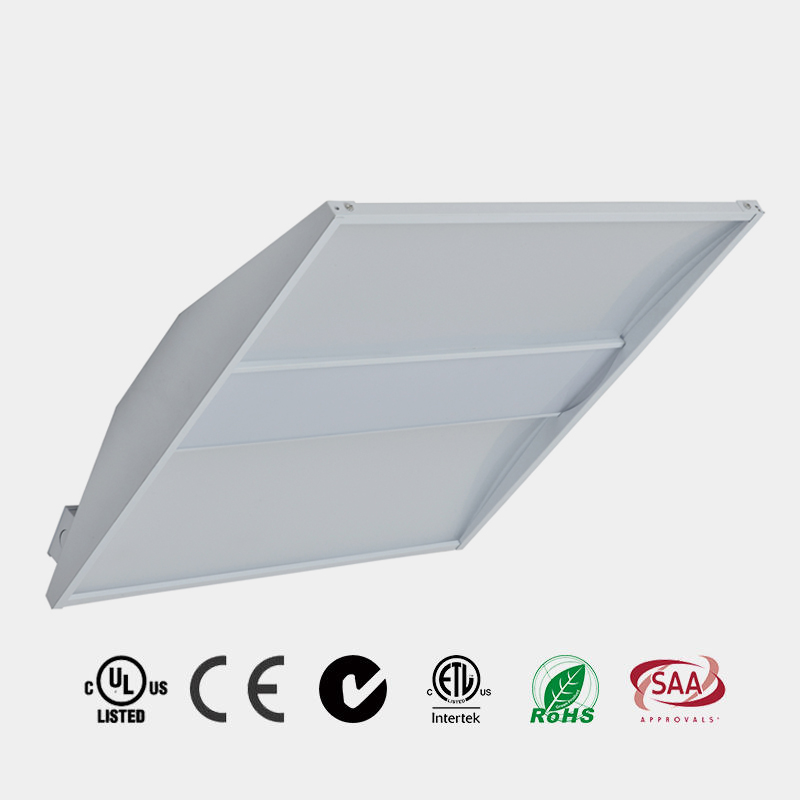

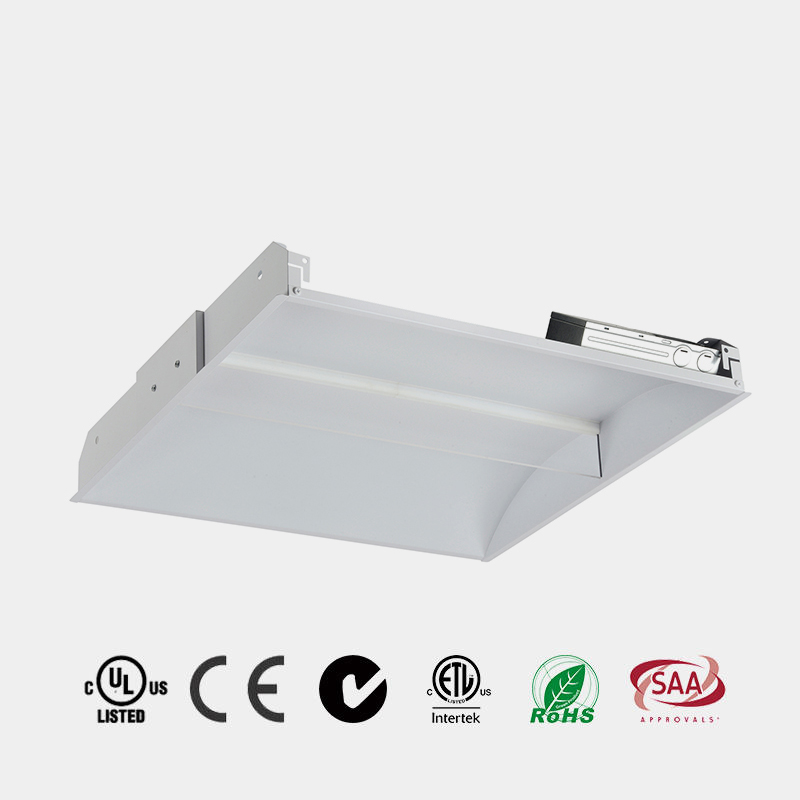

LED Panel Light(LED Troffer) E1907

LED Panel Light(LED Troffer) E1907
  • LED Panel Light(LED Troffer) E1907
  • _DSC1900.jpg
  • 未标题-as.jpg

LED Panel Light(LED Troffer) E1907

Model
HG-L254
MOQ
100 PCS
Payment
T/T,LC
Delivery Time
30-35 working days
Start Port
ZhongShan Port
Certification
UL/CUL,ETL/CETL,SAA,CE


  • ■ MATERIAL
    Die formed of 0.6mm cold-rolled steel body
    All steel surface are painted after fabrication with high gloss backed white matte powder painted.
    High-diffusion light-milky PC diffuser
    Fully recessed luminaire fits standard T-Grid ceilings.

  • ■ LABELS
    CE & ETL Listed, approved for dry/damp location unless otherwise noted

  • ■ DATA
    All electrical components are UL approved, Input Voltage from 100-277V
    Bridgelux SMD2835 LED chips
    120-277V UL/CUL 0-10V LED Driver
    5 years Warranty

  • ■ OPTIONS
    1-Available for dimmable version
    2-Available for emergency version
    3-Available for installing with sensor

Electrical
  •     ETL & DLC listed; With LM79 & LM80;

  •     2'x2':27W / 2'x4': 40W

  •     High luminous efficacy 110 lm/w;

  •     50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.

  •     PF>0.90

  •    driver efficiency>87%;THD<20%;

  •      Installation:  chain mounting

  •    Suitablefor dry/damp location;

  •    Designed for office, conference room

  •    CCT: 4000K & 5000K;

  •    Lifetime: 5 years

Product dimension


Model NoAWatts
HG-L254/DM-XY23.8"23.8"3.15"27W
HG-L254/DM-XXY47.6"23.8"3.1540W
Technical data
Total Input Watt 27W40W
Size2'x2'2'x4'
Calculated L7050,000 hrs
Delivered Lumens 2970 lm4400 lm
Luminaire Efficacy Rating 110 LM/W
Correlated Color Temperature 4000K,4500K,5000K
Color Rendering Index >80
Light distribution
Installation
INSTALLATION FOR RECESSED

1-Drill the holes in the wooden ceiling.

2-Turn off the power,make the wire connection to the quick connector.

3-Turn the light into the opening ceiling.

4-Make sure the light sitting down well to the ceiling frame.

5-The lights sit well on the ceiling frame.

6-The wire connection diagram

INSTALLATION FOR HANGING

1-Drill the holes in the wooden ceiling;
And install the hanging ring into the ceiling.

2-Use a screwdriver to straighten the hanging tabs.

3-Install the Hook or stainless coabe into the hanging tab.

4-Lock the chain/stainess wire into the installed ring or mounting bracket.

5-Turn off the power,make the wire connection to the quick connector.

Warning
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.
1
1
Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.
Applications
Office
Conference Room
