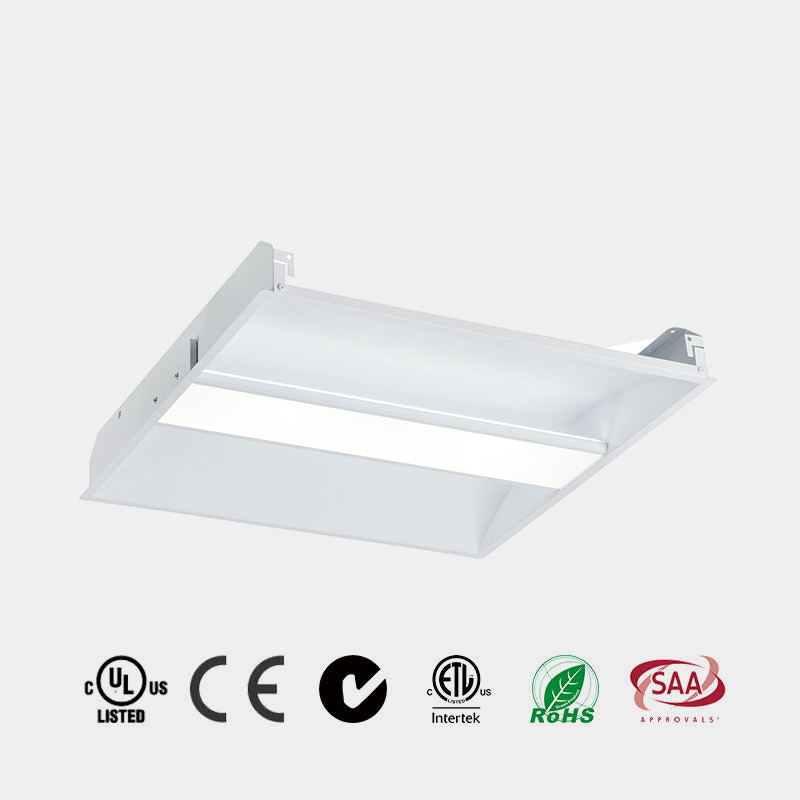

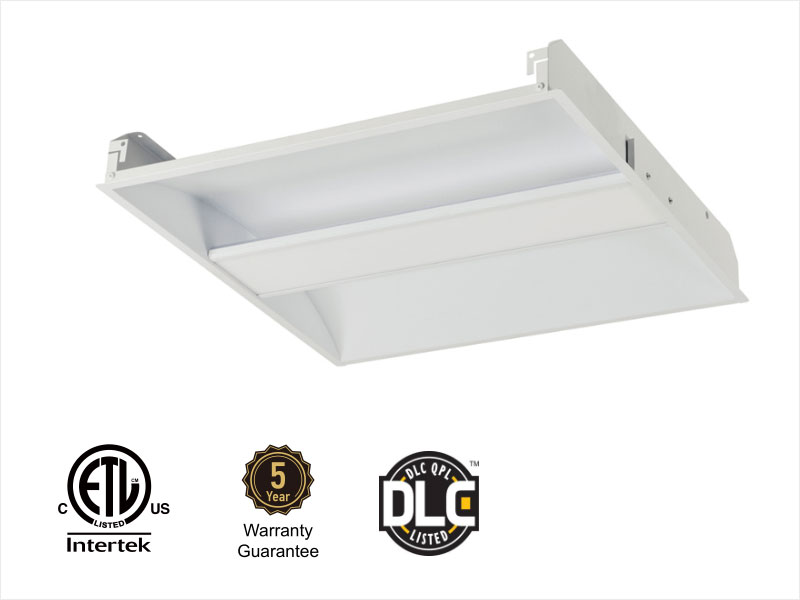

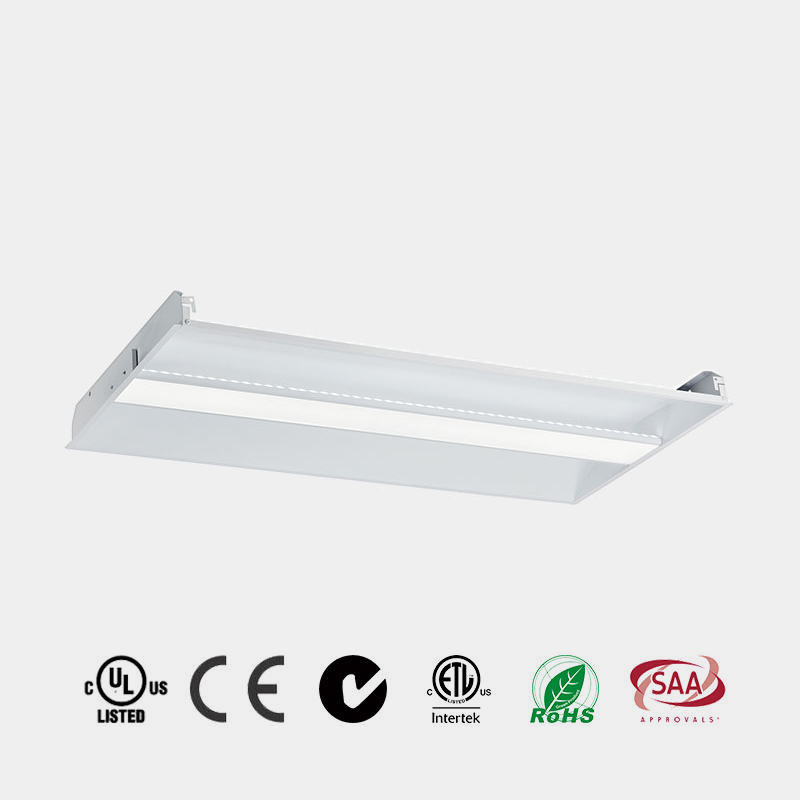

LED Panel Light(LED Troffer)-E1903
B站不支持收货地址
B站不支持库存规格
Model
E1903
MOQ
100 PCS
Payment
T/T, LC
Delivery Time
30-35 working days
Start Port
ZhongShan Port
Certification
UL/CUL, ETL/CETL, SAA, CE
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障



Specification
bg
Model No.PowerInput
Voltage
Input
Current
LxWxH(mm)Luminous
Flux
Luminous
Efficacy
CCTViewing
Angle
RaPFWarranty
E1903-1X440WAC 120-277V0.33A1213x303x754400LM110lm/W3000K
4000K
5000K
>120?>80>0.95 Years
E1903-2X227WAC120-277V0.23A603x603x752970LM
36WAC120-277V0.3A3960LM
E1903-2X440WAC120-277V0.33A1213x603x754400LM
50WAC120-277V0.42A5500LM


Packing/Weight
bg
Model No.Master Carton
LxWxH(mm)
Qty/Ctn
(pcs)
N.W
(KG)
G.W
(KG)
E1903-1X4345x 95x 125013.74.3
E1903-2X2645 x95x 64513.54
E1903-2X4645 x95x 125016.67.5


  • ■ Construction
    Construction
    * Die formed of 0.6mm cold-rolled steel body
    * All steel surface are painted after fabrication with high gloss backed white powder painted.

  • ■ Controls
    *Available for dimmable version
    *Available for emergency version
    *Available for installing with sensor

  • ■ Electrical
    * All electrical components are UL approved, Input Voltage from 120-277V
    * LED Driver: UL/CUL 120-277V 0-10V LED Driver
    * 5 years warranty

  • ■ Dimming
    * ETL listed; With LM79 & LM80;
    * High luminous efficacy 110 lm/w;
    * 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
    * driver efficiency>87%;THD<20%;
    * Installation: Recessed or Suspended * Suitable for dry/damp location * Designed for office, conference room etc.
    * CCT: 3000K-5000K

  • ■ Labels
    * ETL Listed, approved for dry/damp location unless otherwise noted

E1903
bg

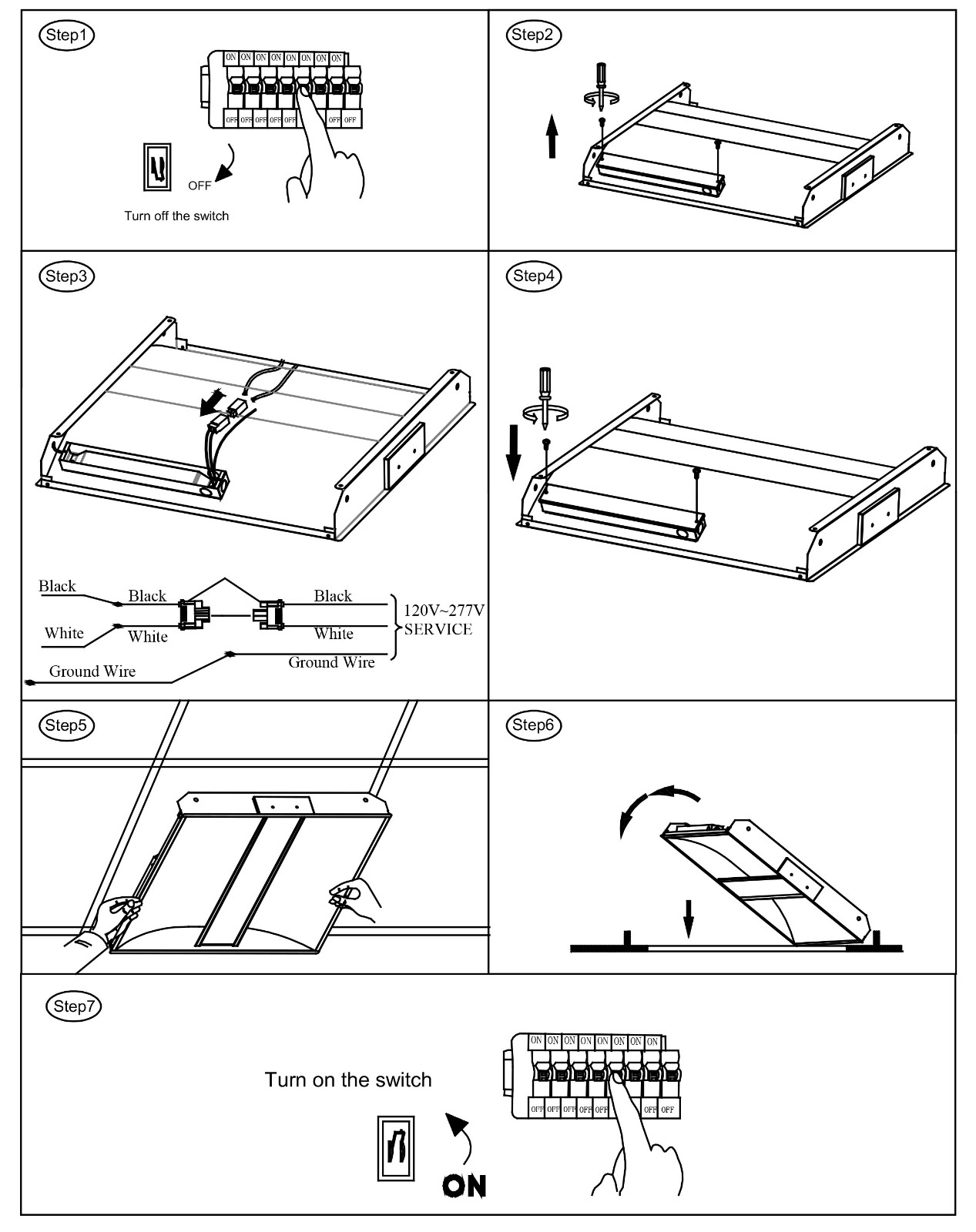

Installation Manual
