LED Linear Light C1801

LED Linear Light C1801
  • LED Linear Light C1801
  • _DSC50a83.jpg
  • _DSC4554.jpg
  • _DSC4553.jpg
  • _DSC5083(1).jpg
  • _DSC5083.jpg

LED Linear Light C1801

MOQ
100 PCS
Payment
T/T,LC
Delivery Time
30-35 working days
Start Port
ZhongShan Port
Certification
UL/CUL,ETL/CETL,SAA,CE


  • ■ CONSTRUCTION
    Die formed of 0.5mm cold-rolled steel body
    All steel surface are painted after fabrication with high gloss backed white matte powder painted.
    High-diffusion Milky PC Diffuser
    Wiring access available in the back of the housing

  • ■ LABELS
    CE & ETL Listed, approved for dry/damp location otherwise noted

  • ■ ELECTRICAL
    All electrical components are VDE approved, Input Voltage: 220-240V/50HZ
    Bridgelux/Hongli SMD2835 LED chips
    220-240V/50HZ Osram/Phillip/Tridonic/ Lifud CE LED Driver
    5 years Warranty

  • ■ OPTIONS
    1-Available for dimmable version
    2-Available for emergency version
    3-Available for installing with sensor


Product features
  •     CE,ETL & DLC listed; With LM79 & LM80;

  •     4ft,23W,33W

  •     High luminous efficacy 110 LM/W

  •      50,000 hours warranty 220-240V/50HZ,120-277V 0-10V Dimmable Osram/Phillip/Tridonic/ Lifud LED Driver

  •     PF>0.90

  •     driver efficiency>87%;THD<20%;

  •      Installation: chain mounting

  •     Suitablefor dry/damp location;

  •      Designed for office,school, shops,hospital and conference room

  •     CCT: 4000K & 5000K;

  •     Lifetime: 5 years

LAMP SIZE
Model NoAWatts
C1801-23W/4ft46.65"5.75"2.67"23W
C1801-33W/4ft46.65"8.18"2.75"33W
ELECTRICAL INFO:
Total Input Watt 23W33W
Size4ft
Calculated L7050,000 hrs
Delivered Lumens 2530 LM3630 LM
Luminaire Efficacy Rating 110 LM/W
Correlated Color Temperature 3000K,3500K,4000K,4500K,5000K
Color Rendering Index >80
IES FILE
INSTALLING
INSTALLATION FOR HANGING

1-Fix the cooper nut into the ceiling by screw

2-lock the stainess wire into the cooper nut.

3-Turn off the power,make the wire connection to the quick connector

INSTALLATION FOR CEILING-MOUNTED

1-Drill the holes into the ceiling

2-Turn off the power,make the wire connection to the quick connector.

3-Fix the Light into the mounting holes

Warning
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.
1
1
Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.

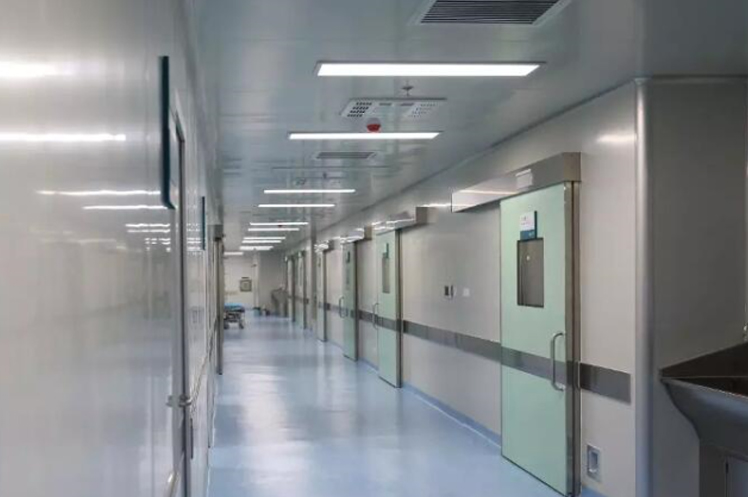

Applications
Office
School/Class Room
Meeting Room
Hospital
