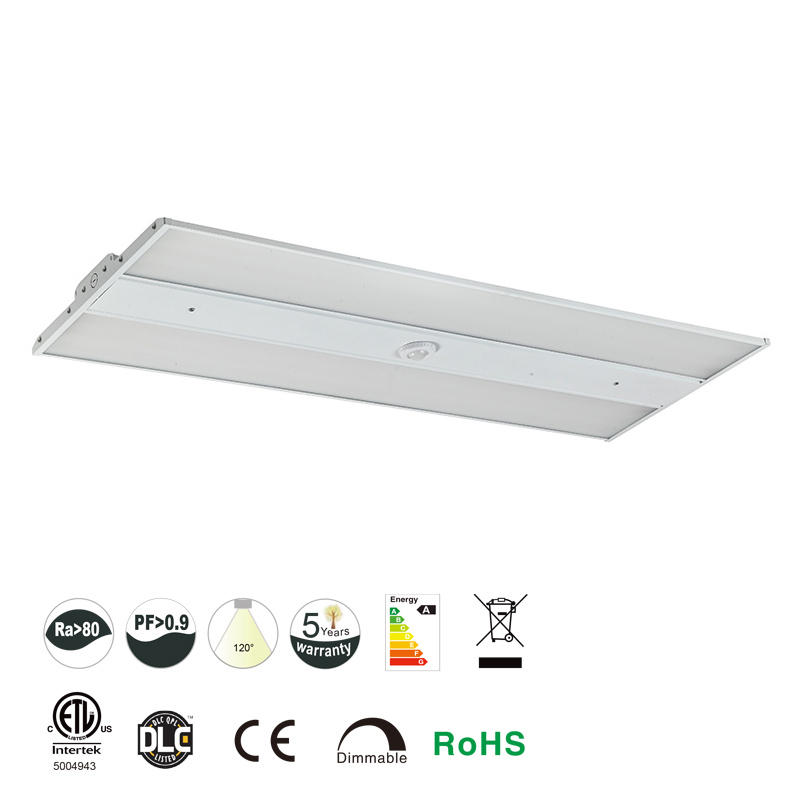

Led Linear High Bay

Features & Benefits

1. 130lm/w for options.
2. Die formed of 0.6mm cold-rolled steel body.
3. 0-10v dimming, universal voltage: 100-277v.
4. Available with suspending installation and surface- omunted installation.
5. High-diffusion light-milky PS diffuser.
6. 5-year warranty.

Product Dimension

这里可以自定义设置

HG-L225-2FT/80W/100W/140W

HG-L225-2FT/165W/220W

HG-L225-4FT/165W/225W

HG-L225-4FT/325W

Model	L×W×H
HG-L225-2FT/80W/100W/140W	600x338x42 (mm)/23.82"x13.3"x1.65"
HG-L225-2FT/165W/220W	600x448x42(mm)/23.82"x17.64"x1.65"
HG-L225-4FT/165W/225W	1160x338x42 (mm)/45.87"x13.3"x1.65"
HG-L225-4FT/325W	1160x448x42 (mm)/45.87"x17.64"x1.65"

Specification

Part No.	Power	Input Voltage	Luminous Flux	Luminous Efficacy	CCT	Viewing Angle	Ra	PF	Warranty
HG-L225-80W/2FT	80W	AC100-277V	10400lm	130lm/W	3000K 3500K 4000K 5000K	120 °	>80	>0.9	5Years
HG-L225-100W/2FT	100W		13000lm
HG-L225-140W/2FT	140W		18200lm
HG-L225-165W/2FT	165W		21450lm
HG-L225-220W/2FT	220W		28600lm
HG-L225-165W/4FT	165W		21450lm
HG-L225-225W/4FT	225W		29250lm
HG-L225-325W/4FT	325W		42250lm

The following multiple functions can be achieved according to customers' requests:

1. CCT options: 3000K,3500K, 4000K, 5000K.

2. Available with external microwave motion sensor.

SPECIFICATION

The Sharkward Bluetooth Passive Infrared sensor is designed for outdoorapplications Integrated sensors capture data that is both processedocally and transmitted over the Sharkward network. enabling a full suite of applications. In addition, the sensor supports Bluetooth Low Energy communication with tags and other BLE devices.

OVERVIEW

The Bluetooth Passive Infrared sensor is a complete sensing and lighting control node powered from its attached light fixture . Sensor information combined with a configurable behavior profile makes the fixture Sensor an integral component of an intelligent lighting control and sensing solution. With integrated wireless communications for data transmission and remote configuration as well as autonomous fixture-level control, this sensor brings advanced lighting automation to a whole new level.

FEATURES AND BENEFITS

Sharkward Fixture Sensor DLC: Meet DLC 5.1 Networked LightingControl Svstem.

Localized Lighting Control: Light-level schedules, preferences, and profiles for each fixture are wirelessly communicated at system setup and stored for continuous operation.

Bluetooth Low Energy : An embedded BLE radio allows the sensor toreceive and transmit beacons aas support communication withting control devices and other sensors.

Occupancy / Vancacy / Manual : A PIR sensor combined with ambient with 3 difference modes as options.

Daylight Harvesting: Captured ambient light information is locally processed to raise and lower light levels based on available daylight.

Room and Zone Control: Pairs with room switches for code-compliant manual-on or auto-off capabSensors can be grouped into zones that share occupancy sensing data and coordinate light control basedon detected motion

Testing Report

Applications

Factory

Warehouse
