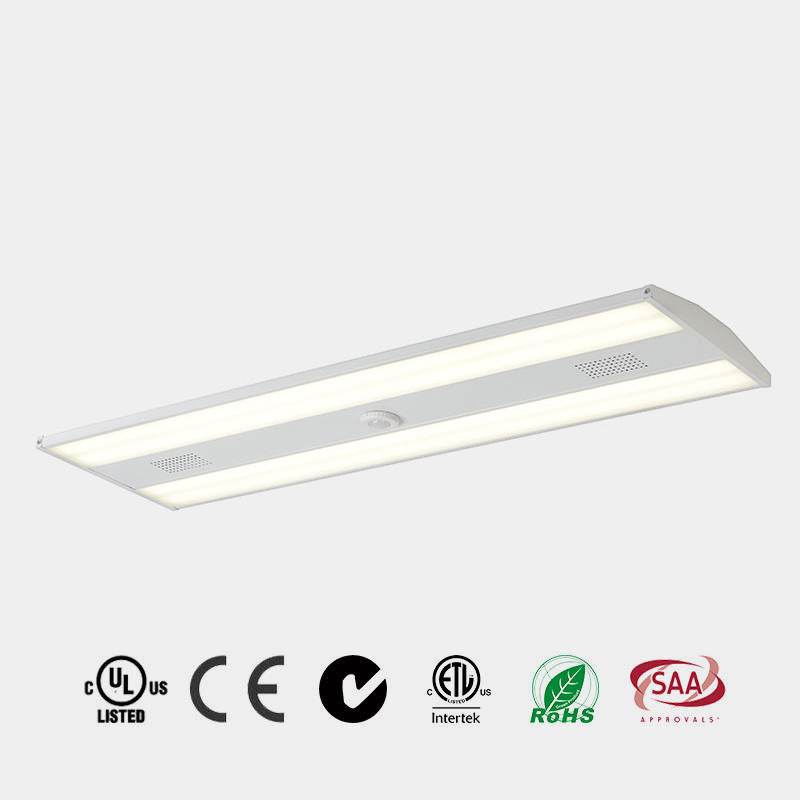

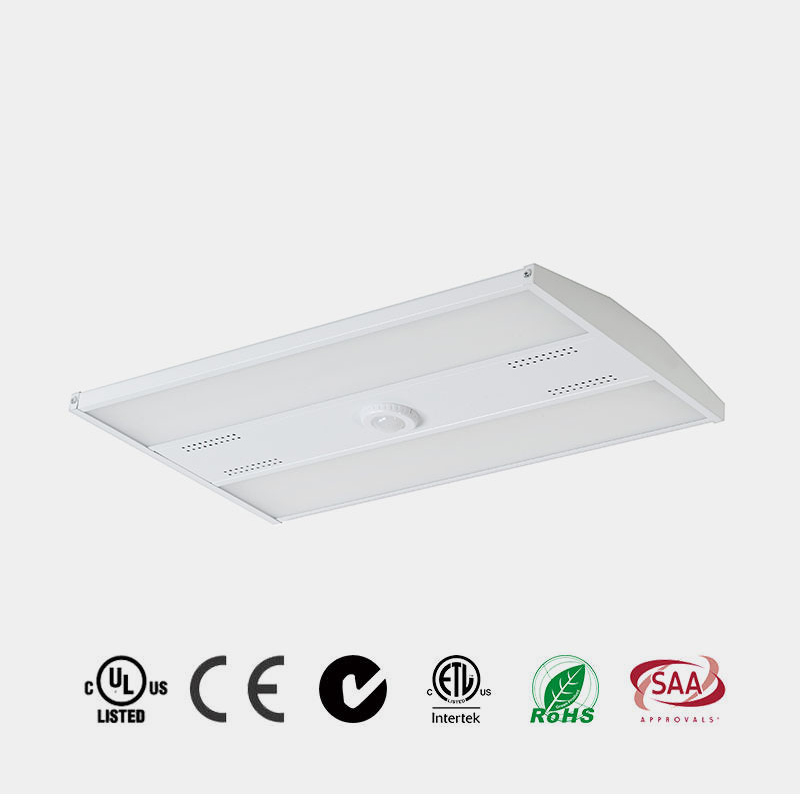

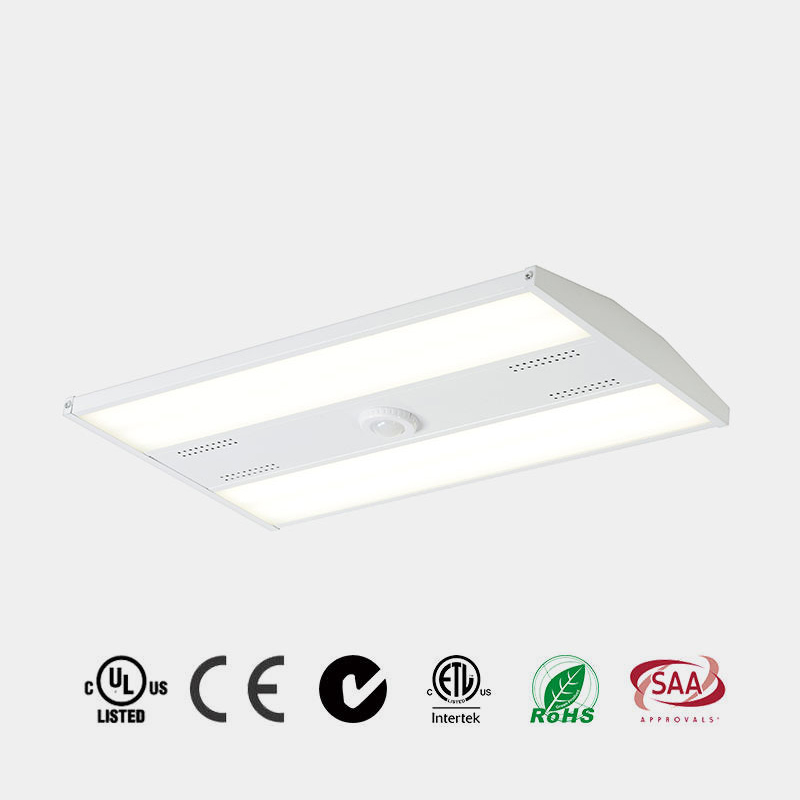

LED LINEAR HIGH BAY
WAREHOUSES/ FACTORY/ GYMNASIUMS/DISPLAY CENTRES
It marries our best LED technologies with our most popular high bay product.
The result is high-performance, configurable LED luminaire.
That is ideal for warehousing, manufacturing,and gymnasiums.
■ Emergency Battery Pack
* Optional factory-installed emergency battery pack in the back plate.
* (nominal) for a minimum of 90 minutes.
■ Controls
* Fixture can be equipped with an occupancy sensor.
* Devices are factory-installed and require minimal labor to set up during fixture installation.
■ Glare Control
* A semi-diffuse acrylic lens is available to cover the emitters and reflectors.Factory- or field-installed.
■ Dimming
* Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.
■ Finishes
* Standard fixture is powder-coated with white color.
■ Optional Wire Guard
* Optional wire guard protects fixture from environmental hazards. Factory- or field-installed.
◪ * ETL & DLC listed; With LM79 & LM80;
◪ * 2ft:100W MAX & 220W MAX available; 4ft: 225W MAX & 325W MAX available;
◪ * High luminous efficacy 130lm/w;
◪ * 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ * PF＞0.90
◪ * Installation: chain mounting
◪ * Suitablefor dry/damp location
◪ * Designedfor warehouses, gymnasiums, and industrial spaces
◪ * CCT Changeable: 3000K, 4000K & 5000K
◪ * Lifetime: 5 years
◪ * driver efficiency＞87%;THD< 20%;
| Model No | A | B | D |
| HG-L225/C-80W | 12.6" | 23.82 | 2.05" |
| HG-L225/C-100W | 12.6" | 23.82 | 2.05" |
| HG-L225/C-140W/2ft | 17.32" | 23.82 | 2.05" |
| HG-L225/C-165W/2ft | 17.32" | 23.82 | 2.05" |
| HG-L225/C-220W/2ft | 17.32" | 23.82 | 2.05" |
| HG-L225/C-165W/4ft | 12.6" | 45.87" | 2.05" |
| HG-L225/C-225W/4ft | 12.6" | 45.87" | 2.05" |
| HG-L225/C-325W/4ft | 17.32" | 45.87" | 2.05" |
| Total Input Watt | 80W/2ft | 100W/2ft | 140W/2ft | 165W/2ft | 165W/4ft | 225W/4ft | 320W/4ft |
| SMD LED Chips Brand | Bridgelux | ||||||
| Calculated L70 | 50,000 hrs | ||||||
| Delivered Lumens | 10400 LM | 1300 LM | 18200 LM | 21450 LM | 21450 LM | 29250 LM | 41600 LM |
| Luminaire Efficacy Rating | 130 LM/W | ||||||
| Correlated Color Temperature | 3000K,4000K,5000K CCT Changeable | ||||||
| Color Rendering Index | >80 | ||||||
