Hospital school dimming US certification 2x4ft 24w 36w 42w 50w led Troffer panel light
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Lighting solutions service:
Project Installation
Type:
Led Troffer panel light
Certification:
ETL,CE, ETL,CE
Light Source:
LED
Input Voltage(V):
120-277V/60Hz, 220-240V/50Hz
Lamp Luminous Flux(lm):
5250
CRI (Ra>):
80
Working Temperature(℃):
-20~60
Working Lifetime(Hour):
50000
IP Rating:
Ip20
Warranty(Year):
5-Year
Place of Origin:
Guangdong, China
Brand Name:
Halcon
Application:
School, Hospital, Office, Library,
Power Supply:
AC
Product Name:
Troffer Led panel light
power:
24w/36w/42w/50w
PF:
0.95
Input voltage:
120-277V/60Hz, 220-240V/50Hz
Material:
Diffuser PC lens Steel Sheet housing
Light source:
2835 LED
LED Driver:
0-10V dimmer LED Driver
warranty:
5 years
optional:
3color tunable 3000K 4000K 5000K
Wattage:
tunable
Luminous Efficacy(lm/w):
125
Product Certification certification
ETL Certified.
UL Certified.

Packaging & Delivery

Selling Units:
Single item
Single package size:
124X64X11.5 cm
Single gross weight:
7.500 kg
Package Type:
led linear highbay
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 15 To be negotiated

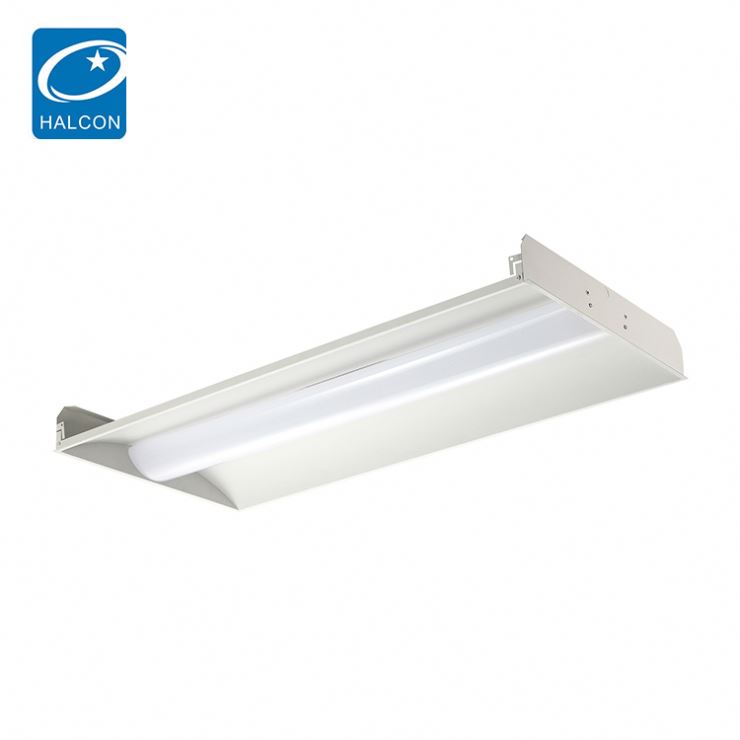

Hospital Corridor dimming Steel Sheet white 24w 36w 42w 50w Troffer Led panel light

Product Description
Model HG-L249-24W/2'' HG-L249-36W/2'' HG-L249-36W/2'x4' HG-L249-42W/2'x4' HG-L249-50W/2'x4'
Power 24w 36w 36w 42w 50w
Product size 605x605x45mm 1204x605x45mm
Input voltage 120-277V/60Hz, 220-240V/50Hz
Certification ETL,CE
Light source LED

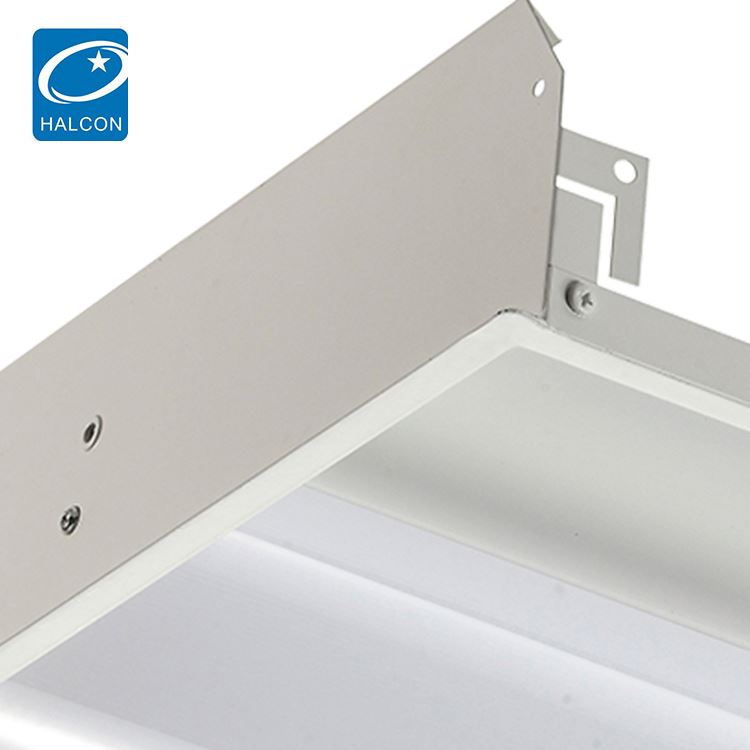

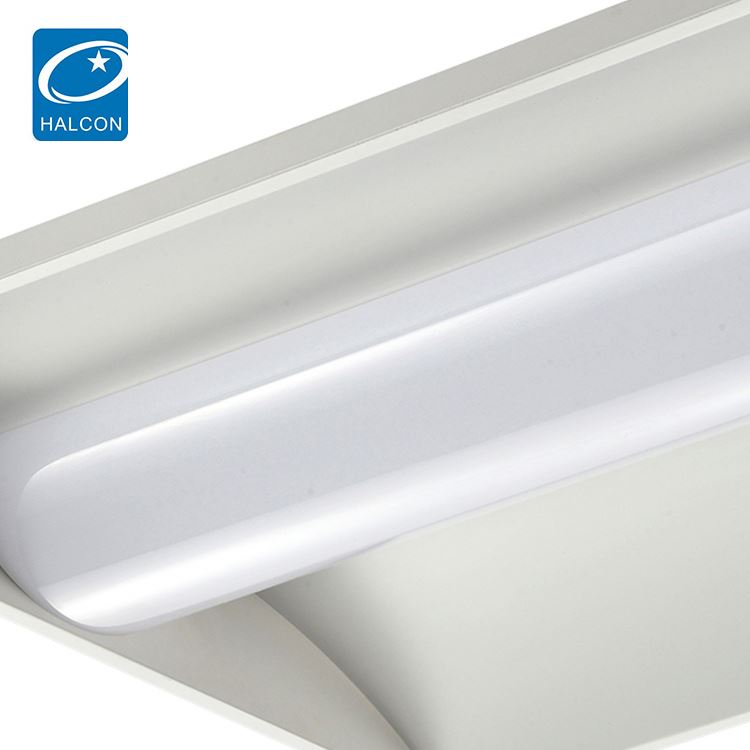

Material Diffuser: Milky PC material. Housing: Steel Sheet with white powder coated
CCT 3000K/4000K/5000K
Installation Surface Mounted, Hanging
Drive Approved LED Driver
PF 0.95
Dimmable  Yes
CRI 80
Rated life 50000

Luminous

efficiency( LM/W)

125 (LM/W)
Beam Angle(°) 105 degree
Application School, Hospital, Corridor, Office, Library, Conference Room

Send your inquiry details and click here for free samples.

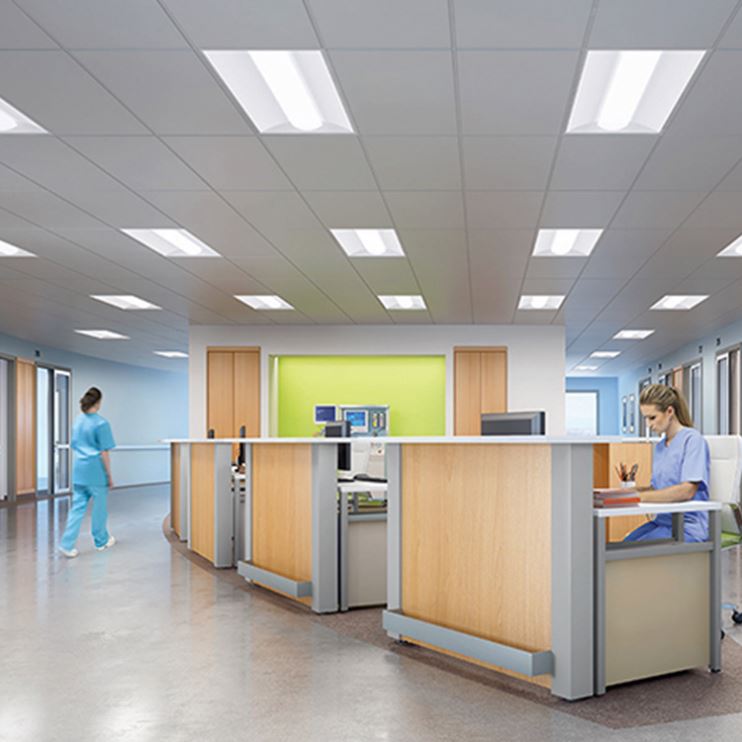

Application

Packaging & Shipping



This product is widely acclaimed owing to its huge market potential. Most of Halcon LED lights bring product warranties that last for 5 years. The product will be served more and more customers for its high consistency in the industry. Most of Halcon LED lights bring product warranties that last for 5 years.
