HG-L206R

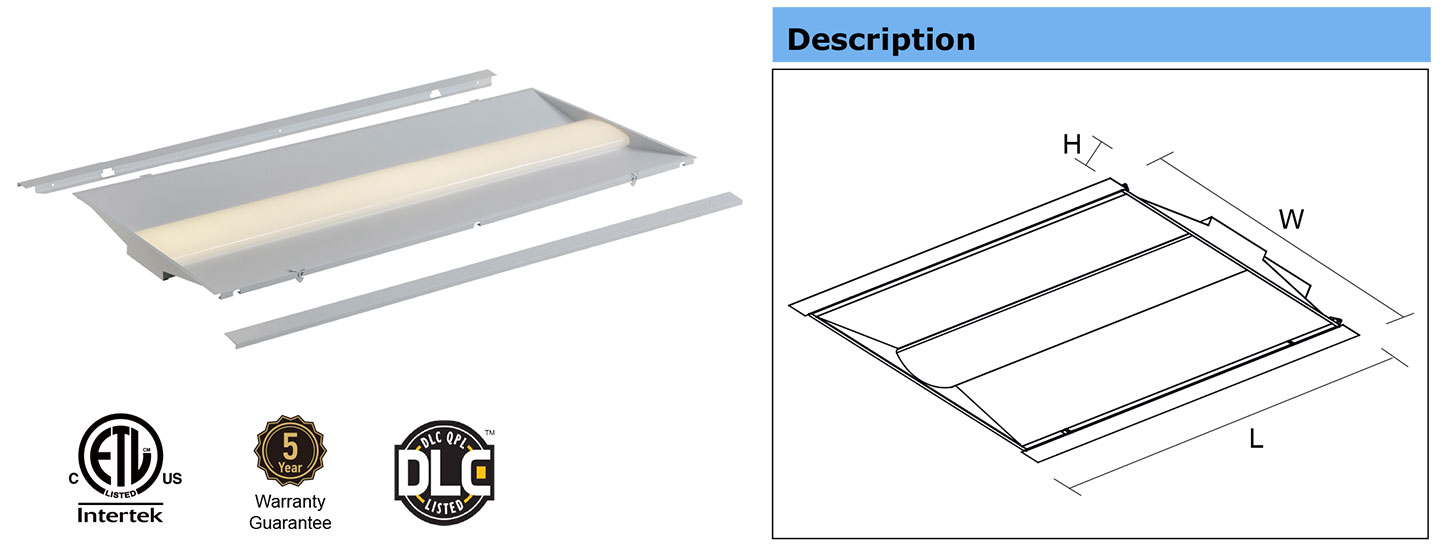

| Model No. | Power | Input Voltage | Input Current | L x W x H (mm) | Luminous Flux | Luminous Efficacy | CCT | Viewing Angle | Ra | PF | Warranty |
| HG-L249R-22 | 36W | AC120-277V | 0.3A | 609 x 609 x 57.5 | 4680LM | 130lm/w | 3000K 4000K 5000K | > 120° | > 80 | > 0.9 | 5 Years |
| HG-L249R-24 | 50W | AC120-277V | 0.42A | 1210 x 609 x 57.5 | 6500LM |
| Model No. | Outer box L x W x H(mm) | Qty/Ctn (pcs) | N . W ( KG ) | G . W ( KG ) |
| HG-L249R-22 | 640 x 155 x 590 | 2 | 5.8 | 7 |
| HG-L249R-24 | 1250 x 155 x 590 | 2 | 12 | 14.5 |
■ CONSTRUCTION
* Die formed of 0.6mm cold-rolled steel body
* All steel surface are painted after fabrication with high gloss backed white powder painted.
* High-diffusion light-milky PC diffuser
■ Electrical
* All electrical components are UL approved, Input Voltage from 120-277V
*LED Driver: UL/CUL 120-277V 0-10V LED Driver
* 5 years warranty
■ OPTIONS
* Available for dimmable version
* Available for emergency version
* Available for installing with sensor
■ Labels
* ETL Listed, approved for dry/damp location unless otherwise noted
◪ * ETL listed; With LM79 & LM80;
◪ * High luminous efficacy 130 lm/w;
◪ * *50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ * driver efficiency ＞87%; THD < 20%

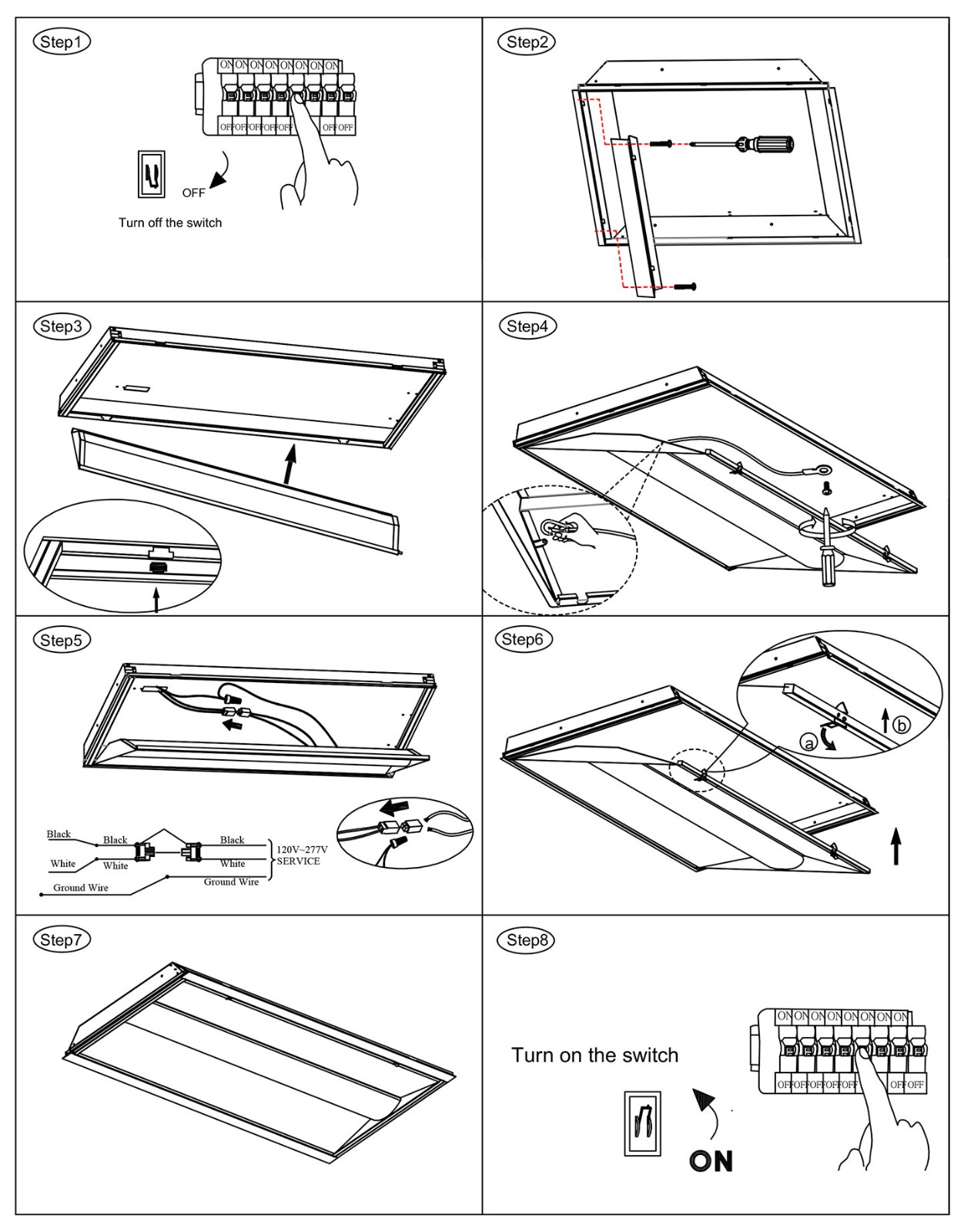

◪ * Installation: Recessed or Suspended
◪ * Suitable for dry/damp location
◪ * Designed for office, conference room etc.
◪ * CCT: 3000K-5000K
