HG-L249R
| Model No. | Power | Input Voltage | Input Current | L xWxH(mm) | Luminous Flux | Luminous Efficacy | CCT | Viewing Angle | Ra | PF | Warranty |
| HG-L206R-244F | 24W | AC120-277V | 0.2A | 1206x115x80 | 3120LM | 13 0lm/w | 3000K 4000K 5000K | >120o | >80 | >0.9 | 5 Years |
| HG-L206R-404F | 40W | AC120-277V | 0.33A | 1206x115x80 | 5200LM | ||||||
| HG-L206R-468F | 46W | AC120-277V | 0.38A | 2438x115x80 | 5980LM | ||||||
| HG-L206R-638F | 63W | AC120-277V | 0.53A | 2438x115x80 | 8190LM | ||||||
| HG-L206R-858F | 85W | AC120-277V | 0.71A | 2438x115x80 | 11050LM |
| Model No. | Outer box L x W x H(mm) | Qty/Ctn (pcs) | N.W ( KG ) | G.W ( KG ) |
| HG-L206R-244F | 1245 x 270 x 220 | 4 | 9.3 | 10.5 |
| HG-L206R-404F | 1245 x 270 x 220 | 4 | 9.3 | 10.5 |
| HG-L206R-468F | 2480 x 270 x 220 | 4 | 17.5 | 19.5 |
| HG-L206R-638F | 2480 x 270 x 220 | 4 | 17.5 | 19.5 |
| HG-L206R-858F | 2480 x 270 x 220 | 4 | 17.5 | 19.5 |
■ CONSTRUCTION
* Die formed of 0.6mm cold-rolled steel body
* All steel surface are painted after fabrication with high gloss backed white powder painted.
* High-diffusion light-milky PC diffuser
■ Electrical
* All electrical components are UL approved, Input Voltage from 120-277V
* LED Driver: UL/CUL 120-277V 0-10V LED Driver
*5 years warranty
■ OPTIONS
* Available for dimmable version
* Available for emergency version
* Available for installing with sensor
■ Labels
* ETL Listed, approved fordry/damplocationunless otherwise noted
◪ * ETL listed; With LM79 & LM80;
◪ * High luminous efficacy 130 lm/w;
◪ * 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ * driver efficiency＞87%;THD<20%;

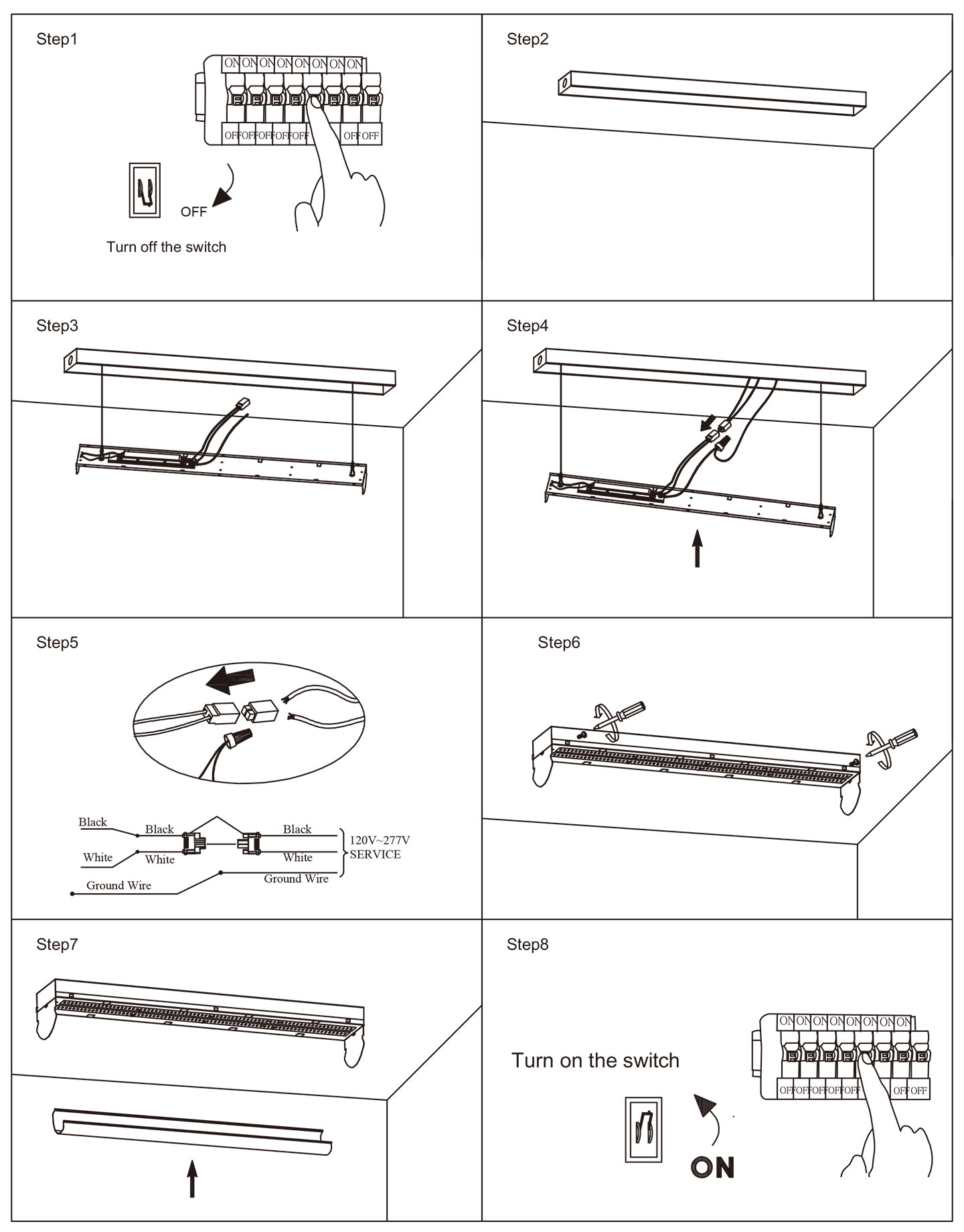

◪ * Installation: Recessed or Suspended
◪ * Suitable for dry/damp location
◪ * Designed for office, conference room etc
◪ * CCT: 3000K-5000K
