1. The newly launched products by ZhongShan Halcon Lighting were all completed by the internationally renowned design company. Steady performance of Halcon LED light help to ensure low maintenance
2. All relative certificates to guarantee quality will be provided by ZhongShan Halcon Lighting. 90% of Halcon LED products are UL, ETL, ENERGY STAR, SAA and FCC certified
3. up and down led light that has been widely used in dimmable led bulbs field has characteristics of dimmable led. All Halcon LED lights are environmentally friendly

■ CONSTRUCTION
Die formed of 0.6mm cold-rolled steel body; Aluminum frame with anodized on surface.
All steel surface are painted after fabrication with high gloss backed white matte powder painted.
Available in 1200 mm and 1500 mm, they can be joined together in a continuous line, to create a sleek look.
High reflectance backed white acrylic paint finished.
High-diffusion light-milky PC diffuser
Fully pendant luminaire fits ceilings.
including presence/absence detection and daylight dimming

■ SENSOR
Fixture can be equipped with an occupancy sensor.
Devices are factory-installed and require minimal labor to set up during fixture installation.
■ DIMMER
Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.
■ LOOKING
Standard fixture is white finishing. available for black color.

Information

◪ ETL & DLC listed; With LM79 & LM80;
◪ 2ft:18W,25W; 4ft: 24W,36W
◪ High luminous efficacy 120 LM/W;
◪ 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ PF＞0.90
◪ driver efficiency＞87%;THD<20%;

◪ Installation: Suspended,Flush mount.
◪ Suitablefor dry/damp location;
◪ Designed for office/ architectrual/ school/ display centres
◪ CCT: 4000K & 5000K;
◪ Lifetime: 5 years

Model dimension

Model No	A	B	C
P1832-18W/2ft	23.85"	6.69"	1.96"
P1832-25W/2ft	23.85"	6.69"	1.96"
P1832-30W/4ft	47.48"	6.69"	1.96"
P1832-36W/4ft	47.48"	6.69"	1.96"

Spec Sheet

Total Input Watt	18W	25W	30W	36W
SMD LED Chips Brand	2ft	2ft	4ft	4ft
Calculated L70	50,000hrs
Delivered Lumens	1980 lm	2750 lm	3300 lm	3960 lm
Luminaire Efficacy Rating	110 LM/W
Correlated Color Temperature	3000K,4000K,5000K
Color Rendering Index	>80

Light distributing

Installation

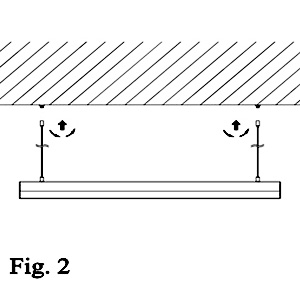

INSTALLATION FOR HANGING

1-Fix the cooper nut into the ceiling by screw

2-lock the stainess wire into the cooper nut.

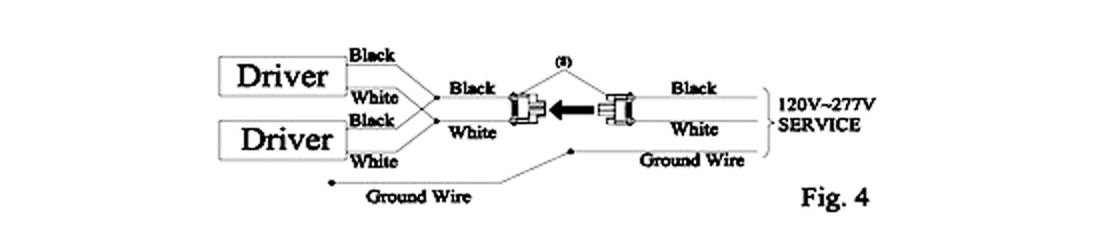

3-Turn off the power,make the wire connection to the quick connector

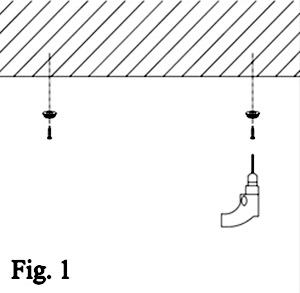

INSTALLATION FOR CEILING-MOUNTED

1-Fix the mounting holes into the ceiling by screw

2-lock the stainess bracket into the holes.

3-Snap in the lights into the mounting bracket

Warning

The installation and maintenance must be completed by electricians or professionals.

Please cut off the power before installation and maintenance.

The thermally insulating material is not allowed to cover the fixture.

Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.

Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.
