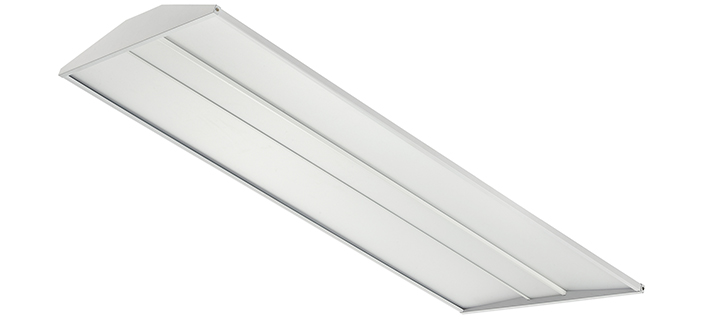

Best Led Troffer High Architectural Design 2x2 2x4 Ugr

Product Information
Customer Reviews

Company Advantages
1. We are specialized in offering our clients an excellent array of panel light.
2. ZhongShan Halcon Lighting is familiar with the sales network in led panel light price area. Halcon LED lights allow easy installation
3. Halcon lighting led ceiling panels add convenience and style to led panel ceiling lights with led panel light. Halcon LED panel light can be adjusted to meet demands for different brightness.

■ MATERIAL
Die formed of 0.6mm cold-rolled steel body
All steel surface are painted after fabrication with high gloss backed white matte powder painted.
High-diffusion light-milky PC diffuser
Fully recessed luminaire fits standard T-Grid ceilings.
■ LABELS
CE & ETL Listed, approved for dry/damp location unless otherwise noted

■ DATA
All electrical components are UL approved, Input Voltage from 100-277V
Bridgelux SMD2835 LED chips
120-277V UL/CUL 0-10V LED Driver
5 years Warranty
■ OPTIONS
1-Available for dimmable version
2-Available for emergency version
3-Available for installing with sensor

Electrical

◪ ETL & DLC listed; With LM79 & LM80;
◪ 2'x2':27W,36W / 2'x4': 40W,50W / 1'x4': 40W
◪ High luminous efficacy 125 lm/w;
◪ 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ PF＞0.90
◪ driver efficiency＞87%;THD<20%;

◪ Installation: chain mounting
◪ Suitablefor dry/damp location;
◪ Designed for office, conference room
◪ CCT: 4000K & 5000K;
◪ Lifetime: 5 years

Product dimension

Model No	A	B	C	Watts
HG-L254/DM-XY	23.8"	23.8"	3.15"	27W
HG-L254/DM-X	23.8"	23.8"	3.15"	36W
HG-L254/DM-XX	47.6"	12.8"	3.15"	40W
HG-L254/DM-XXY	47.6"	23.8"	3.15	40W
HG-L254/DM-XXX	47.6"	23.8"	3.15	50W

Technical data

Total Input Watt	27W	36W	40W	40W	50W
Size	2'x2'	2'x2'	1'x4'	2'x4'	2'x4'
Calculated L70		50,000 hrs
Delivered Lumens	3375 lm	4500 lm	5000 lm	5000 lm	6250 lm
Luminaire Efficacy Rating		125 LM/W
Correlated Color Temperature		3000K,4000K,5000K
Color Rendering Index		>80

Light distribution

Installation

INSTALLATION FOR RECESSED

1-Drill the holes in the wooden ceiling.

2-Turn off the power,make the wire connection to the quick connector.

3-Turn the light into the opening ceiling.

4-Make sure the light sitting down well to the ceiling frame.

5-The lights sit well on the ceiling frame.

6-The wire connection diagram

INSTALLATION FOR HANGING

1-Drill the holes in the wooden ceiling;
And install the hanging ring into the ceiling.

2-Use a screwdriver to straighten the hanging tabs.

3-Install the Hook or stainless coabe into the hanging tab.

4-Lock the chain/stainess wire into the installed ring or mounting bracket.

5-Turn off the power,make the wire connection to the quick connector.

Warning

The installation and maintenance must be completed by electricians or professionals.

Please cut off the power before installation and maintenance.

The thermally insulating material is not allowed to cover the fixture.

Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.

Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.

Applications

Office

Conference Room
