1. Most of Halcon LED lights bring product warranties that last for 5 years. crystal pendant lighting led chandelier offered by Halcon led lighting are used for led pendant light fixtures.
2. The fame of Halcon lighting is widely increasing for its high quality pendant led light. Halcon LED lights feature good shock resistance
3. Furthermore, apart from the considerate service, Halcon lighting also focuses on the quality of hanging pendant lights. Low energy consumption is achieved on Halcon LED lights
4. Nice package ensures Halcon LED lights will not be easily damaged during transportation. Halcon lighting led hanging lights,square pendant light features for better energy saving and low cost.

■ CONFERENCE ROOM/ LIBRARY/ SHOPPING MALL

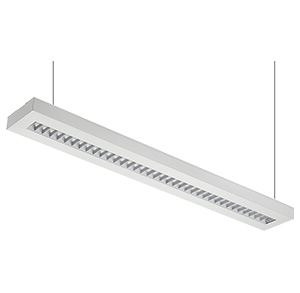

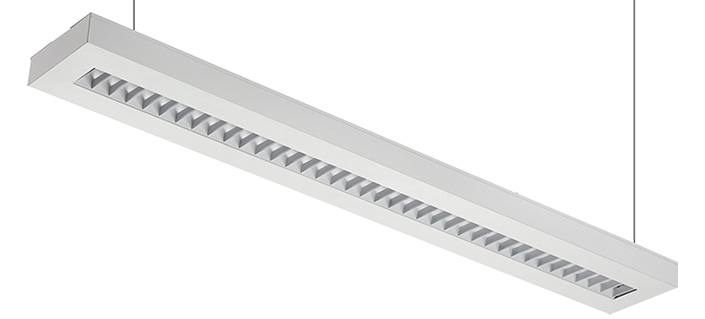

The Suspension lights features a direct and indirect light, milky white lens with 100 degress beam spread.
Available in White, black and anodizing finish options.
Available in 1200 mm and 1500 mm, they can be joined together in a continuous line, to create a sleek look.
It is available with lumen packages ranging from 2600 lm to 6700 lm, in colour temperatures of 3000K or 4000K
The IP40 rating offers extra protection for school applications.
The special optical design achieves high efficacy, and even more energy can be saved thanks to control options
including presence/absence detection and daylight dimming

■ GEAR TRAY
Fixture can be equipped with an occupancy sensor.
Devices are factory-installed and require minimal labor to set up during fixture installation.
■ DRIVERS
Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.
■ COLOR
Standard fixture is anodized on surface,also available for white and black color

Product features

◪ ETL & DLC listed; With LM79 & LM80;
◪ 2ft:18W,25W; 4ft: 24W,36W
◪ High luminous efficacy 120 LM/W;
◪ 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ PF＞0.90
◪ driver efficiency＞87%;THD<20%;

◪ Installation: Suspended,Flush mount.
◪ Suitablefor dry/damp location;
◪ Designed for office/ architectrual/ school/ display centres
◪ CCT: 4000K & 5000K;
◪ Lifetime: 5 years

SIZE

Model No	A	B	C
P1835-18W/2ft	23.85"	6.69"	1.96"
P1835-25W/2ft	23.85"	6.69"	1.96"
P1835-30W/4ft	47.48"	6.69"	1.96"
P1835-36W/4ft	47.48"	6.69"	1.96"

Watts & Lumen

Total Input Watt	18W	25W	30W	36W
SMD LED Chips Brand	2ft	2ft	4ft	4ft
Calculated L70	50,000hrs
Delivered Lumens	1980 lm	2750 lm	3300 lm	3960 lm
Luminaire Efficacy Rating	110 LM/W
Correlated Color Temperature	3000K,4000K,5000K
Color Rendering Index	>80

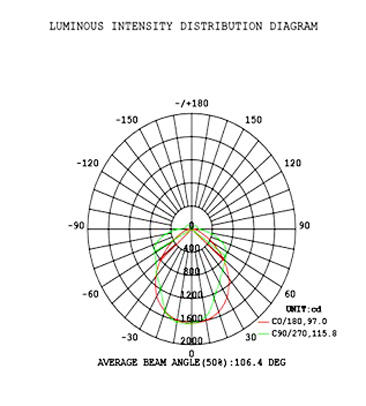

Light distribution

Installation

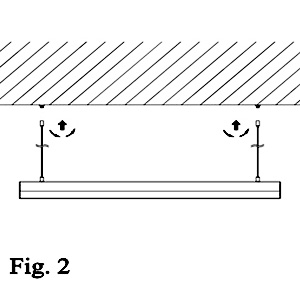

INSTALLATION FOR HANGING

1-Fix the cooper nut into the ceiling by screw

2-lock the stainess wire into the cooper nut.

3-Turn off the power,make the wire connection to the quick connector

INSTALLATION FOR CEILING-MOUNTED

1-Fix the mounting holes into the ceiling by screw

2-lock the stainess bracket into the holes.

3-Snap in the lights into the mounting bracket

Warning

The installation and maintenance must be completed by electricians or professionals.

Please cut off the power before installation and maintenance.

The thermally insulating material is not allowed to cover the fixture.

Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.

Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.

Applications

Office

Conference Room
