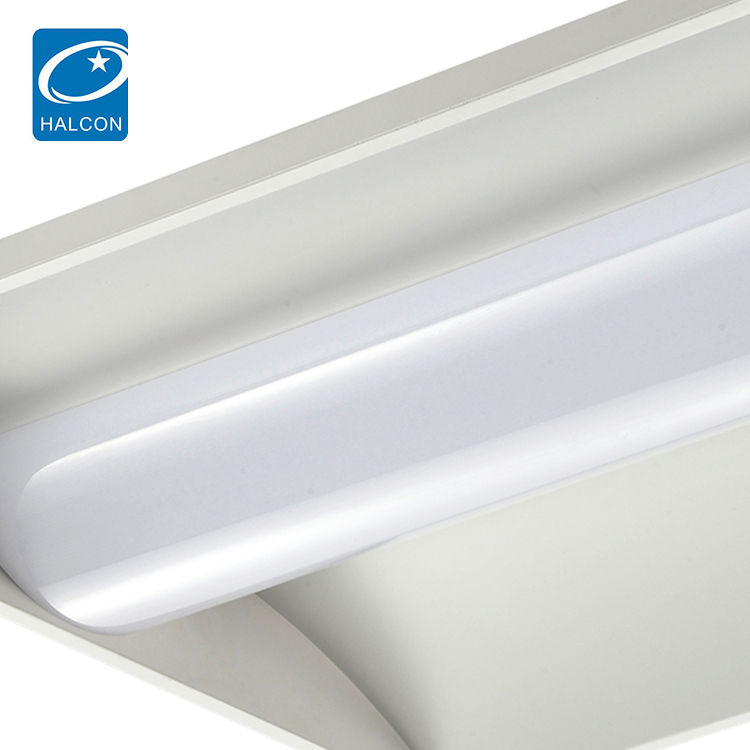

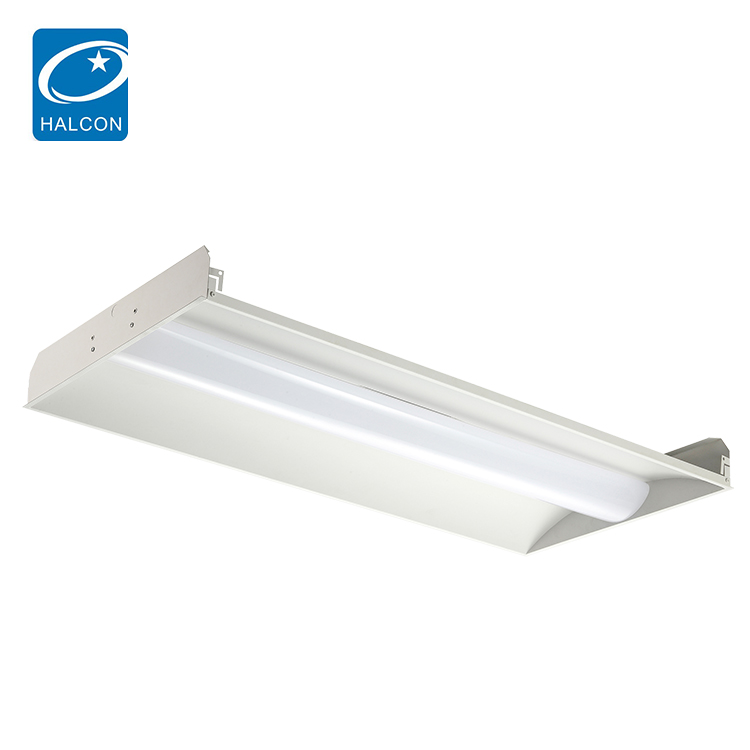

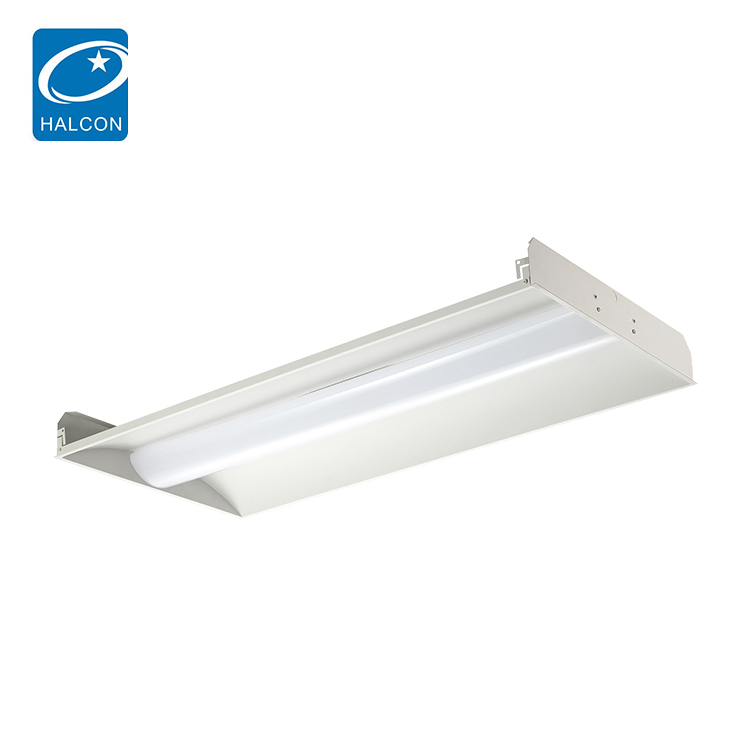

Energy saving SMD surface mounted 24w 36w 42w 50w Led Troffer panel light
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Lighting solutions service:
Project Installation
Type:
Led Troffer panel light
Certification:
ETL,CE, ETL,CE
Light Source:
LED
Input Voltage(V):
120-277V/60Hz, 220-240V/50Hz
Lamp Luminous Flux(lm):
3000
CRI (Ra>):
80
Working Temperature(℃):
-20~60
Working Lifetime(Hour):
50000
IP Rating:
Ip20
Warranty(Year):
5-Year
Place of Origin:
Guangdong, China
Brand Name:
Halcon
Application:
School, Hospital, Corridor, Office, Library, Conference Room, School, Hospital, Corridor, Office, Library, Conference Room
Power Supply:
AC
Product Name:
SMD surface mounted 24w 36w 42w 50w Led Troffer panel light
power:
24w/36w/42w/50w
PF:
0.95
Input voltage:
120-277V/60Hz, 220-240V/50Hz
Material:
Diffuser: PC material. Housing: Steel Sheet with white powder coated
Light source:
LED
LED Driver:
Approved LED Driver
warranty:
5 years
Luminous Efficacy(lm/w):
125
Product Certification certification
ETL Certified.

Packaging & Delivery

Selling Units:
Single item
Single package size:
124X64X11.5 cm
Single gross weight:
7.500 kg
Package Type:
led linear highbay
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 To be negotiated

Energy saving SMD surface mounted 24w 36w 42w 50w Led Troffer panel light

Product Description
ModelHG-L249-24W/2'x2'HG-L249-36W/2'x2'HG-L249-36W/2'x4'HG-L249-42W/2'x4'HG-L249-50W/2'x4'
Power24w36w36w42w50w
Product size605x605x45mm1204x605x45mm
Input voltage120-277V/60Hz, 220-240V/50Hz
CertificationETL,CE
Light sourceLED
MaterialDiffuser: Milky PC material. Housing: Steel Sheet with white powder coated
CCT3000K/4000K/5000K
InstallationSurface Mounted, Hanging
DriveApproved LED Driver
PF0.95
Dimmable Yes
CRI80
Rated life50000

Luminous

efficiency( LM/W)

125 (LM/W)
Beam Angle(°)105 degree
ApplicationSchool, Hospital, Corridor, Office, Library, Conference Room

Send your inquiry details and click here for free samples.

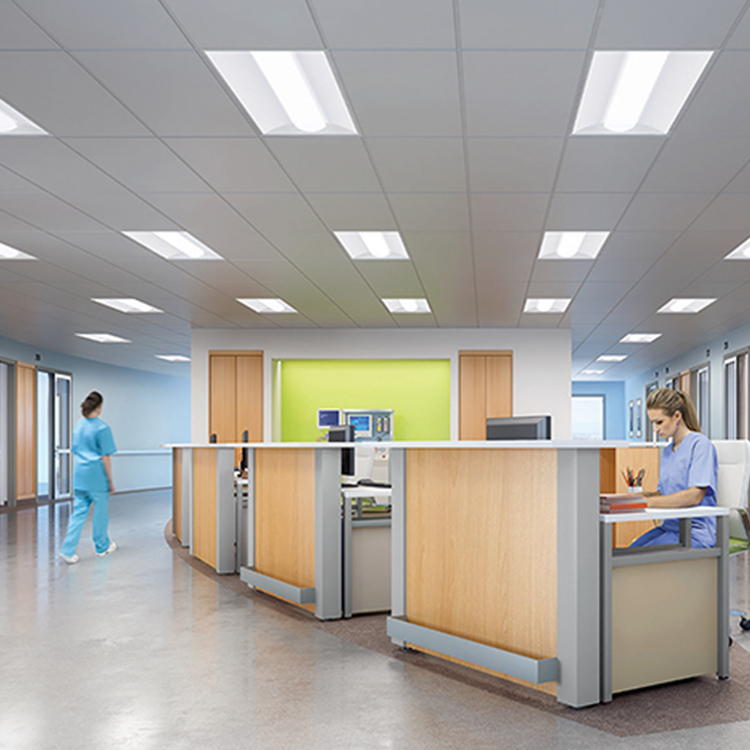

Application

Packaging & Shipping



The product not only meets people's needs in terms of design and visual aesthetics but also is safe and durable, always meeting consumer expectations. Halcon LED lights are protected from overpowering, overheating and electrical shorting. People don't have to put up with poor foot health as a result of poor quality shoes. This product can greatly improve people's foot health. Halcon LED lights are protected from overpowering, overheating and electrical shorting.
