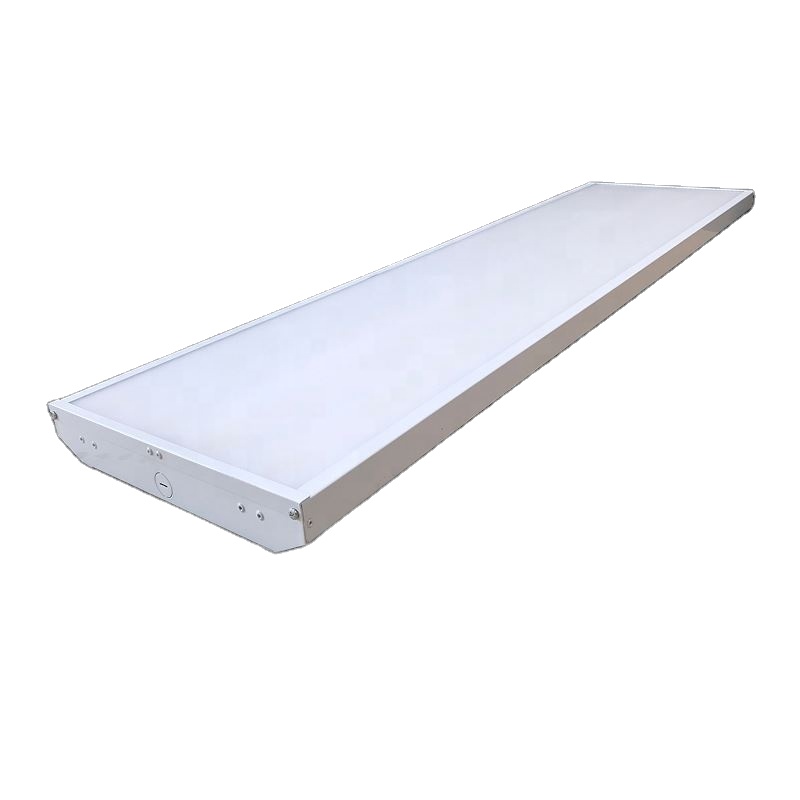

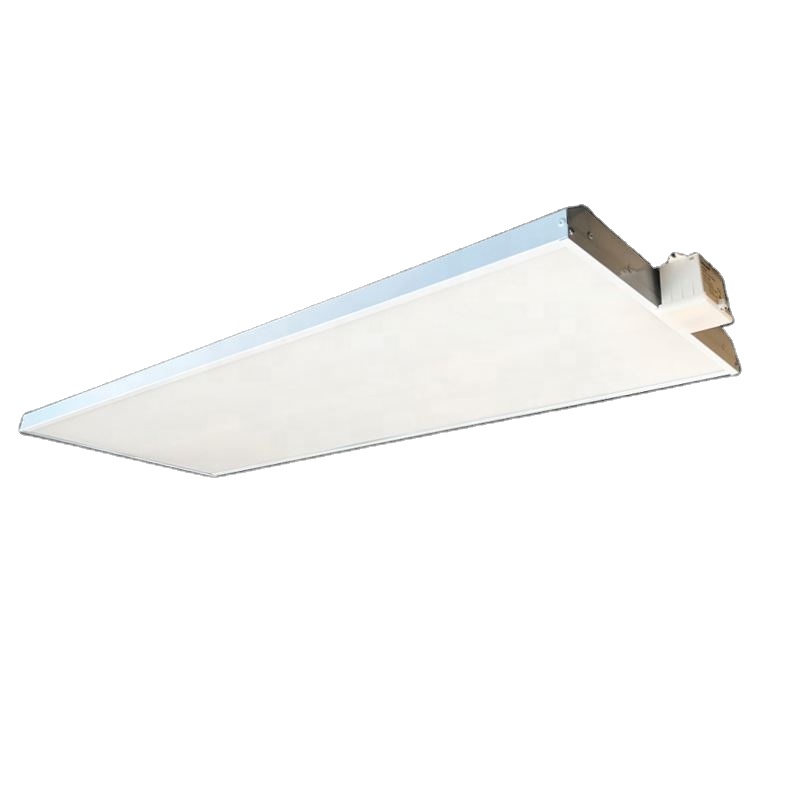

2020 New Hanging ETL 130Lm/W LED Linear High Bay Light for warehouse using 80W~325W

B站不支持收货地址

B站不支持库存规格

B站不支持优惠卷

Inquire Online
download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

Overview

Quick Details

Color Temperature(CCT):: 6000K (Daylight Alert)

Lamp Luminous Efficiency(lm/w):: 110

Color Rendering Index(Ra):: 80

Support Dimmer:: yes

Lighting solutions service:: Project Installation

Lifespan (hours):: 50000

Working Time (hours):: 50000

Place of Origin:: Guangdong, China

Light Source:: LED

Input Voltage(V):: 120-277V

Lamp Luminous Flux(lm):: 42250

CRI (Ra>):: 80

Working Temperature(℃):: -40+40

Working Lifetime(Hour):: 50000

IP Rating:: Ip44

Certification:: VDE, ETL

Warranty(Year):: 5

Brand Name:: Halcon

Model Number:: HG-225

Application:: Garden, Energy storage, Garage Door,warehouse,

Power Supply:: AC

Product name:: LED Linear High Bay

Wattage:: 80W,140W,165W,220,225W,325W

installation:: Surface mounted or hanging

MOQ:: 100PCS

certificate:: CUL ROHS CE

Color Temperature:: 4000-4500K/5500-6000K

input voltage:: 100-277V

light source:: LED

Feature:: Emergeny version

Product Certification

ETL Certified.

UL Certified.

Packaging & Delivery

Selling Units:: Single item

Single package size:: 70X80X40 cm

Single gross weight:: 45.000 kg

Package Type:: 1 fixture be packed into 1 carton.

Lead Time :

Quantity(Pieces)	1 - 100	>100
Est. Time(days)	15	To be negotiated

2019 New Hanging ETL 130Lm/W LED Linear High Bay Light for warehouse using 80W~325W

WAREHOUSES/ FACTORY/ GYMNASIUMS/DISPLAY CENTRES

It marries our best LED technologies with our most popular high bay product.

The result is high-performance,configurable LED luminaire.

That is ideal for warehousing, manufacturing,and gymnasiums.

ADVANCED OPTICS

Narrow and wide distributions available to meet both horizontal and vertical light level requirements.

Reflectors feature precision-formed optics utilizing premium materials.

EMERGENCY BATTERY PACK

Optional factory-installed emergency battery pack in the back plate.

(nominal) for a minimum of 90 minutes.

CONTROLS

Fixture can be equipped with an occupancy sensor.

Devices are factory-installed and require minimal labor to set up during fixture installation.

DIMMING

Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.

FINISHES

Standard fixture is powder-coated with white color.

GLARE CONTROL

A semi-diffuse acrylic lens is available to cover the emitters and reflectors.Factory- or field-installed.

OPTIONAL WIRE GUARD

Optional wire guard protects fixture from environmental hazards. Factory- or field-installed.

PRODUCT FEATURES

* ETL & DLC listed; With LM79 & LM80;

* 2ft:100W MAX & 220W MAX available; 4ft: 225W MAX & 325W MAX available;

* High luminous efficacy 130lm/w;

* 50,000 hours warranty 0-10V listed LED Driver, Flicking free.

* PF>0.90

* driver efficiency>87%;THD<20%;

* Installation: chain mounting

* Suitablefor dry/damp location;

* Designedfor warehouses, gymnasiums, and industrial spaces;

* CCT: 4000K & 5800K;

* Lifetime: 5 years

photometric curves:

FEATURES:

* , Advance HF electronic ballast or other brand is available.

* Voltage for 120V/60HZ, 120-277V/ 60HZ, 347V/ 60Hz

* Available for T5 & T8 fluorescent lamps or LED Tubes.

* Available for 4 lamps, 6 lamps & 8 lamps

* UP to 60% energy saving compaed to equivalent metal halide luinaire

* Wide beam lighting distribution for generbal area lighting.

* Continuous row-mounting capability

* Wireguard hinges for easy maintanance.
